Installing Switch For Central Locking System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit switch for central locking system -2-  into the door panel.
  2. Press switch -2-  in carefully until the spring clamps engage securely.
  3. Connect electric plug connection -1-  until the connector engages securely.

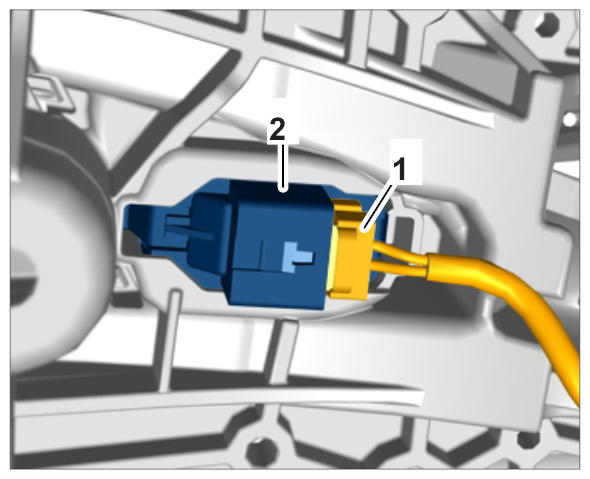

    4. Fig 1: Identifying Central Locking System Into Door Panel
    G09939511Courtesy of PORSCHE CARS NORTH AMERICA, INC.
