Installing Door Arrester

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Position door arrester.
Tighten fastening screws for door -2- to Tightening torque 9 Nm (6.5 ftlb.) .

Fig 1: Identifying Door Arrester Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw for A-pillar -1- to Tightening torque 30 Nm (22 ftlb.) .

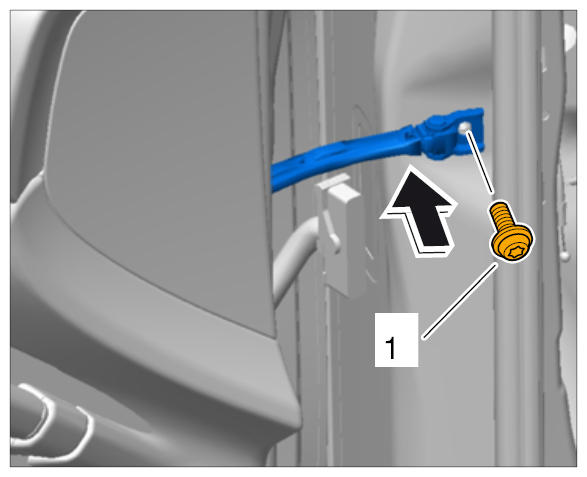

Fig 2: Securing Door Arrester
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
