Technical Values

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for door hinge Item 5 Tightening torque 23 Nm (17 ftlb.)

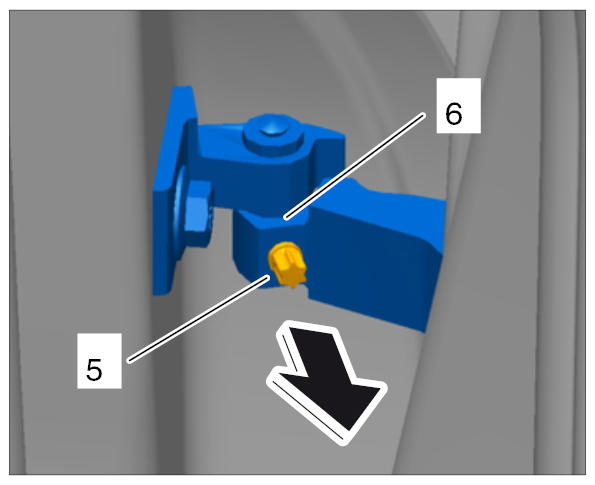

G09939463

Loosening fastening screws for hinge connection
Fastening screw securing door arrester to A-pillar Item 4 Tightening torque 30 Nm (22 ftlb.)

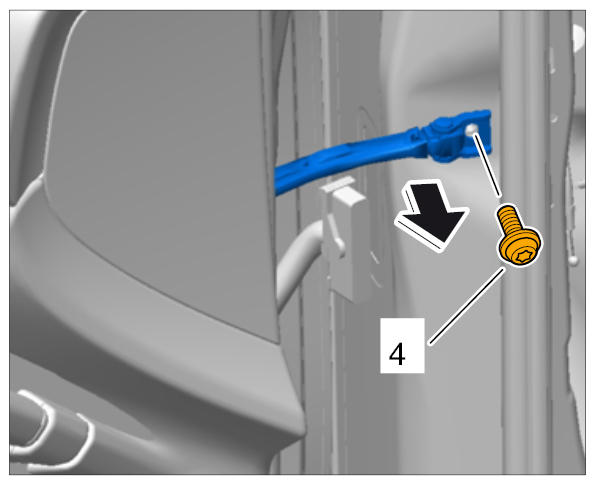

G09939464

Unscrewing fastening screw on door arrester
