Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

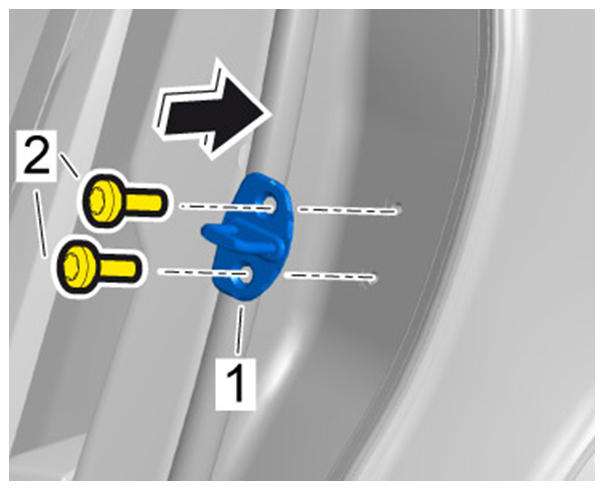

| Fastening screws for lock peg | Item 2 | Tightening torque | 25 Nm (19 ftlb.) | ||
|
Installing lock peg |
|||||

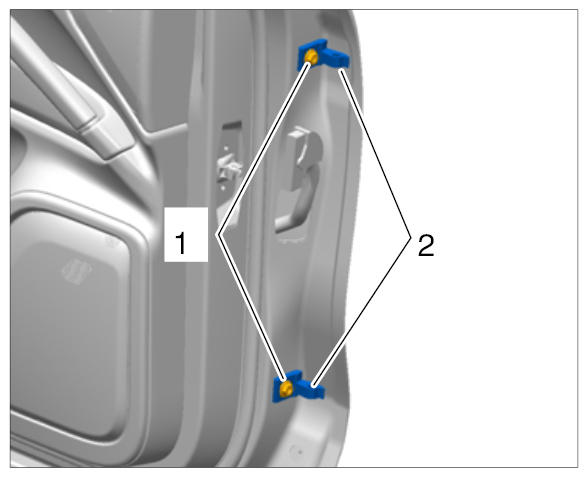

| Fastening screw securing door hinge to door | Item 1 | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Front door hinge |
|||||

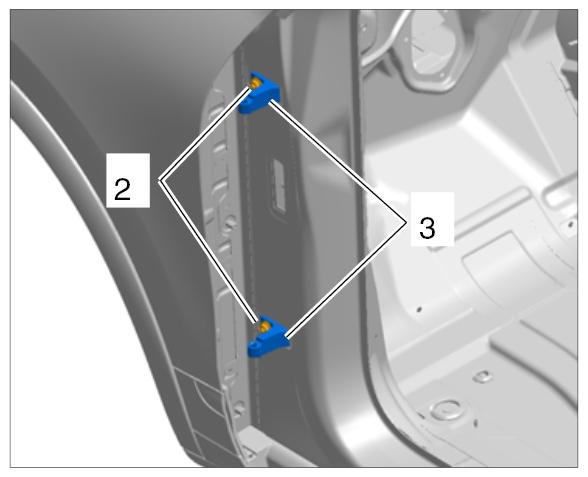

| Fastening screw securing door hinge to outer A-pillar | Item 2 | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Door hinge on body side, outer |
|||||

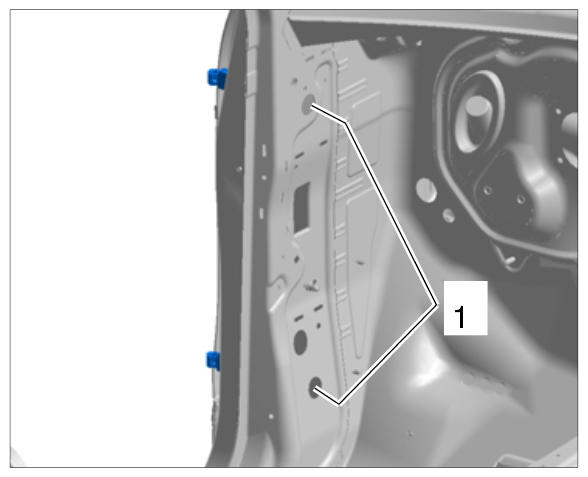

| Fastening screw securing door hinge to inner A-pillar | Item 1 | Tightening torque | 50 Nm (37 ftlb.) | ||
|
Loosening rear door hinge on body side at the inside |
|||||
