Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

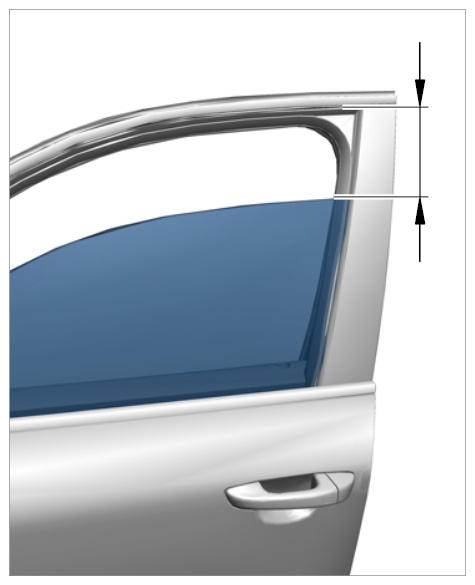

| Front door window opening | Adjustment value | 160 mm | +/-2 mm | ||
|
Guiding down front door window |
|||||

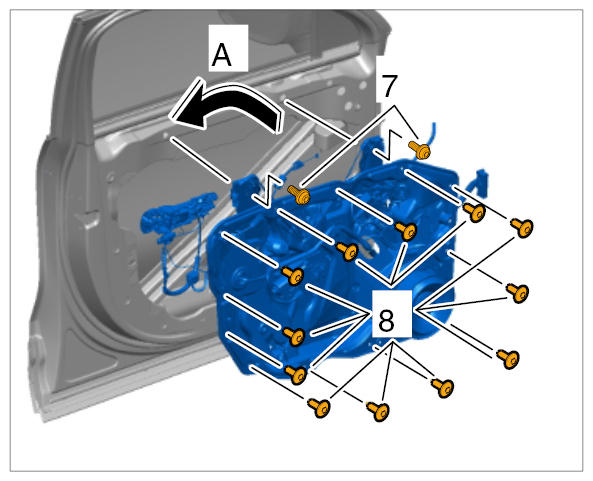

| Fastening screws for power windows mechanism | Item 7 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Installing door sub-frame |
|||||
| Fastening screw on door sub-frame | Item 8 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Installing door sub-frame |
|||||

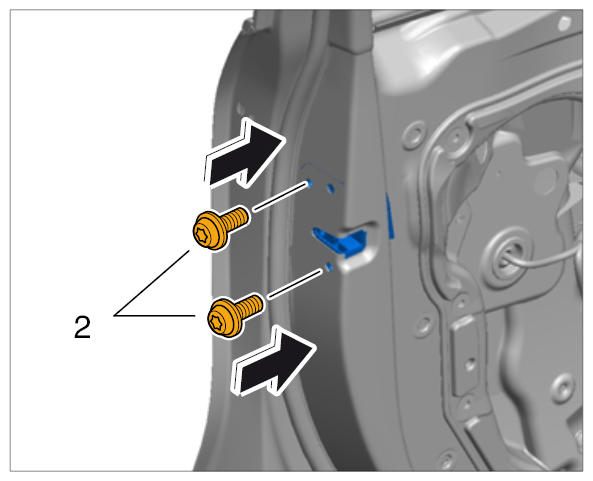

| Fastening screws securing door to door lock | Item 2 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Screwing in fastening screws on door lock |
|||||

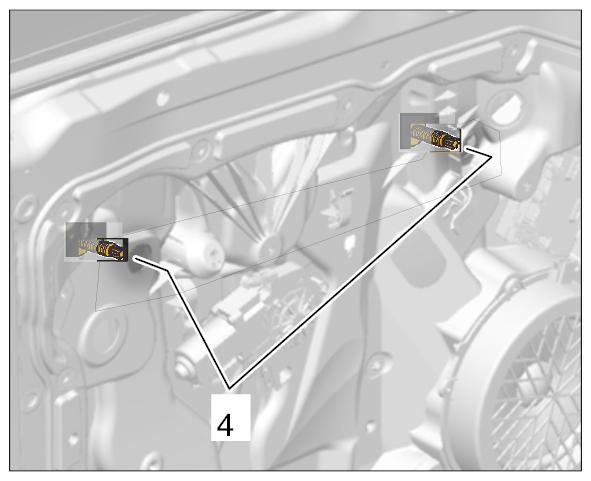

| Fastening screws for mounting pieces | Item 4. Important: Left thread! | Tightening torque | 6 Nm (4.5 ftlb.) | ||
|
Loosening fastening screws for mounting pieces |
|||||
