Removing Front Door Sub-Frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Open vehicle door.

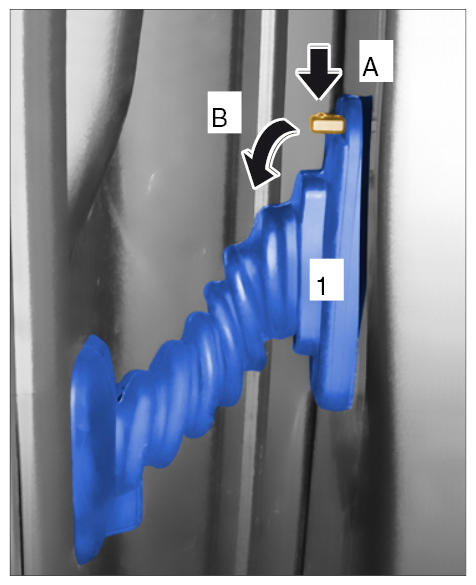

Detach rubber cover.
1. 2.1. Press unlocking lug -arrow A- .
2. 2.2. Pull back rubber cover -1- on the wiring harness.

  Fig 1: Pulling Back Rubber Cover On Wiring Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

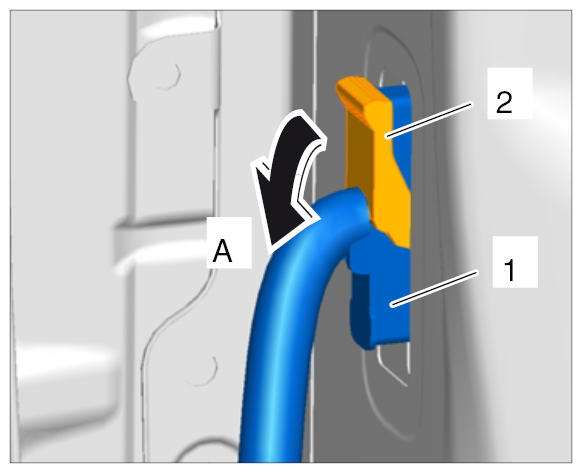

Disconnect electric plug connection -1- between the body and door.
1. 3.1. Turn retaining bar -2- down by 90° -arrow A- .
2. 3.2. Disconnect electric plug connection -1- .
Fig 2: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push wiring harness with electric connector through the opening into the vehicle door.

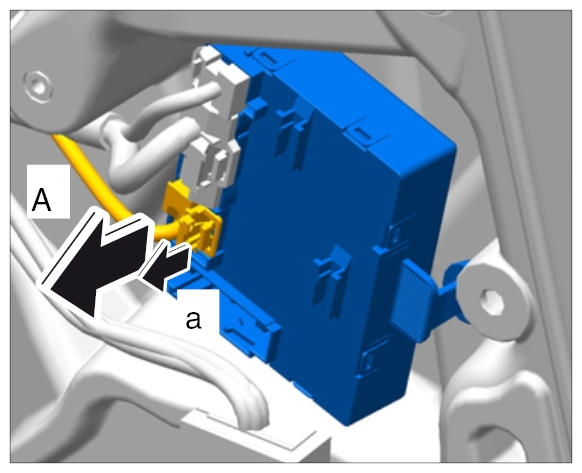

Release electric plug connection for rear-view mirror -a- and disconnect it -A- .

Fig 3: Releasing Electric Plug Connection For Rear-View Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

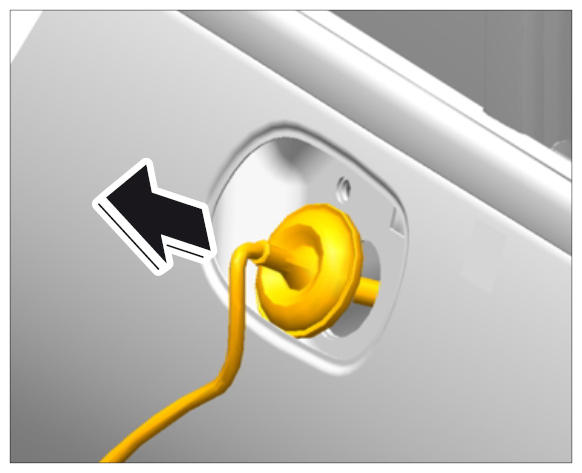

Guide rubber sleeve on the wire harness for rear-view mirror out of the door sub-frame. -arrow- .

Fig 4: Pulling Rubber Sleeve Out Of Rear-View Mirror
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen door window glass.

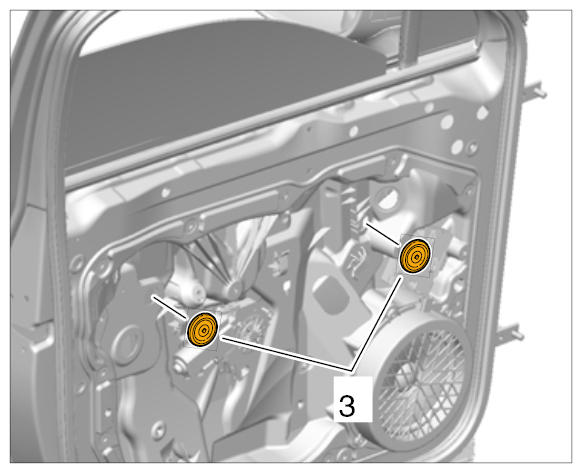

1. 7.1. Remove stopper -3- .

  Fig 5: Identifying Door Window Glass Stopper
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Loosen left-thread fastening screws by turning them clockwise.

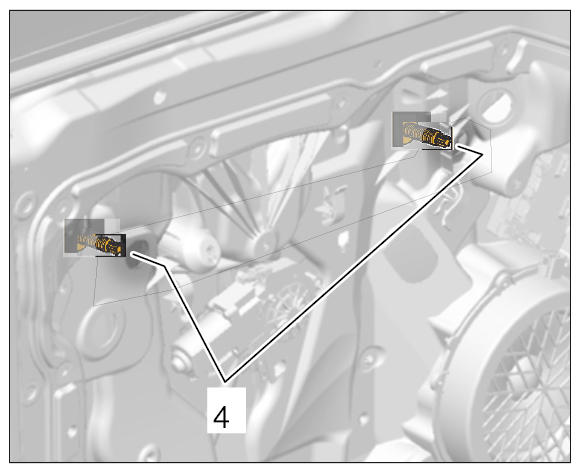

2. 7.2. Loosen fastening screws -4- for mounting pieces.

  Fig 6: Identifying Fastening Screws For Mounting Pieces
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

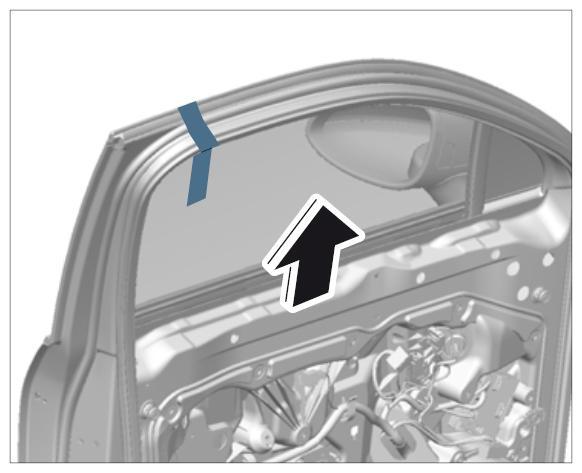

3. 7.3. Pull door window out of the mounting pieces and fix in place in the upper position using adhesive tape.

  Fig 7: Pulling Door Window Out Of Mounting Pieces
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove front door sub-frame.

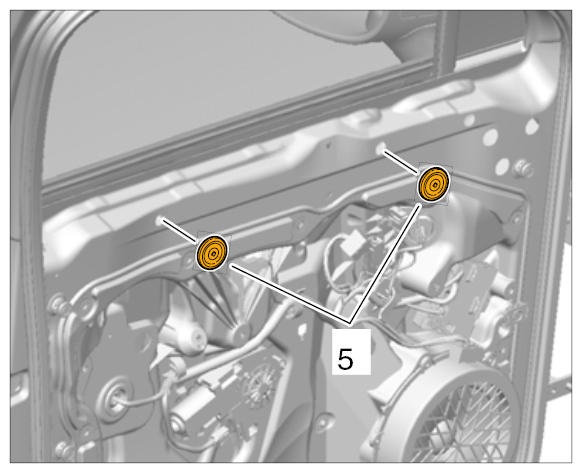

1. 8.1. Remove fabric tape -5- from the holes.

  Fig 8: Identifying Front Door Sub-Frame Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

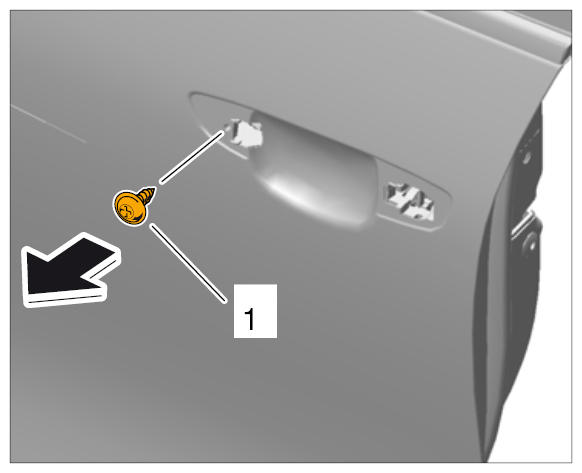

2. 8.2. Unscrew fastening screw -1- on inner part of door handle.

  Fig 9: Removing Fastening Screw Inner Part Of Door Handle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

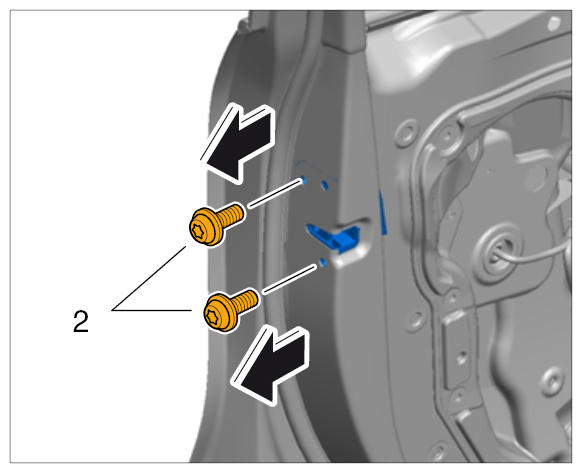

3. 8.3. Unscrew fastening screws -2- used to secure the door to the door lock.

  Fig 10: Removing Fastening Screws On Door Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

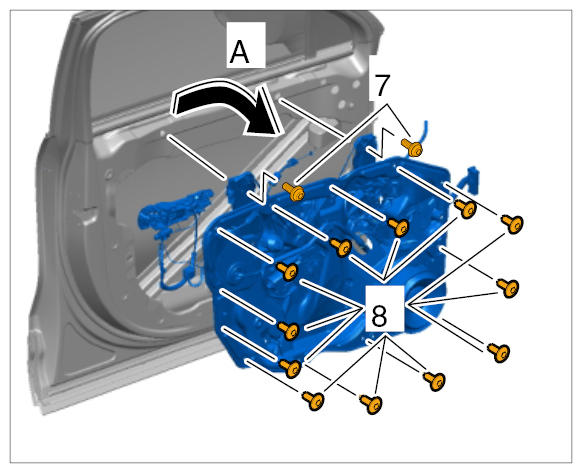

4. 8.4. Unscrew and remove fastening screws -7- for the window lifter.
5. 8.5. Unscrew and remove twelve fastening screws from the door sub-frame -8- to the vehicle door.
6. 8.6. Pull the door sub-frame down a little.

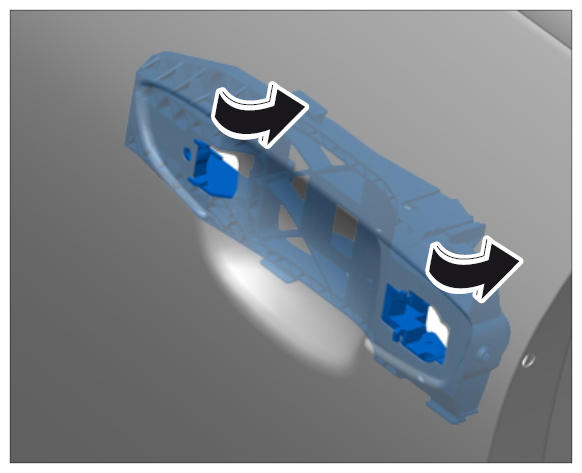

7. 8.7. Unhook inner part of door handle.

  Fig 12: Removing Inner Part Of Door Handle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. 8.8. Pull A-pillar wiring harness through the opening into the vehicle door.
9. 8.9. Remove door sub-frame by guiding out the door lock with mounting bracket -arrow A- .
