Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

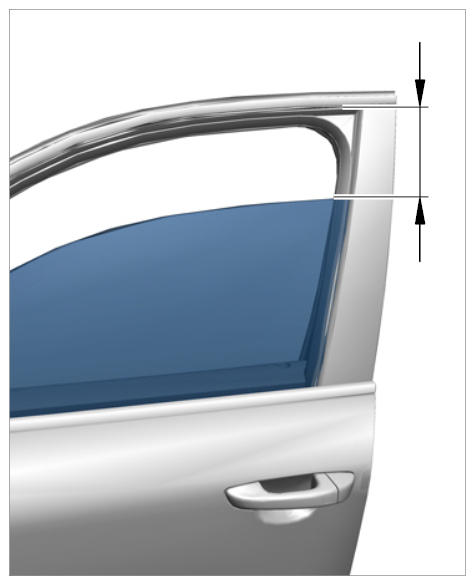

Guide front door window Adjustment value 160 mm +/-2 mm  down from the upper edge of the door.

Fig 1: Identifying Front Door Window
G09939429Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove front door panel. → REMOVING FRONT DOOR PANEL
  2. Remove front door handle. → Removing Front Door Handle 571119 REMOVING AND INSTALLING FRONT DOOR HANDLE
