Installing Front Door Sub-Frame

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install door sub-frame.
    1. 1.1. Push wiring harness through the vehicle door to the A-pillar.
    2. 1.2. Guide in door lock with mounting bracket -arrow A-  and move door sub-frame into installation position.
    3. 1.3. Position inner part of door handle.

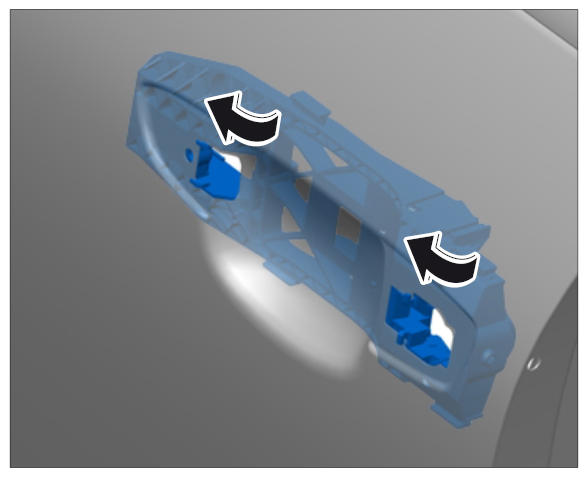

      1. 1.3.1. Guide locking hooks of inner part of door handle through the door aperture and press inner part of door handle forward -arrows-  .
        2. Fig 1: Installing Front Door Sub-Frame
        G09939442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

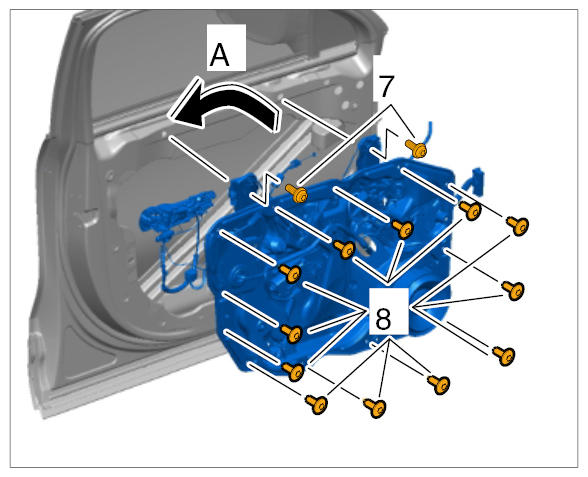

    4. 1.4. Tighten twelve fastening screws from the door sub-frame -8-  to the vehicle door to Tightening torque 8 Nm (6 ftlb.)  .
    5. 1.5. Screw in fastening screws on window lifter -7-  and tighten to Tightening torque 8 Nm (6 ftlb.)  .
      6. Fig 2: Installing Door Sub-Frame
      G09939443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

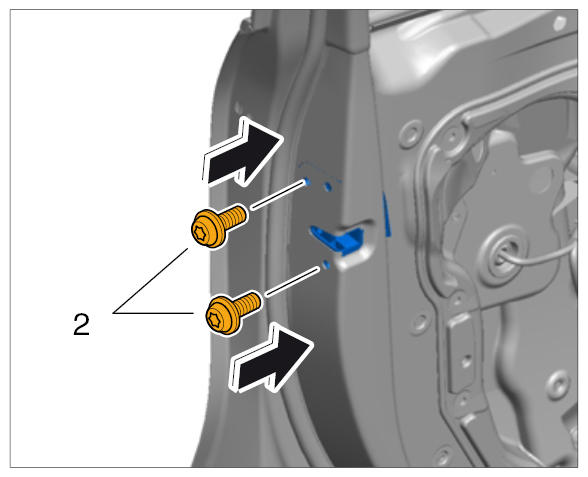

    6. 1.6. Screw in fastening screws -2-  on the door lock and tighten to Tightening torque 20 Nm (15 ftlb.)  .
      Fig 3: Screwing In Fastening Screws On Door Lock
      G09939444Courtesy of PORSCHE CARS NORTH AMERICA, INC.

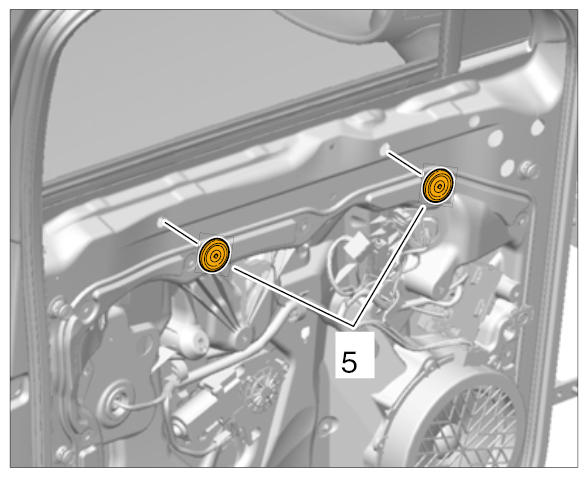

    7. 1.7. Replace fabric tape -5-  and affix over the holes.
      Fig 4: Identifying Covering Holes
      G09939445Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure the door window.
    1. 2.1. Insert door window glass into the mounting pieces and position centered between the guide rails.

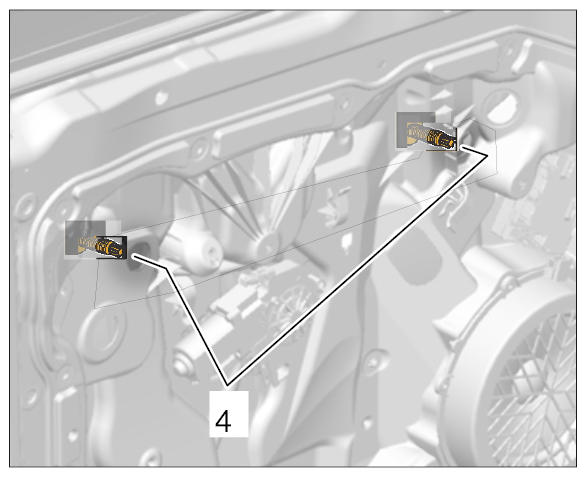

    2. 2.2. Tighten fastening screws on the mounting pieces to Tightening torque 6 Nm (4.5 ftlb.) , working from the left  .
      Fig 5: Identifying Mounting Pieces For Door Window
      G09939446Courtesy of PORSCHE CARS NORTH AMERICA, INC.

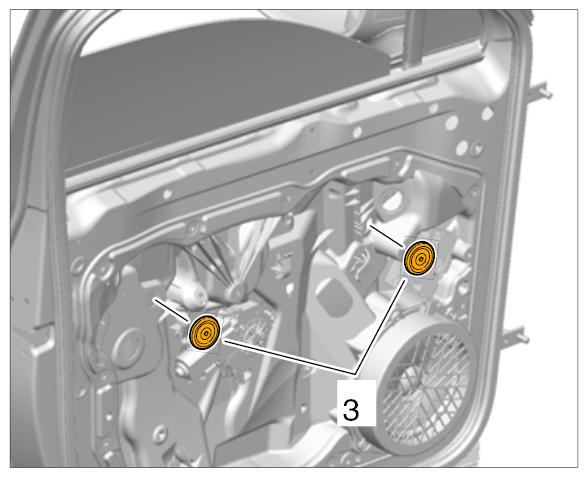

    3. 2.3. Insert stopper.
      Fig 6: Identifying Stopper
      G09939447Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Connect electric plug connection -1-  between the body and door.

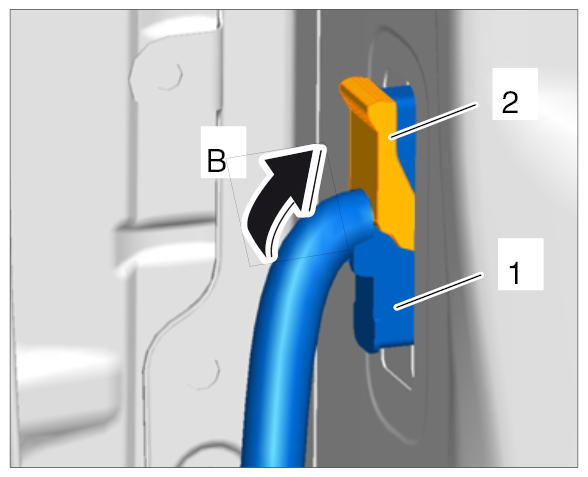

    1. 3.1. Plug in electric plug connection -1-  .
    2. 3.2. Turn retaining bar -2-  up by 90° -B-  .
      Fig 7: Plugging In Electric Plug Connection
      G09939448Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 3.3. Pull rubber sleeve for the wiring harness at the A-pillar over the electric plug connection and clip it in.
