Removing Front Lock Peg (Striker Pin)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -2-  and remove lock peg -1-  .

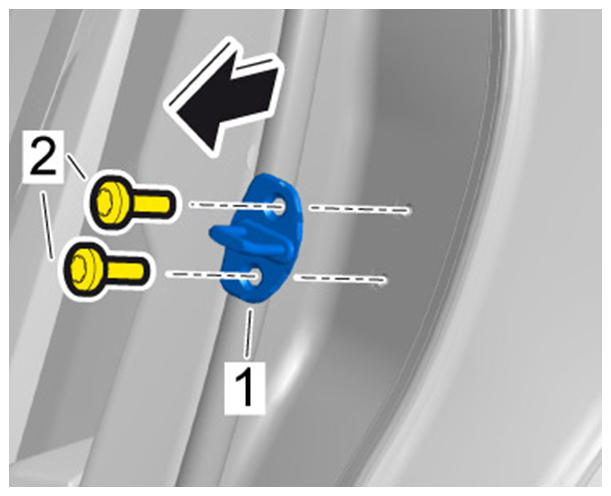

    Fig 1: Removing Front Lock Peg (Striker Pin)
    G09939419Courtesy of PORSCHE CARS NORTH AMERICA, INC.
