Installing Front Lock Peg (Striker Pin)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw in fastening screws -2-  .

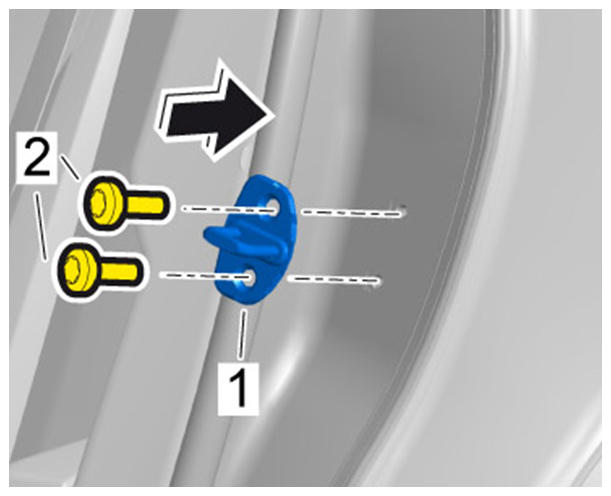

    Fig 1: Installing Front Lock Peg (Striker Pin)
    G09939420Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully close the door and check that the lock peg is positioned correctly with respect to the lock.
  3. Adjust the lock peg to suit the lock as required.
  4. Tighten fastening screws -2-  to Tightening torque 25 Nm (19 ftlb.)  .
  5. Check position of door and adjust if necessary. → 575115 ADJUSTING FRONT DOOR
