Adjusting Lock Peg (Striker Pin)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The striker pin can be adjusted by changing the plasticity of the adjusting element in the B-pillar.
The setting is retained when the striker pin is removed.

Fig 1: Adjusting Element For Striker Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosen fastening screws -2- .
Move lock peg outwards.

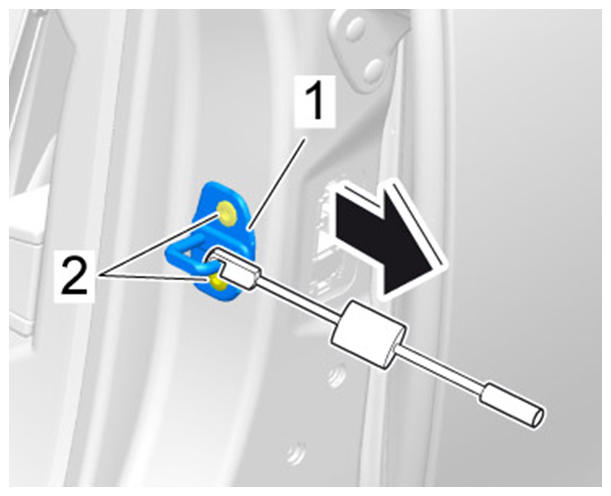

1. 2.1. Move the lock peg -1- outwards (if necessary) using slide hammer kit Nr.168 .
Adjust the lock peg back/down/up (if necessary).
1. 3.1. Move catch bar -1- to the required position using a plastic hammer.
2. 3.2. Carefully close the door and check adjustment.
Tighten fastening screws -2- to → Tightening torque: 25 Nm (19 ftlb) .

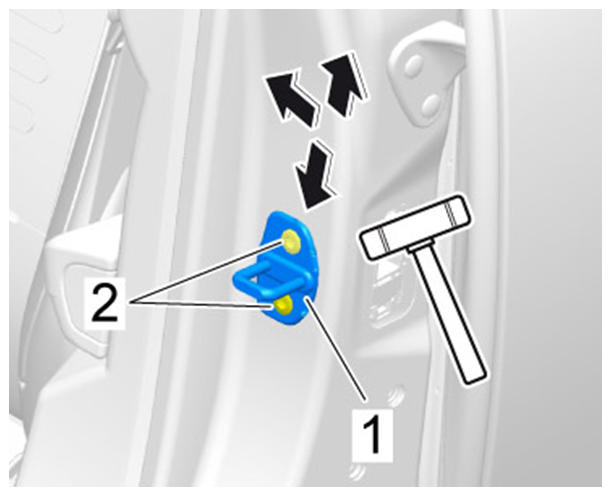

Fig 3: Adjusting Lock Peg

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
