Installing Door Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

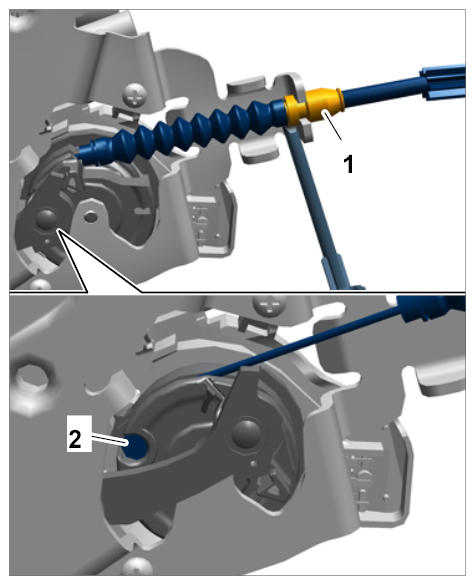

Engage bowden cable for closing aid on the door lock.
1. 1.1. Guide the catch -2- into the door lock.
2. 1.2. Pull on the bowden cable and clip in bowden cable bracket -1- on the door lock.

  Fig 1: Identifying Bowden Cable For Closing Aid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage actuating mechanism for bowden cable at the door lock. → Removing Inner Actuating Mechanism For Door Lock

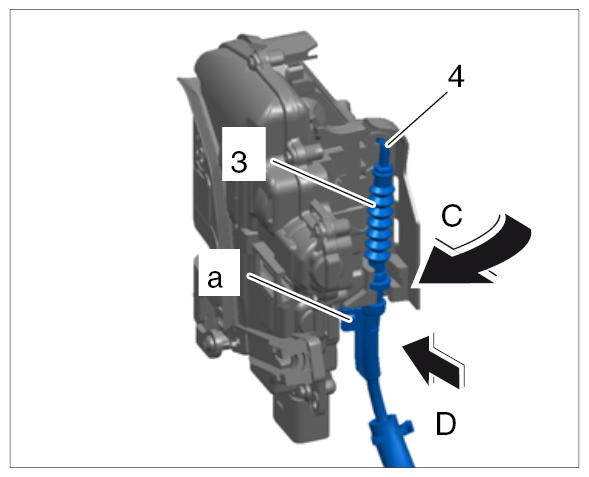

Engage bowden cable in the door lock from the inner part of the door handle to the door lock.
1. 3.1. Engage the catch -4- and turn the bowden cable bracket by 90° -C- .
2. 3.2. Press the bowden cable bracket -3- downwards -D- and clip it in -a- .
Fig 2: Engaging Bowden Cable From Inner Part Of Door Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip the mounting bracket into the door lock.

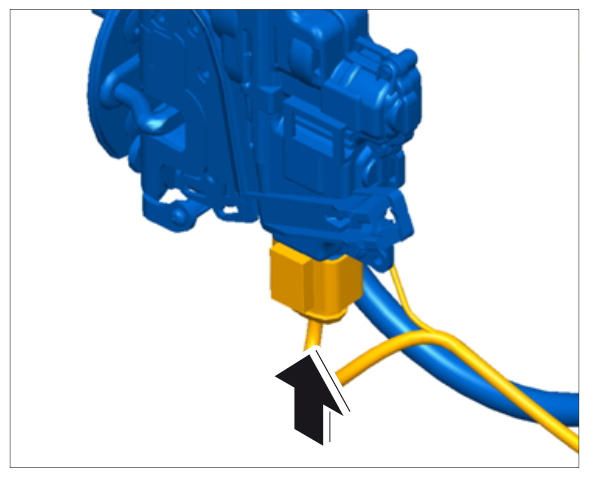

Plug in electric plug connection at the door lock until it engages securely.

Fig 3: Plugging In Electric Plug Connection At Door Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
