Technical Values

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for lock cylinder Item 3 Tightening torque 3.5 Nm (2.5 ftlb.)
G09939402

Tightening fastening screws
Fastening screw for locking mechanism Item 4 Tightening torque 3.5 Nm (2.5 ftlb.)

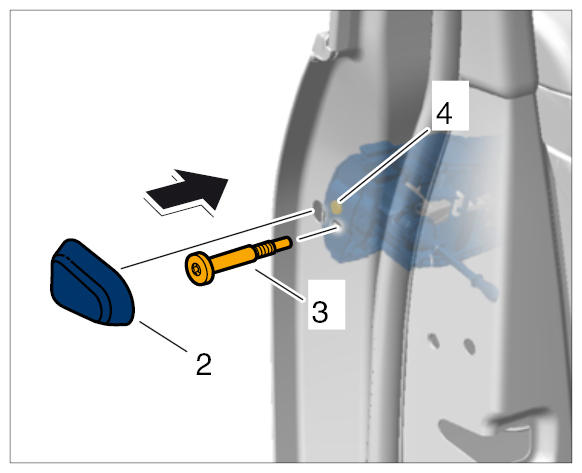

G09939403

Tightening fastening screws
