Removing Lock Cylinder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the driver's door.
  2. Insert emergency release key from below (do not turn) and remove cap -1-  from the lock cylinder.

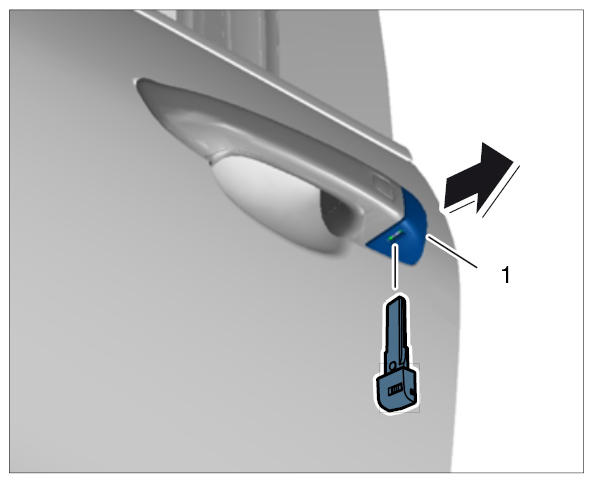

    Fig 1: Removing Cap
    G09939374Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip cap -2-  .
  4. Unscrew fastening screw -3-  .
  5. Only loosen fastening screw -4-  until the screw is blocked.
  6. Press fastening screw -4-  forward using a screwdriver to release the lock cylinder.

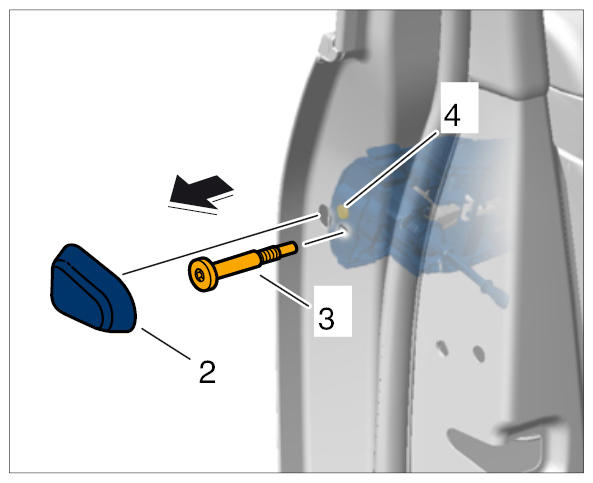

    Fig 2: Loosening Lock Cylinder
    G09939375Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Pull out lock cylinder -5-  .

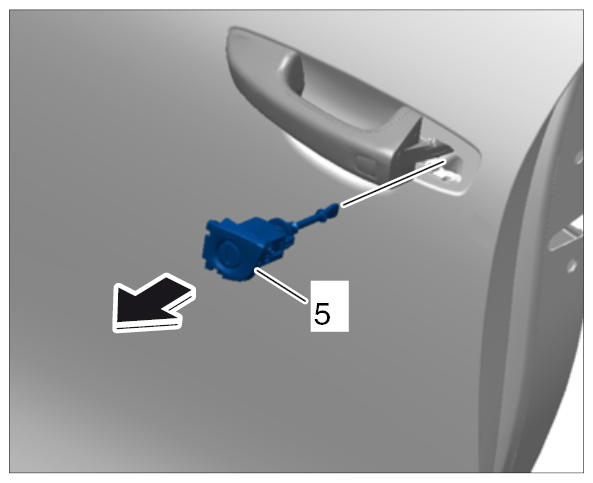

    Fig 3: Removing Lock Cylinder
    G09939376Courtesy of PORSCHE CARS NORTH AMERICA, INC.
