Installing Lock Cylinder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Insert and position lock cylinder -5- .

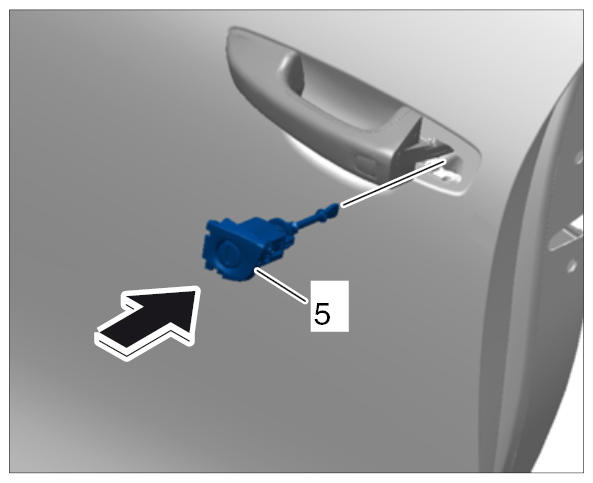

Fig 1: Installing Lock Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw -4- to Tightening torque 3.5 Nm (2.5 ftlb.) .
Tighten fastening screw -3- to Tightening torque 3.5 Nm (2.5 ftlb.) .
Clip in cap -2- .

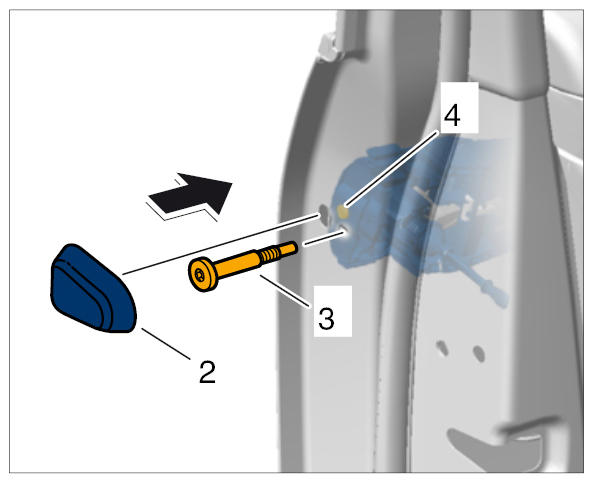

Fig 2: Securing Lock Cylinder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert and clip in cap -1- at the right side of the lock cylinder using the locking tab.

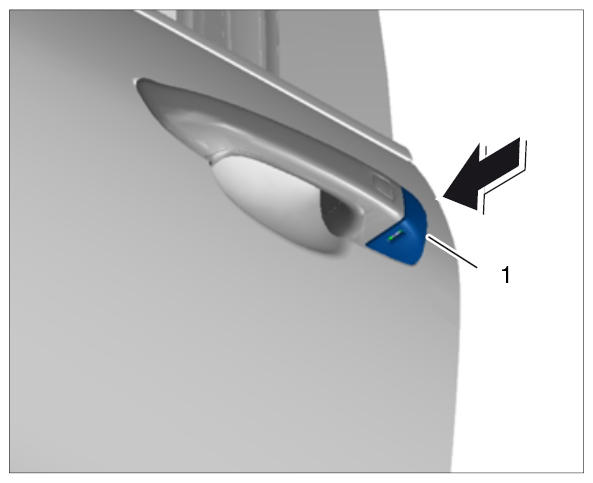

Fig 3: Inserting Clip In Cap At Right Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
