Technical Values: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

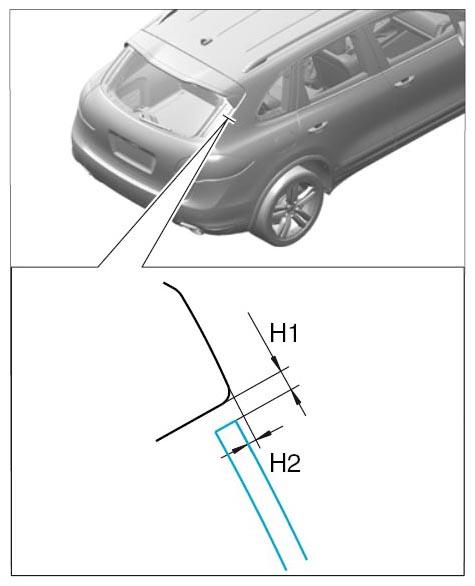

| Rear window to side panel (H1) | Gap dimension | 4.5 mm | +/-0.8 mm | ||
|
Rear window to side panel |
|||||
| Rear window to side panel (H2) | Heat-insulating glass (single-glazed safety glass) | Gap dimension | 2 mm | +/-0.8 mm | |
|
Rear window to side panel |
|||||
| Rear window to side panel (H2) | Insulating glass (laminated safety glass) | Gap dimension | 1 mm | +/-0.8 mm | |
|
Rear window to side panel |
|||||

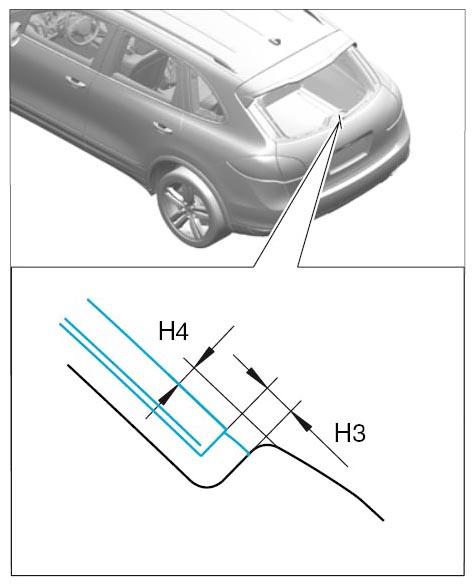

| Rear window to rear lid (H3) | Gap dimension | 4.5 mm | +/-0.8 mm | ||
|
Rear window to rear lid |
|||||
| Rear window to rear lid (H4) | Heat-insulating glass (single-glazed safety glass) | Gap dimension | 3 mm | +/-0.5 mm | |
|
Rear window to rear lid |
|||||
| Rear window to rear lid (H4) | Insulating glass (laminated safety glass) | Gap dimension | 2 mm | +/-0.5 mm | |
|
Rear window to rear lid |
|||||
