Gap Dimensions Of Rear Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 4.5 mm+/-0.8 mm

Fig 1: Identifying Gap Dimension Of Rear Window To Side Panel

G09940127

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2 mm+/-0.8 mm

Fig 2: Identifying Gap Dimension Of Side Panel To Rear Window

G09940128

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+/-0.8 mm

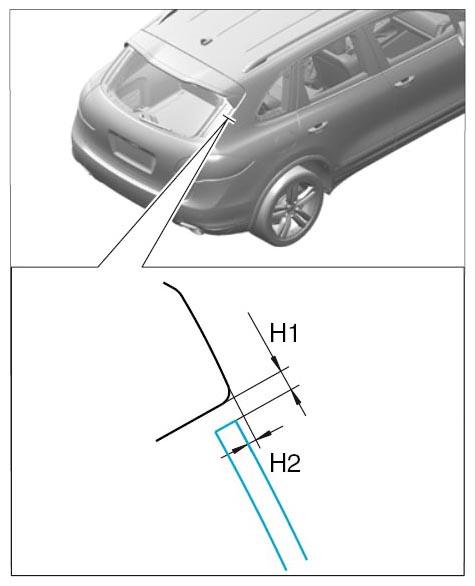

Fig 3: Identifying Gap Dimension Of Rear Window To Side Panel

G09940129

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.5 mm+/-0.8 mm

Fig 4: Identifying Gap Dimension Of Rear Window To Lid

G09940130

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3 mm+/-0.5 mm

Fig 5: Identifying Gap Dimension Of Rear Lid To Window

G09940131

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2 mm+/-0.5 mm

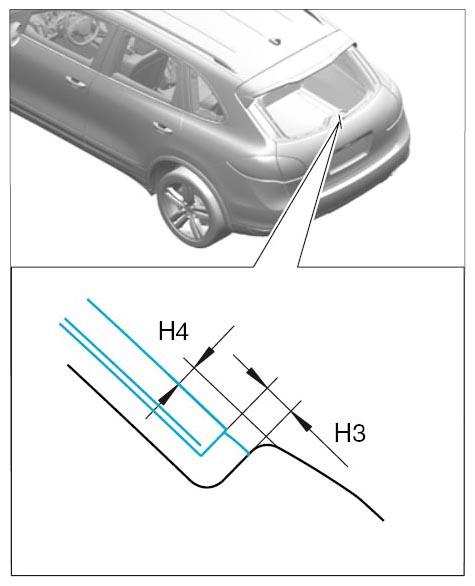

Fig 6: Identifying Gap Dimension Of Rear Window To Lid

G09940132

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
