The following tools and materials are required for removing and installing the rear window with 2-component adhesive:

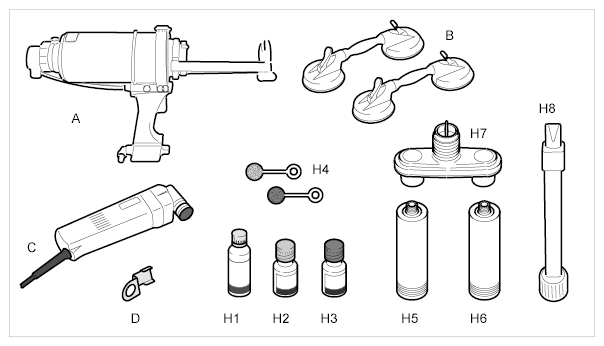

  1. A  - Double cartridge gun VAS 5237
  2. B  - Suction cups VAG 1344
  3. C  - Special electric cutter (fine) VAG 1561 A
  4. D  - Flashing knife, U-shaped 639.031.130.22
  5. H  - 2-component window bonding agent 000.043.300.94, contains set components H1 - H8
  6. H1  - Cleaning solution
  7. H2  - Primer
  8. H3  - Activator
  9. H4  - Swab
  10. H5  - Cartridge, component A
  11. H6  - Cartridge, component B
  12. H7  - Mixing nozzle
  13. H8  - Processing nozzle
    14. Fig 1: Identifying Tools And Materials
    G09940108Courtesy of PORSCHE CARS NORTH AMERICA, INC.

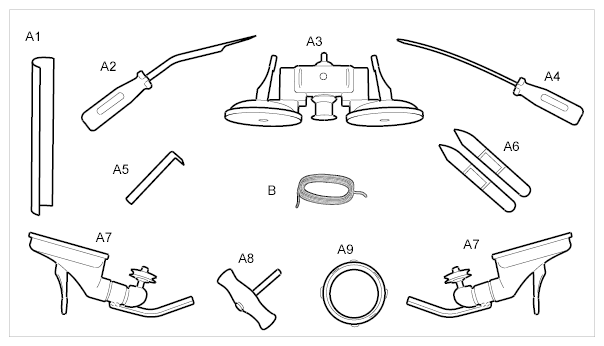

  1. A  - Removal kit for flush bonded windows VAG 1474 B, contains set components A1 - A9
  2. B  - Cutting thread
  3. A1  - Guide rail
  4. A2  - Cutting tool (wire holder)
  5. A3  - Spooling device
  6. A4  - Awl
  7. A5  - Guide rail
  8. A6  - Spatula
  9. A7  - Guide roller with brace
  10. A8  - Handle
  11. A9  - Square cutting wire
    12. Fig 2: Identifying Tools And Materials
    G09940109Courtesy of PORSCHE CARS NORTH AMERICA, INC.
