Removing Rear Side Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The new side window is supplied complete with trim frame and trim.

Unscrew and remove fastening screw -2- on the bracket for the luggage compartment net cover at the D-pillar.

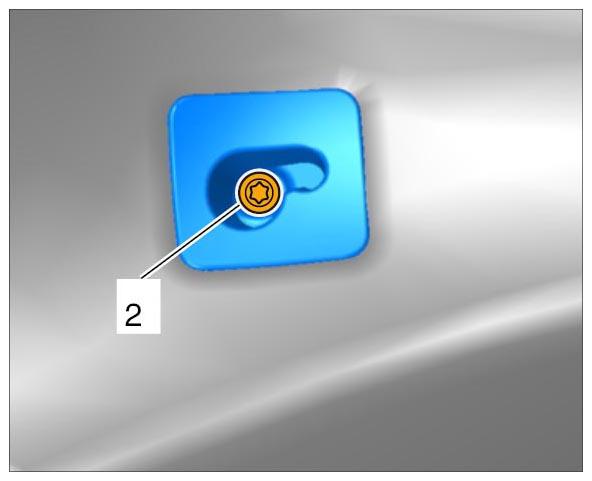

Fig 1: Loosening Bracket For Rear Luggage Net Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen headliner in the rear side window area.
On vehicles with antenna , disconnect electric plug connection.
Lift trim on the side window -A- up slightly and pull it forward to remove it -B- .

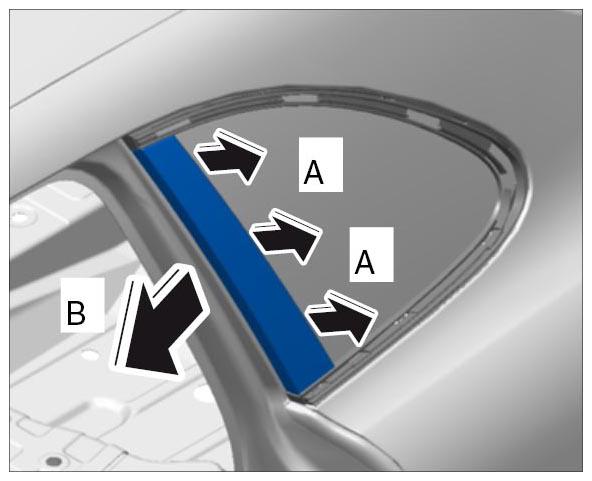

Fig 2: Removing Trim On Side Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Vehicle windows removed and installed incorrectly
- Danger of cuts
- Risk of eye injuries
→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.
Pierce bead of adhesive on the lower C-pillar from the inside out using the scratch awl.
Information
- The procedure for removing car windows is described in → 6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS .
Information
- When cutting out the side window, fixing clips will also be cut through. Greater force will be needed at these points.
Cut out the side window.
1. 6.1. Cut out the side window using a cutting wire.
2. 6.2. Cut through fixing clips -1- when removing the window.

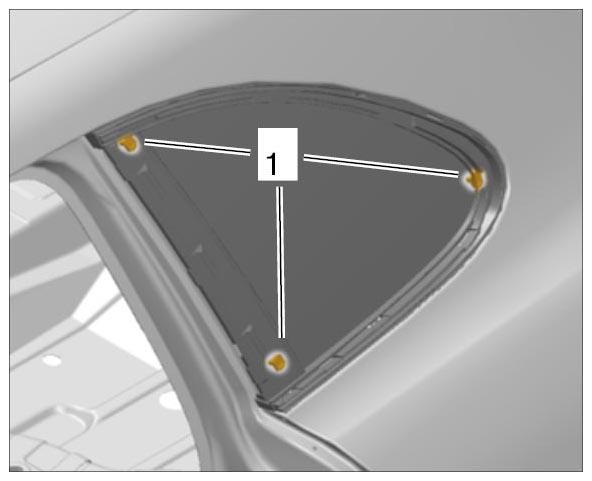

  Fig 3: Identifying Fixing Clips Installation Position
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
