Removing Rear Side Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew fastening screw -2- on the bracket for the luggage compartment net cover at the D-pillar.

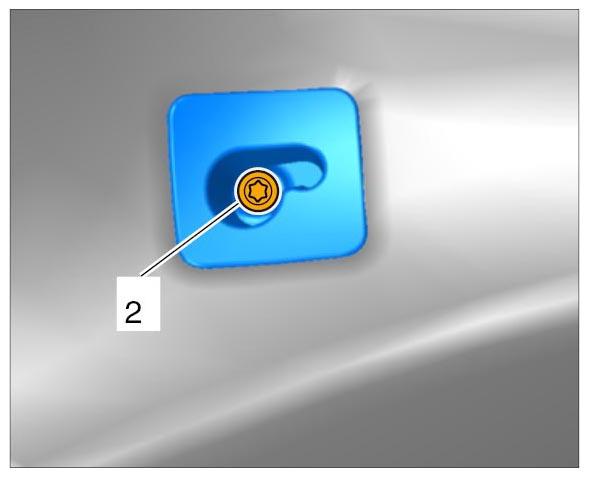

Fig 1: Loosening Bracket For Rear Luggage Net Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen headliner in the area of the rear side window.
Lift trim at the side window -A- up slightly and pull it forward to remove it -B- .

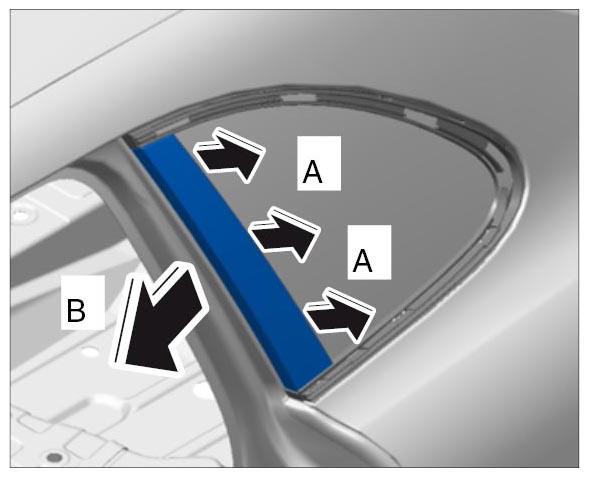

Fig 2: Removing Trim On Side Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Vehicle windows removed and installed incorrectly
- Danger of cuts
- Risk of eye injuries
→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.
Apply a bead of adhesive from the inside out to the lower C-pillar using the scratch awl.
Information
- The procedure for removing car windows is described in → 6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS .
Information
- When cutting out the side window, three fixing clips will also be cut through. Greater force will need to be applied at these points.
Cut out the side window.
1. 5.1. Cut out the side window with the cutting-wire separating device.

  Fig 3: Cutting Out Side Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Cut through three fixing clips -1- when removing.

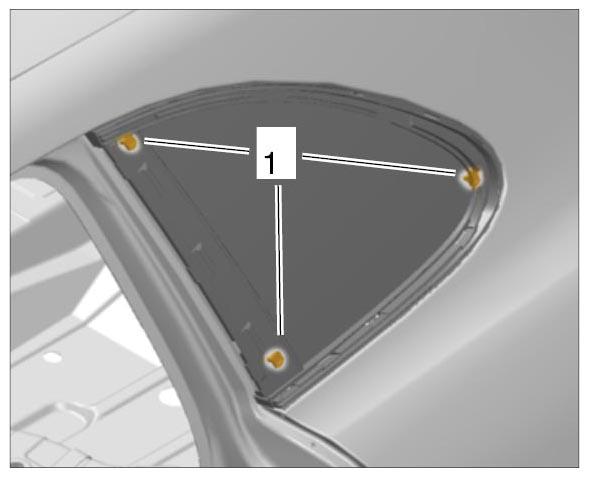

  Fig 4: Identifying Fixing Clips At Side Window
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
