Removing Rear Window Channel Seal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

  1. Open the rear door window fully.
  2. Carefully lift up the rear window channel seal using a plastic wedge.

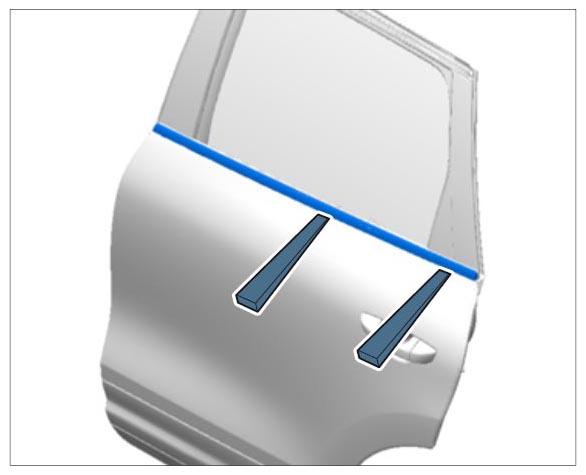

    Fig 1: Lifting Up Channel Seal
    G09940084Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull rear window channel seal up off the sheetmetal flange, starting at the rear end.
  4. Remove window channel seal -1-  .

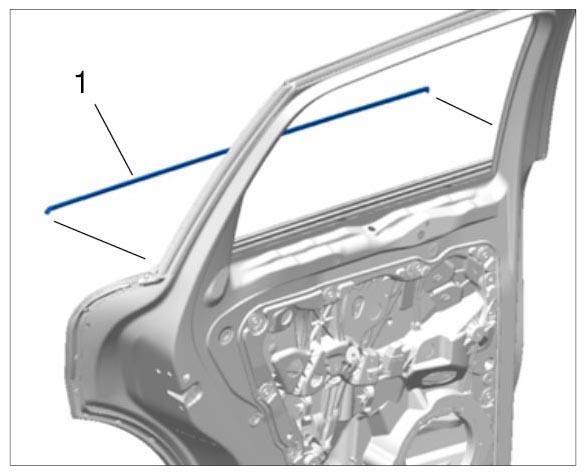

    Fig 2: Removing Window Channel Seal
    G09940085Courtesy of PORSCHE CARS NORTH AMERICA, INC.
