Removing Rear Power Window Motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

The end positions of the power windows are deleted from the control unit when the electric connectors are disconnected and connected.

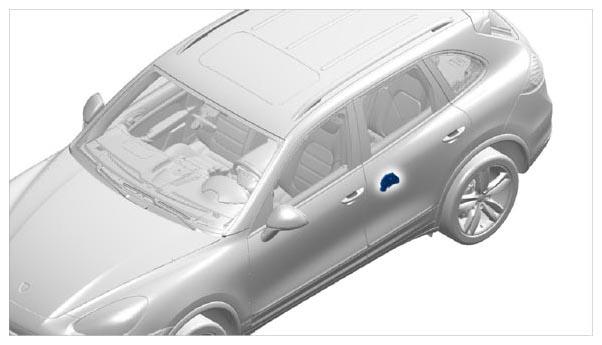

Fig 1: Identifying Rear Power Window Motor Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

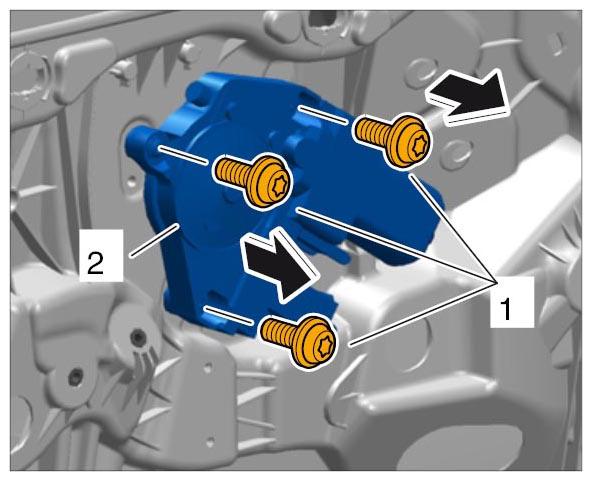

Unscrew three fastening screws -1- for the rear power window motor -2- .

Fig 2: Removing Power Window Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull rear power window motor -2- out of the toothing.

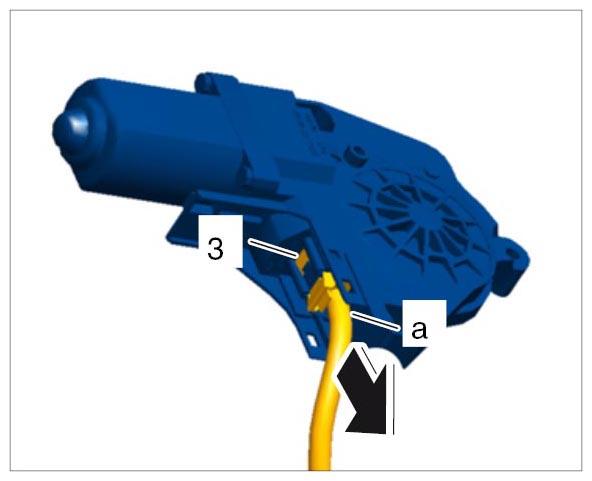

Release and pull off electric plug connection -3- (-a- ).

Fig 3: Pulling Off Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
