Removing Rear Door Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

Cover add-on parts and adjacent areas.

Protect components against scratching and damage.

Pull off the rear window guide in the C-pillar area.
Remove inner channel strip by pulling it upwards.
Remove stoppers -3- from the door sub-frame.

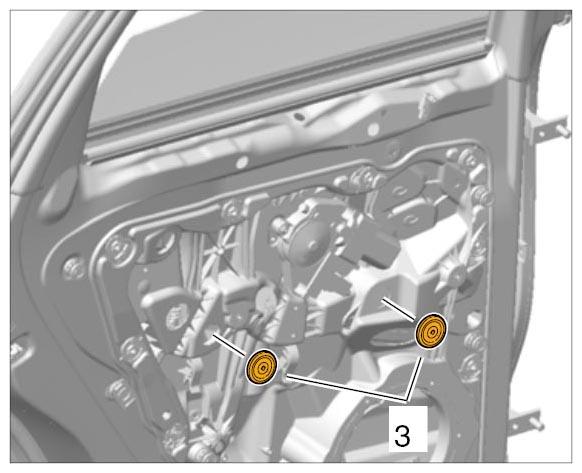

Fig 1: Identifying Stoppers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move the door window down until the clamping screws on the mounting pieces for the window lifter are visible through the opening.
Information

Loosen left-thread fastening screws by turning them clockwise.
Loosen fastening screws on the mounting pieces -4- .

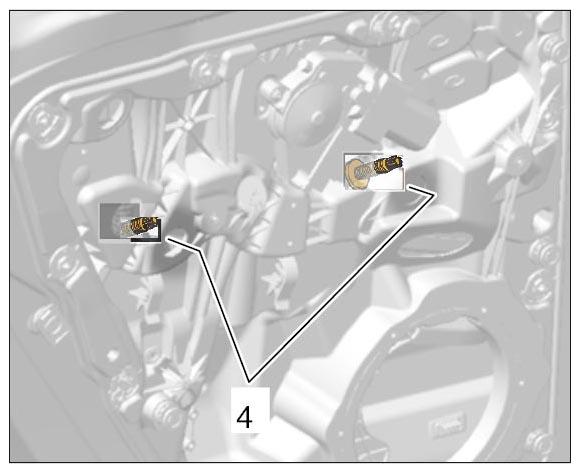

Fig 2: Loosening Mounting Pieces For Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift the door window up out of the guide and remove it.

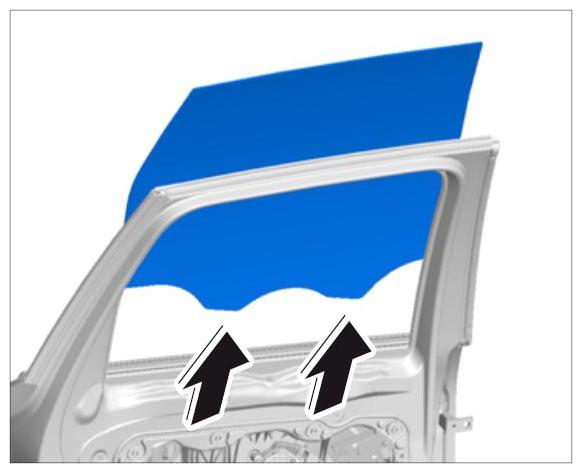

Fig 3: Removing Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
