Installing Rear Door Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

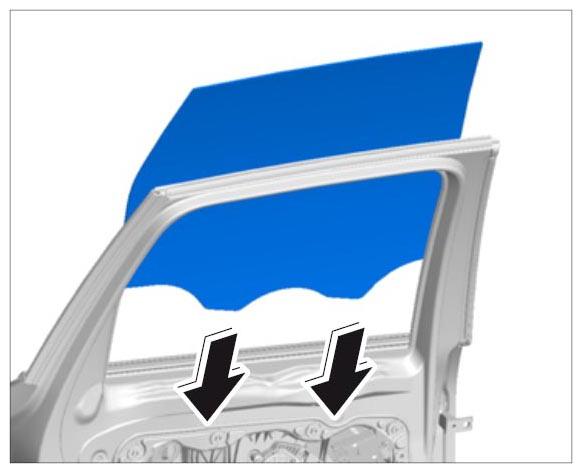

Fit door window glass into the guide.

Fig 1: Fitting Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit door window glass as far as it will go into the mounting pieces for the window lifter without forcing it.
Check that the window glass is parallel to the window guide close to the B-pillar.

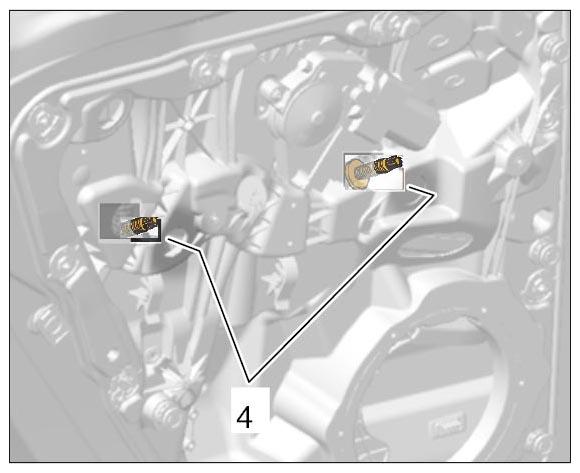

Tighten fastening screws on the mounting pieces -4- to Tightening torque 6 Nm (4.5 ftlb.) , working from the left.

Fig 2: Tightening Mounting Pieces For Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

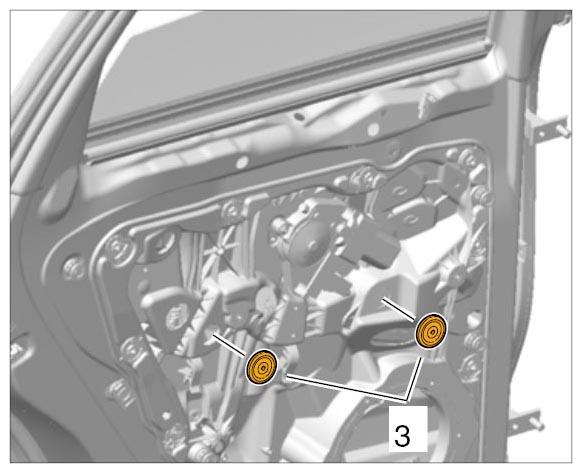

Fit two stoppers -3- in the door sub-frame.

Fig 3: Fitting Stoppers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert rear window guide.
Insert inner channel strip
