Removing Switch For Front Power Windows

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
These must be carried out as a mirror image of the steps shown for the front and rear.

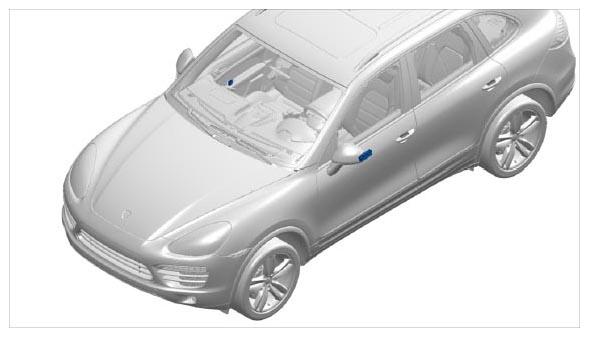

Fig 1: Identifying Switch For Front Power Windows Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

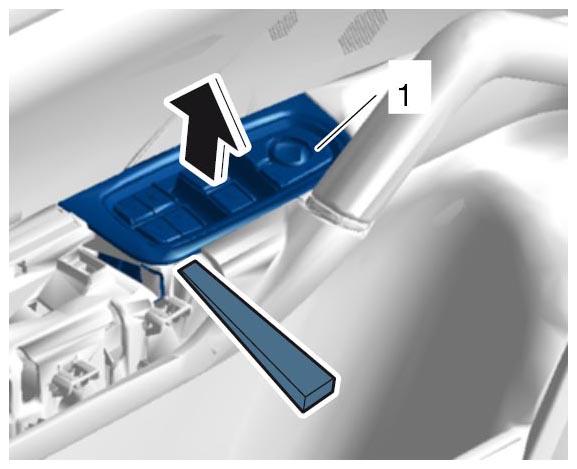

Unclip the complete switch -1- using a plastic wedge.

Fig 2: Pulling Out Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

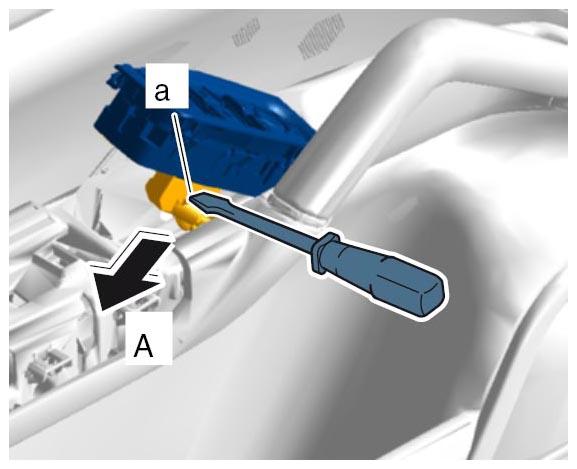

Release electric plug connection -a- and pull it off the switch -A- .

Fig 3: Pulling Off Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
