Removing Front Window Regulator Motor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

The end positions of the power windows are deleted from the control unit when the electric connectors are disconnected and connected.

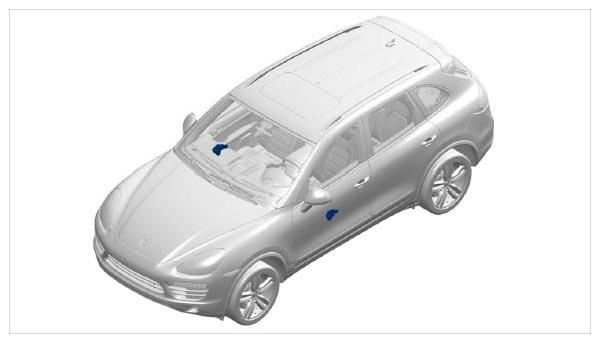

Fig 1: Identifying Front Window Regulator Motor Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew three fastening screws -1- for the front window regulator motor -2- .

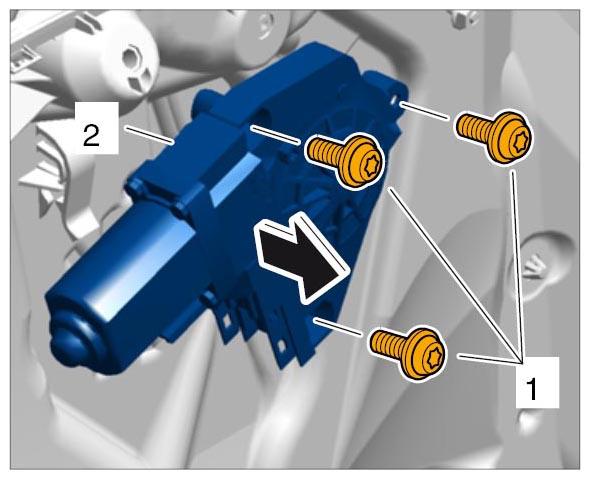

Fig 2: Removing Screws Of Front Window Regulator Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the front window regulator motor -2- out of the splines.
Release and pull off electric plug connection -3- (-a- ).

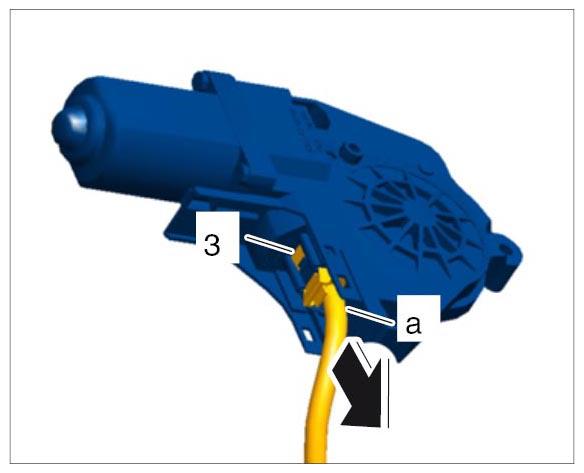

Fig 3: Pulling Off Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
