Removing And Installing Front Window Channel Seal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Open the front door window fully.
Lift up the front window channel seal using a plastic wedge.

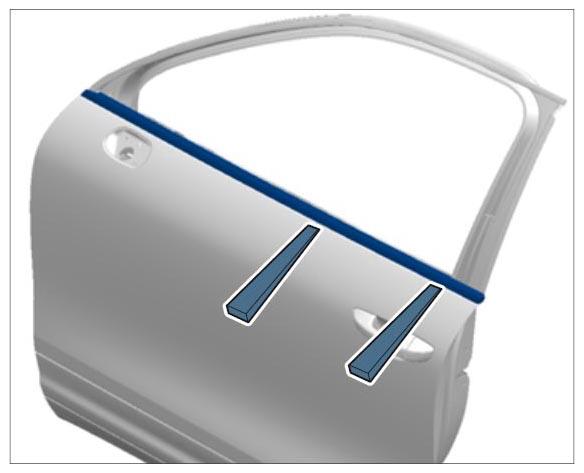

Fig 1: Lifting Up Window Channel Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull front window channel seal up at the rear end, starting at the sheetmetal flange.
Remove window channel seal -1- at the front.

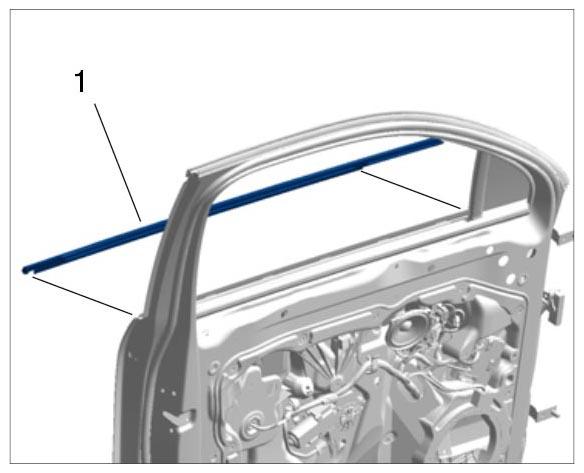

Fig 2: Removing Window Channel Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
