Installing Front Window Guide

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To make it easier to install the window guide in the door channel area, this section of the window guide must be moistened with a soapy solution.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Fit front window guide at the triangular window -3- .
Do not kink or bend the window guide out of shape during installation.

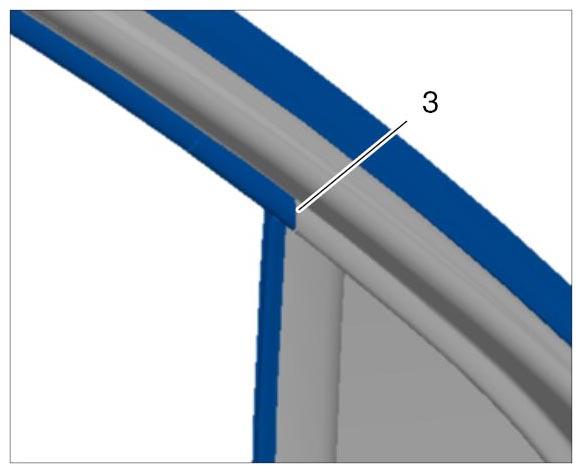

Fig 1: Identifying Front Window Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit window guide into the front corner window pane.

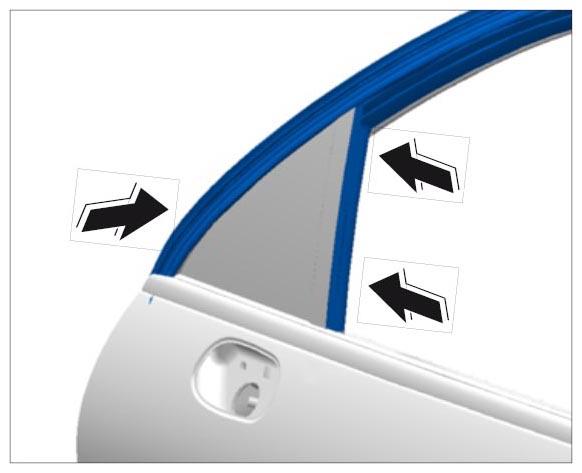

Fig 2: Fitting Front Window Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit window guide on the door window frame at the top and rear.
Check that the window guide is seated securely.

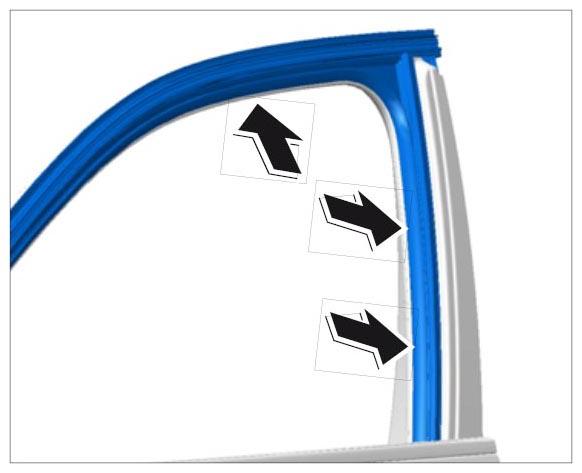

Fig 3: Pulling Window Guide At B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
