Technical Values

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for mounting pieces for door window   Tightening torque 6 Nm (4.5 ftlb.)

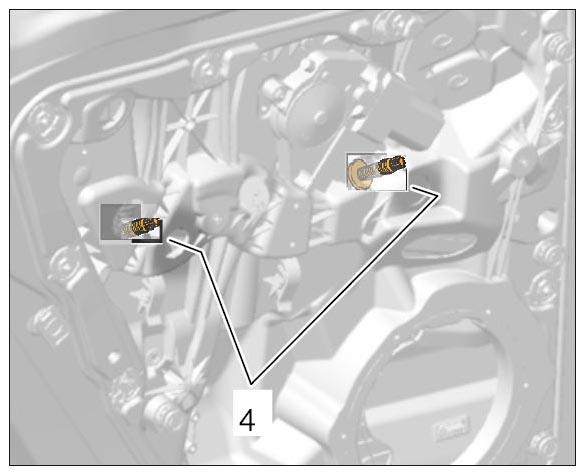

G09940045

Loosening mounting pieces for window glass
Front door window opening   Adjustment value 160 mm +/-2 mm

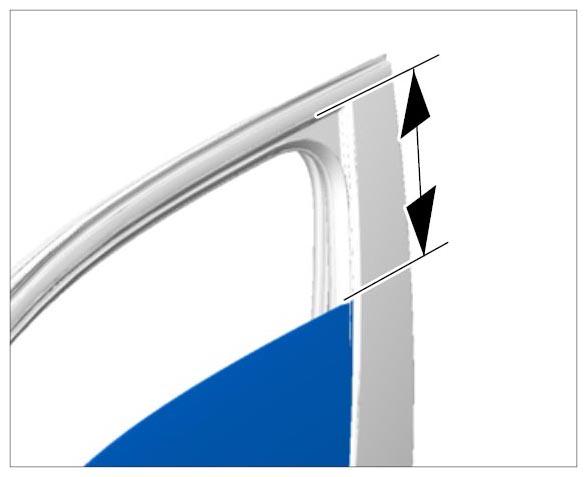

G09940046

Guiding down door window
