Removing Front Door Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
Some steps must be carried out automatically.
Some of the repair illustrations show only one side of the vehicle.

Pull off front window guide close to the B-pillar. → Removing Front Window Guide -
Remove two stoppers -3- from the door sub-frame.

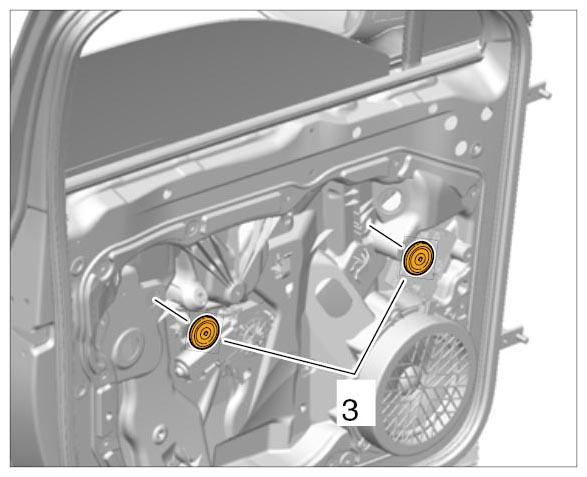

Fig 1: Removing Stoppers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Move the door window down until the screws on the mounting pieces for the window lifter are visible through the openings.
Information

Loosen left-thread fastening screws by turning them clockwise.
Loosen fastening screws -4- on the mounting pieces.

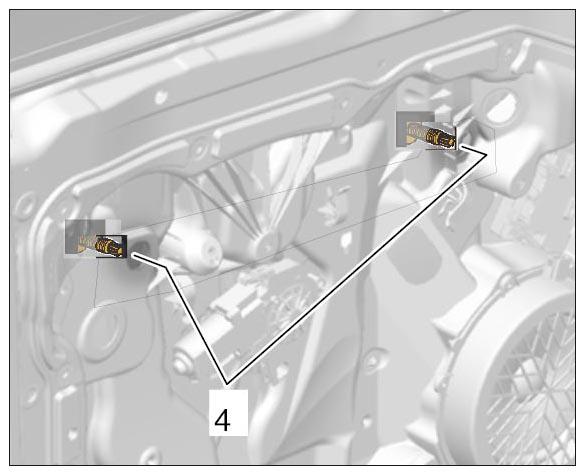

Fig 2: Loosening Mounting Pieces
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove door window glass by pulling it upwards.

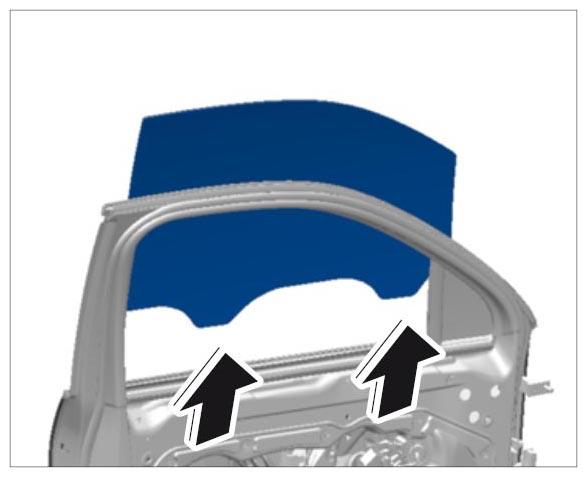

Fig 3: Removing Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
