Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Front door window

Guide front door window Adjustment value 160 mm +/-2 mm down from the upper edge of the door.

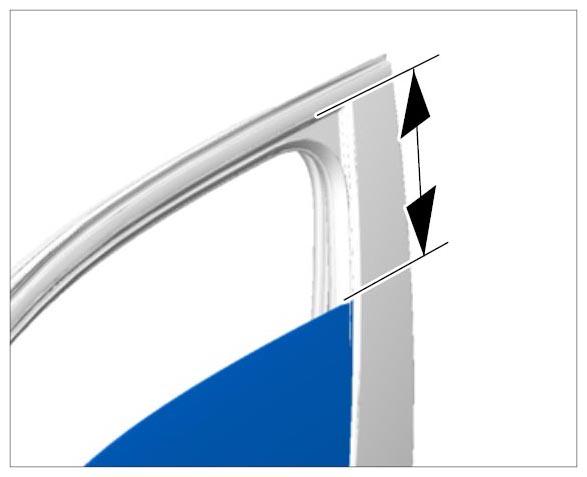

Fig 1: Identifying Down Door Window Dimension
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove front door panel. → REMOVING FRONT DOOR PANEL
Remove cover for front door (B-pillar). → REMOVING B-PILLAR TRIM
