Installing Front Corner Window Pane

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

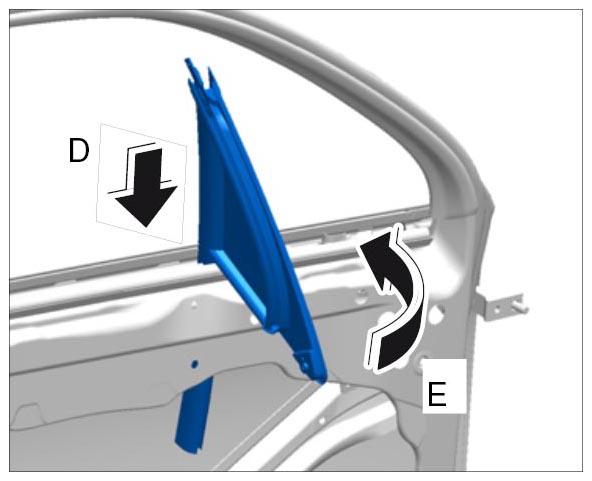

Guide the corner window pane into the window channel -D- and turn it 90° -E- .

Fig 1: Removing Corner Window Pane
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

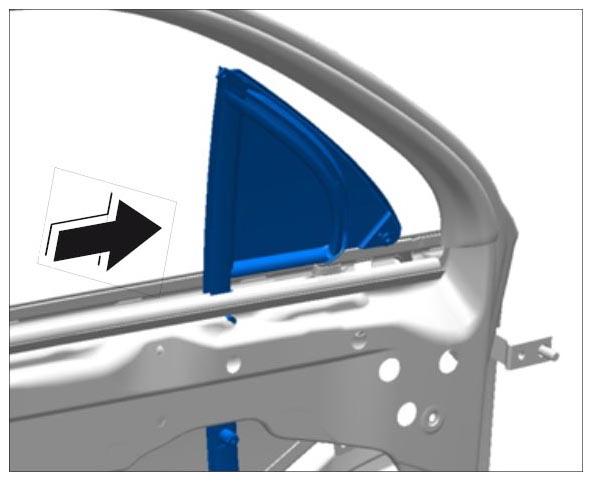

Slide the corner window pane forward into position.

Fig 2: Positioning Corner Window Pane
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

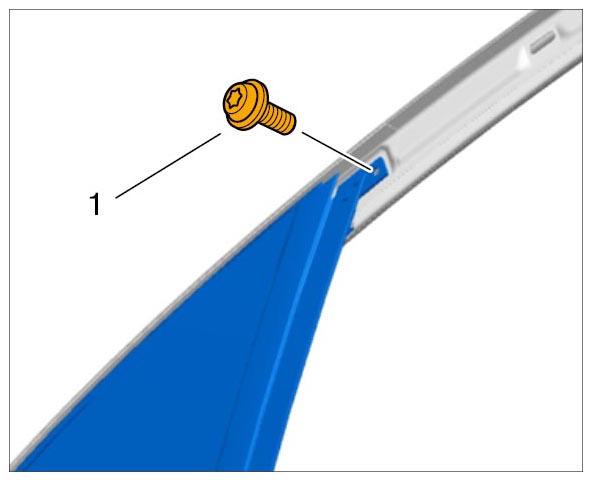

Tighten fastening screw -1- at the top outer side to Tightening torque 4.5 Nm (3.5 ftlb.) .
Check that there is an equal gap with respect to the door frame so that the window guide can be fitted.

Fig 3: Securing Corner Window Pane On Outside
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

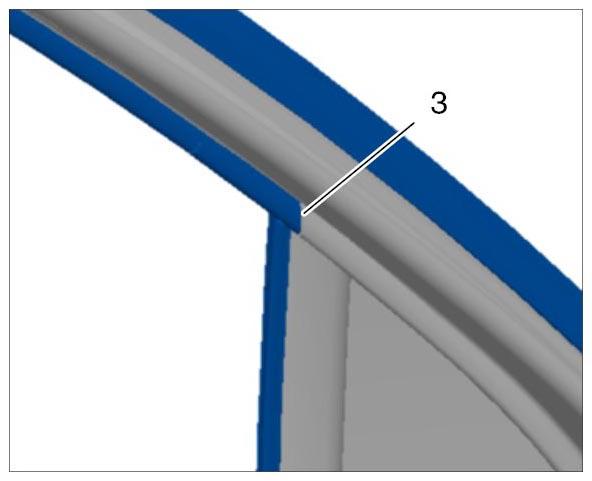

Fit front window guide at the triangular window -3- .
Do not kink or bend the window guide out of shape during installation.

Fig 4: Identifying Front Window Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit window guide into the front corner window pane.

Fig 5: Fitting Front Window Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

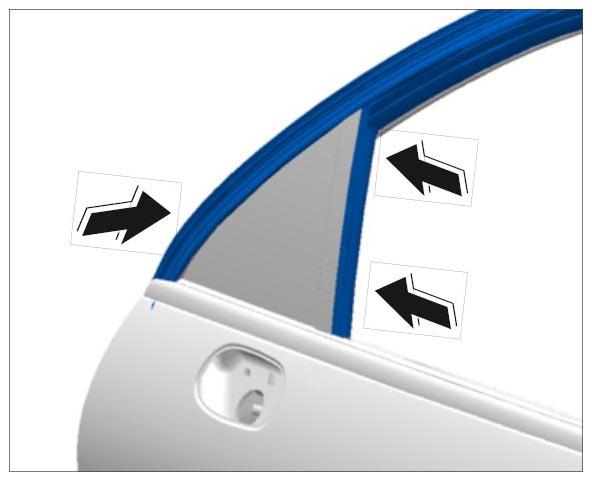

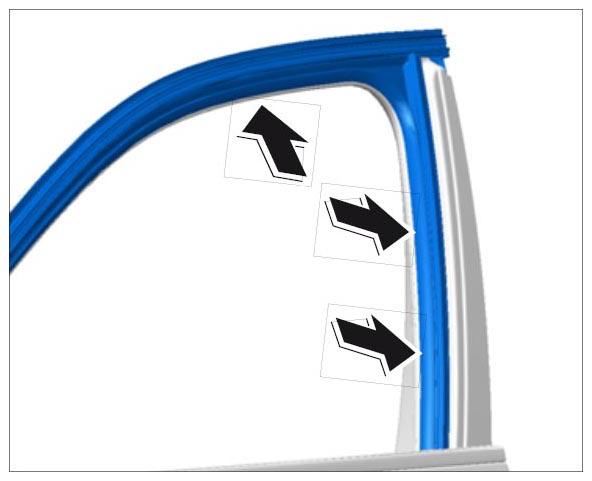

Fit window guide on the door window frame at the top and rear.

Fig 6: Fitting Rear Window Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

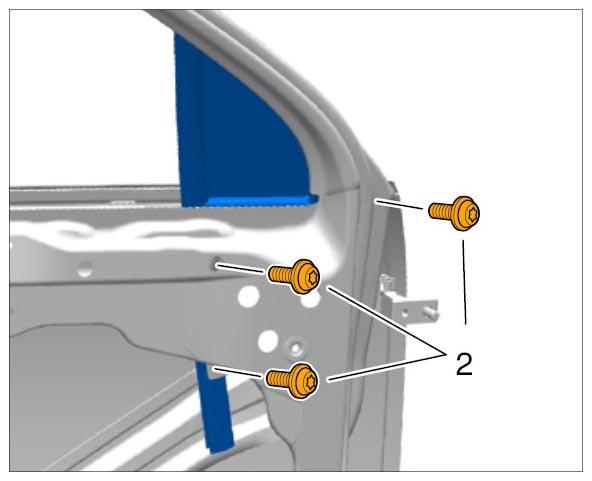

Tighten inner fastening screw -2- to Tightening torque 4.5 Nm (3.5 ftlb.) .

Fig 7: Securing Corner Window Pane On Inside
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
