Double Cartridge Press

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Wear personal protective gear.

Information

• In addition to this information, observe the relevant job descriptions for installing car windows!

1. Preparing cartridge components A and B
   1. 1.1. Pierce the membrane in the nozzle connection of components A and B (aluminum cartridge) -H5, H6-  with a screwdriver and extend the opening.
   2. 1.2. Remove flanged cover on end of cartridge.
      Fig 1: Removing Flanged Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw on mixing nozzle.

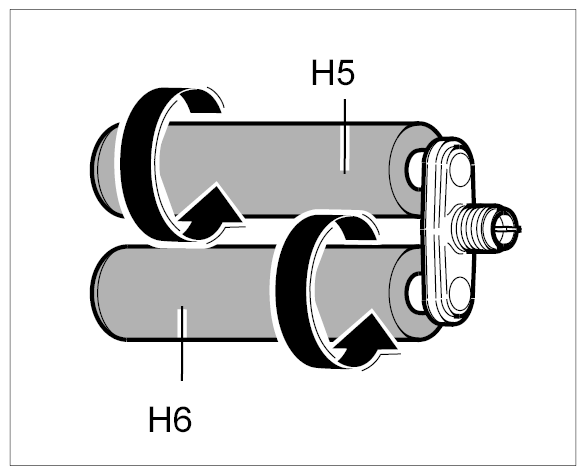

   1. 2.1. Screw both cartridges -H5, H6-  onto the mixing nozzle.
      Fig 2: Turning Cartridges Onto Mixing Nozzle

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Placing cartridges in the double cartridge gun
   1. 3.1. Move pressure piston back fully.

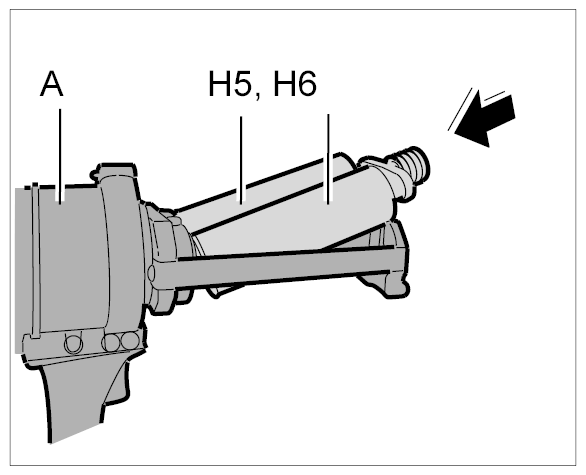

   2. 3.2. Insert the double cartridges -H5, H6-  into the bonding gun -A-  .
      Fig 3: Inserting Double Cartridges

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Press out the adhesive

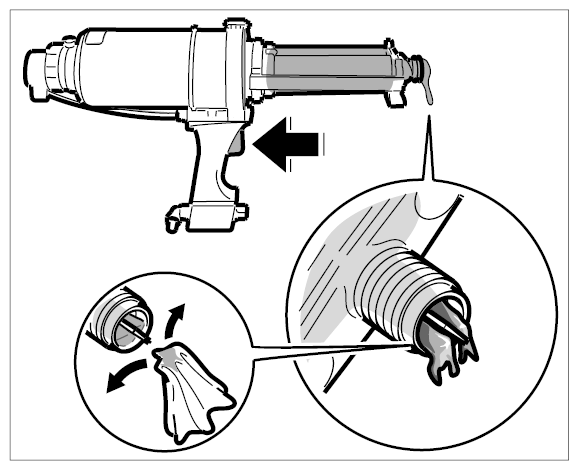

   1. 4.1. By activating the valve -arrow-  allow the pressure piston to move out slowly until both components of the bonding material emerge at the mixing pipe.
   2. 4.2. Wipe off the emerging adhesive.
      Fig 4: Pressing Adhesive

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Screwing on processing nozzle
   1. 5.1. Screw processing nozzle -H8-  onto the mixing nozzle -H7-  .
      Fig 5: Turning Screw Of Processing Nozzle

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Align processing nozzle
   1. 6.1. Turn the processing nozzle on the mixing nozzle until the illustrated position is reached.
      Fig 6: Aligning Processing Nozzle

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Mixing adhesive components

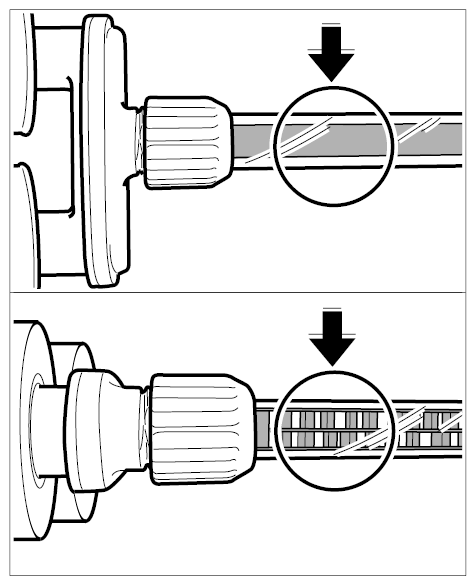

   1. 7.1. By activating the valve -arrow-  allow the pressure piston to move out slowly until the adhesive is visible in the processing pipe.

      Information

      In this position, when the mixing nozzle is horizontal, the closed surfaces must be visible on the processing nozzle from above and below and the mixer insert's mixing plates must be visible from the sides.

      Fig 7: Pressing Adhesive

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Affixing car window

   Information

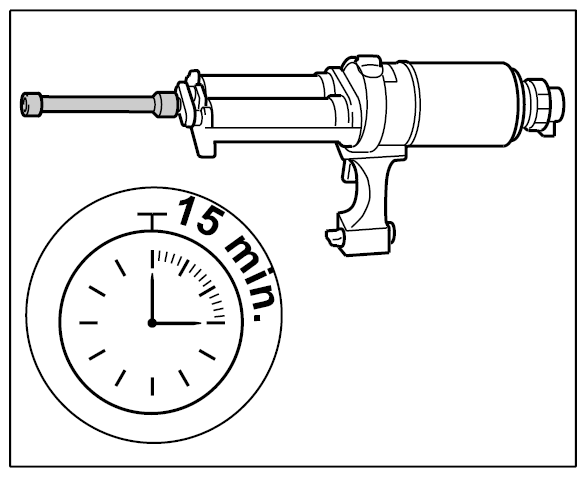

   • The bonding material has an open time of 15 min  , which means that the bonding material must be applied and the car window must be assembled within this period of time.
   • In order to ensure that the substance is completely mixed, apply a 30 mm long adhesive bead of fresh adhesive to a piece of cardboard before processing.
     Fig 8: Identifying Bonding Material Applying Time

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
