Tools And Materials

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The following tools and materials are required for removing and installing the rear window with 2-component adhesive:

  1. A  - Double cartridge gun VAS 5237
  2. B  - Suction cups VAG 1344
  3. C  - Special electric cutter (fine) VAG 1561 A
  4. D  - Flashing knife, U-type 639.031.130.22
  5. H  - 2-component window bonding agent 000.043.300.94, contains set components H1-H8
  6. H1  - Cleaning solution
  7. H2  - Primer
  8. H3  - Activator
  9. H4  - Swab
  10. H5  - Cartridge, component A
  11. H6  - Cartridge, component B
  12. H7  - Mixing nozzle
  13. H8  - Processing nozzle

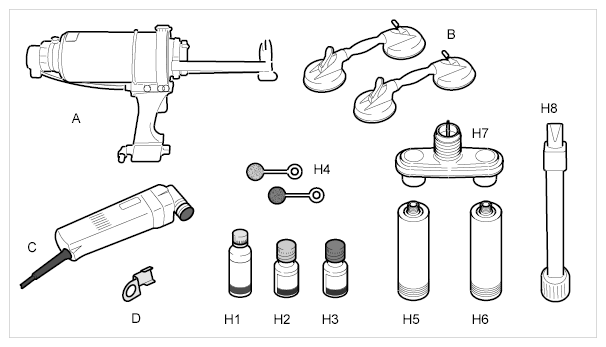

    14. Fig 1: Identifying Tools And Materials
    G09940009Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. A  - Removal kit for flush bonded windows VAG 1474 B, contains set components A1-A9
  2. B  - Cutting thread
  3. A1  - Guide rail
  4. A2  - Cutting tool (wire holder)
  5. A3  - Spooling device
  6. A4  - Awl
  7. A5  - Guide rail
  8. A6  - Filler
  9. A7  - Steering roller with arm bracket
  10. A8  - Handle
  11. A9  - Square cutting wire

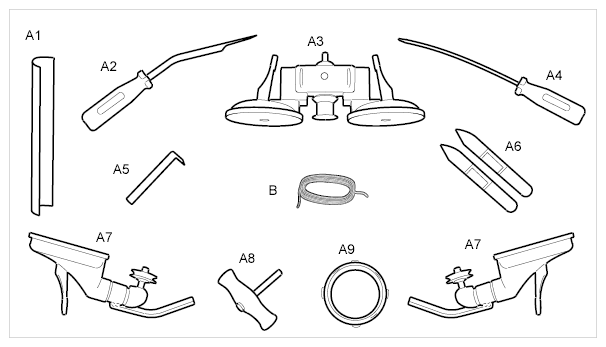

    12. Fig 2: Identifying Guide Rail, Handle And Steering Roller
    G09940010Courtesy of PORSCHE CARS NORTH AMERICA, INC.
