Technical Values: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2

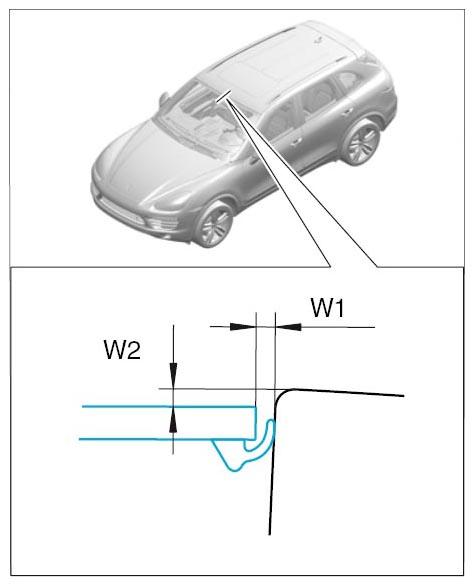

Windscreen to roof (W1)   Gap dimension 2.6 mm +/-0.5 mm
G09940005

Windscreen to roof
Windscreen to roof (W2)   Gap dimension 2.4 mm +1 mm
G09940006

Windscreen to roof
