Separating Body Components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

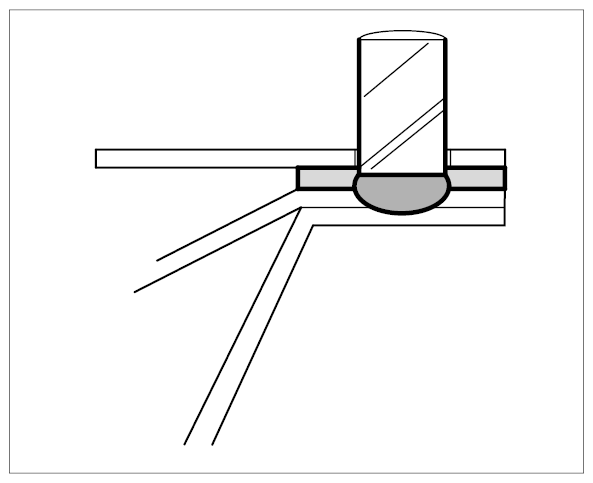

In the case of 3-layer spot-welded panel joints with a hardened bonded layer in which only the outer panel needs to be replaced, drill the outer panel in the area of the spotwelds sufficiently without damaging the spotweld and bonded joint in the second component layer.

Fig 1: Separating Body Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

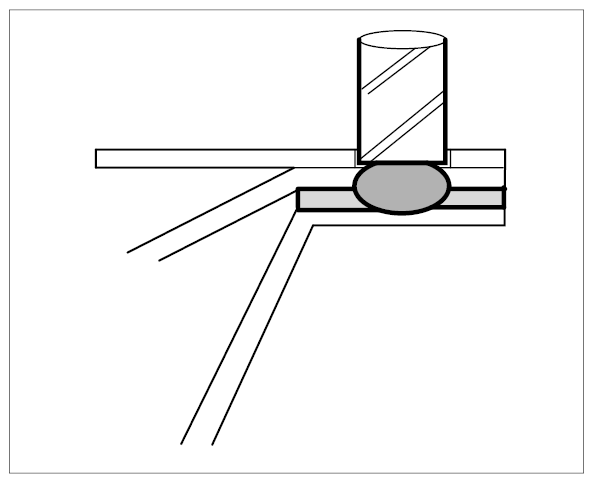

In the case of 3-layer spot-welded panel joints with a hardened bonded layer on the outer panel, drill the outer panel in the area of the spotwelds sufficiently without damaging the spotweld in the second component layer.

Fig 2: Separating Bonded Body Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

After removing the loosened body part, old adhesive must be removed and any uneven spots must be sanded down.

The flange area must then be pre-treated for bonding.
