Technical Values

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2

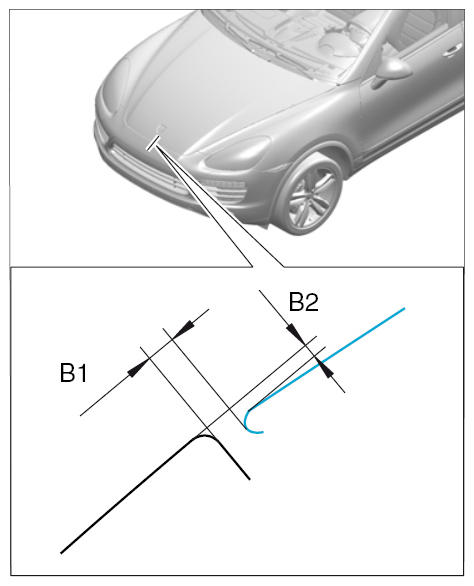

Front apron to front lid (B1) B1 Gap dimension 4 mm +/-1 mm
G09937882

Front apron to front lid

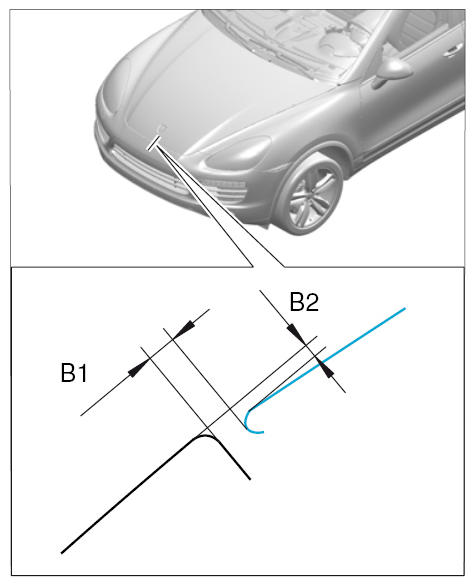

Front apron to front lid (B2)   Gap dimension 2 mm +/-1 mm
G09937883

Front apron to front lid

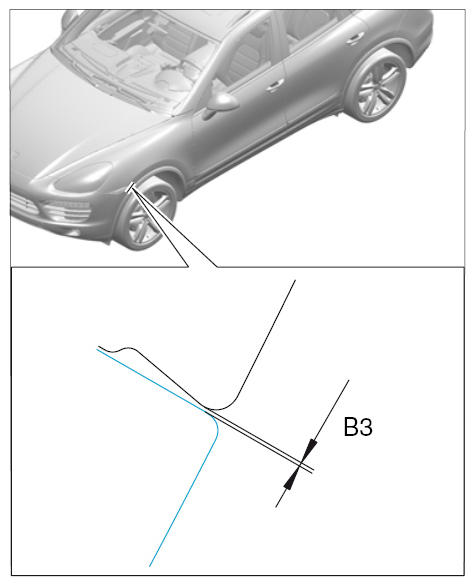

Front apron to wing (B3)   Gap dimension 0.5 mm +/-0.5 mm
G09937884

Front apron to wing
Front apron to headlight (S1)   Gap dimension 4 mm +/-1 mm
G09937885

Front apron to headlight

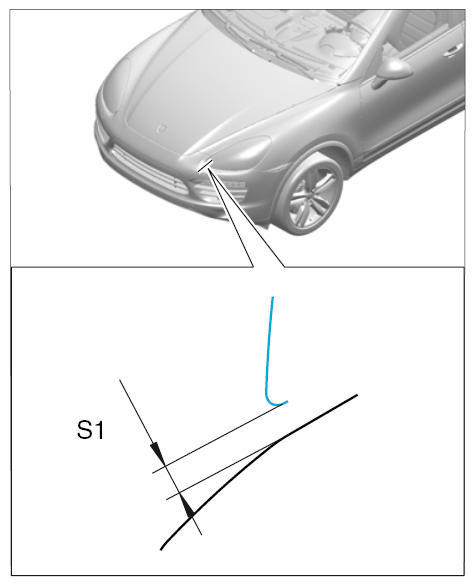

Headlight to front apron (S1)   Gap dimension 4 mm +/-1 mm
G09937886

Headlight to front apron
Headlight to wing (S2)   Gap dimension 3.6 mm +/-0.5 mm
G09937887

Headlight to top of wing

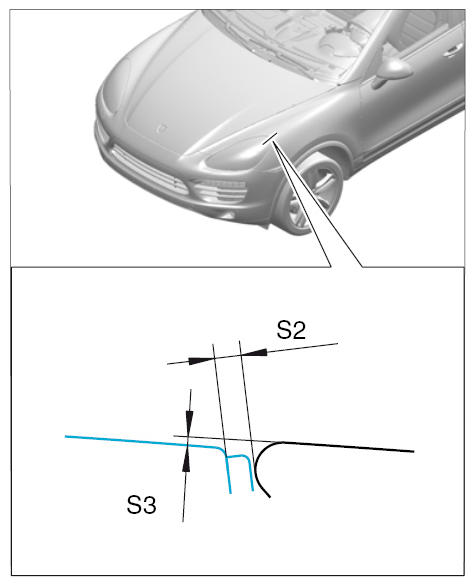

Headlight to wing (S3)   Gap dimension 1.2 mm +/-0.5 mm
G09937888

Headlight to top of wing

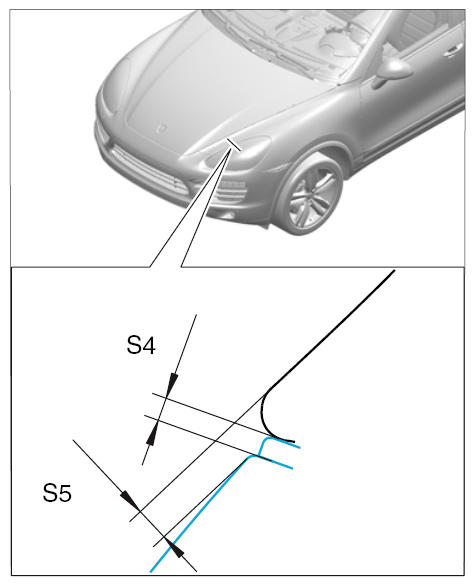

Headlight to inner wing (S4)   Gap dimension 3.2 mm +/-0.5 mm
G09937889

Headlight to inner wing
Headlight to inner wing (S5)   Gap dimension 4.7 mm +/-0.5 mm
G09937890

Headlight to inner wing
Headlight to outer wing (S6)   Gap dimension 3.2 mm +/-0.5 mm
G09937891

Headlight to outer wing

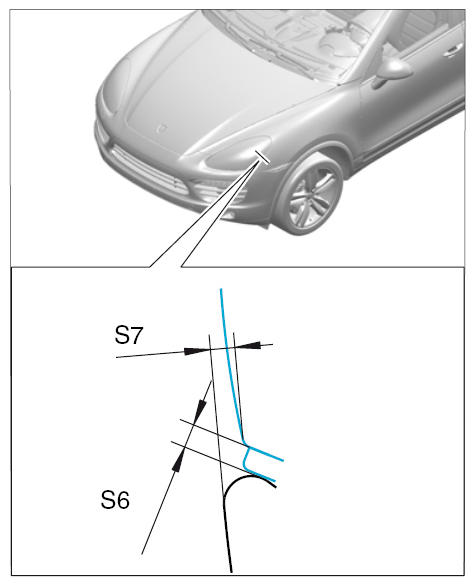

Headlight to outer wing (S7)   Gap dimension 3 mm +/-0.5 mm
G09937892

Headlight to outer wing
Lid to wing (K1)   Gap dimension 4 mm +/-1 mm
G09937893

Lid to wing
Lid to wing (K2)   Gap dimension 1 mm +/-0.5 mm
G09937894

Lid to wing
Wing to door (K3)   Gap dimension 3.7 mm +/-0.5 mm
G09937895

Wing to door
Wing to door (K3b) Door only recessed Gap dimension 0 mm +1 mm
G09937896

Wing to door
Wing to A-pillar (K4)   Gap dimension 2.4 mm +/-1 mm
G09937897

Wing to A-pillar

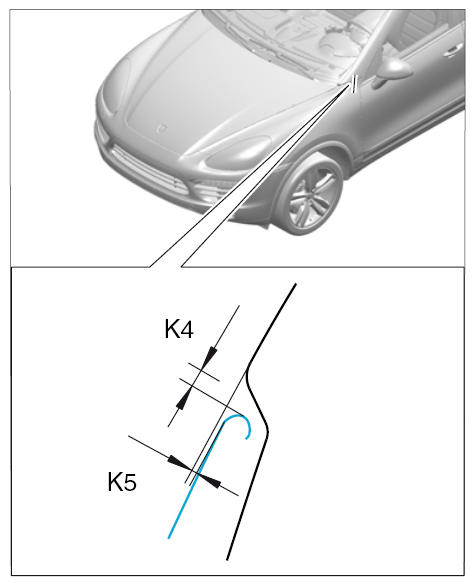

Wing to A-pillar (K5)   Gap dimension 1 mm +/-1 mm
G09937898

Wing to A-pillar
Wing trim panel to door entry guard (K6)   Gap dimension 2.3 mm +/-1 mm
G09937899

Wing trim panel to door entry guard
Wing trim panel to door entry guard (K7)   Gap dimension 1.6 mm +/-0.7 mm
G09937900

Wing trim panel to door entry guard
Wing trim panel to door panel (K8)   Gap dimension 5.2 mm +/-0.8 mm
G09937901

Wing trim panel to door panel

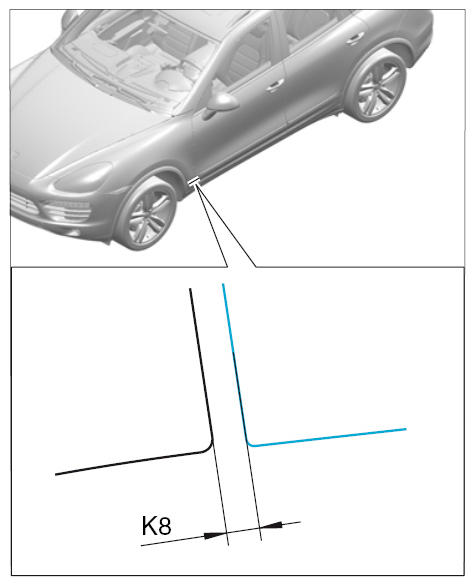

Wing trim panel to door panel (K8b) Door panel recessed Gap dimension 0 mm +0.5 mm -1.5 mm
G09937902

Wing trim panel to door panel
Front apron to front lid (B1)   Gap dimension 4 mm +/-1 mm
G09937903

Front apron to front lid
Front apron to front lid (B2)   Gap dimension 2 mm +/-1 mm
G09937904

Front apron to front lid
Lid to wing (K1)   Gap dimension 4 mm +/-1 mm
G09937905

Lid to wing

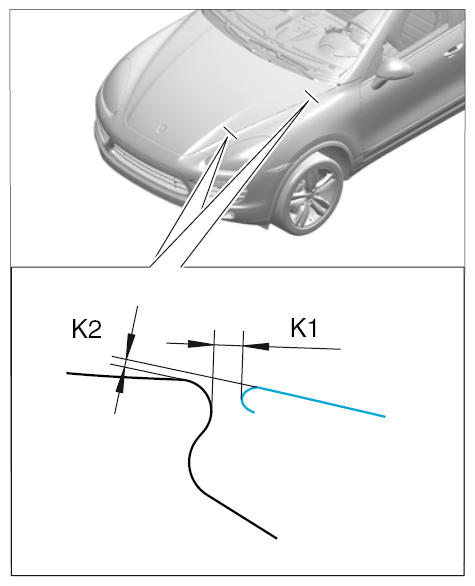

Lid to wing (K2)   Gap dimension 1 mm +/-0.5 mm
G09937906

Lid to wing

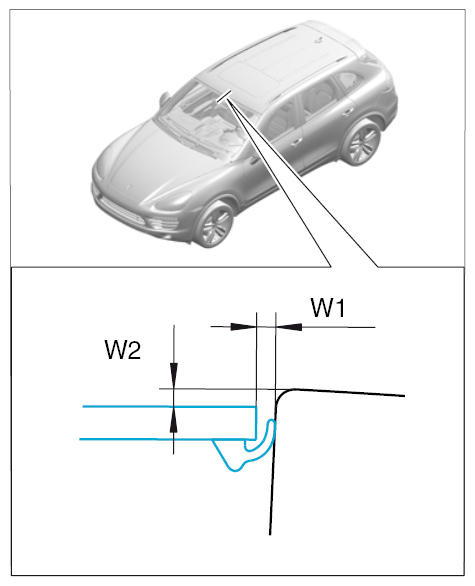

Windscreen to roof (W1)   Gap dimension 2.6 mm +/-0.5 mm
G09937907

Windscreen to roof
Windscreen to roof (W2)   Gap dimension 2.4 mm +1 mm
G09937908

Windscreen to roof
Wing to door (K3)   Gap dimension 3.7 mm +/-0.5 mm
G09937909

Wing to door

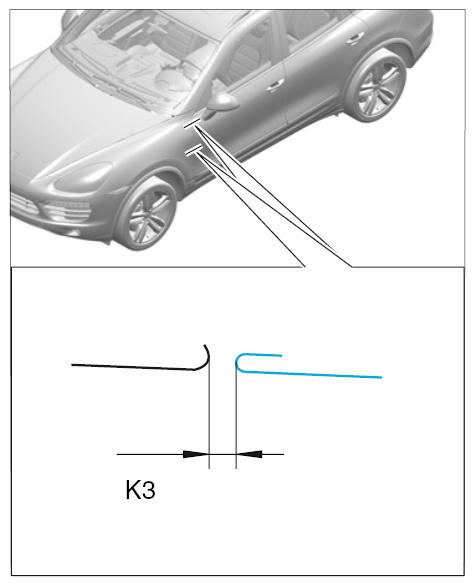

Wing to door (K3b) Door only recessed Gap dimension 0 mm -1 mm
G09937910

Wing to door
Door frame to side panel (T1)   Gap dimension 5.9 mm +/-2 mm
G09937911

Door frame to side panel

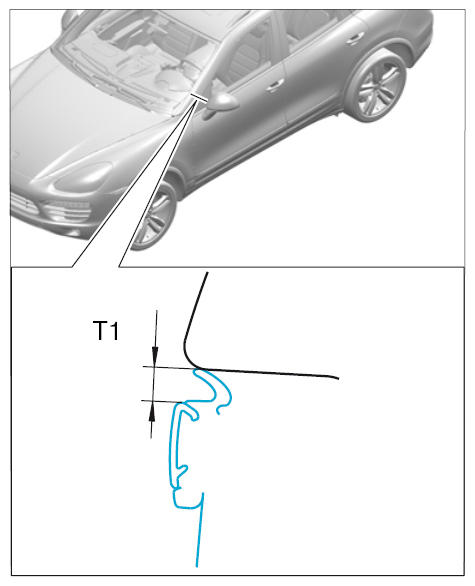

Door frame to side panel (T1b) Door frame only recessed Gap dimension 0 mm +2 mm
G09937912

Door frame to side panel
B-pillar trim on front door to B-pillar trim on rear door (T2)   Gap dimension 4.2 mm +/-1 mm
G09937913

B-pillar trim on front door to B-pillar trim on rear door
B-pillar trim on front door to B-pillar trim on rear door (T2b) Flush Gap dimension 0 mm +0.5 mm -1.5 mm
G09937914

B-pillar trim on front door to B-pillar trim on rear door

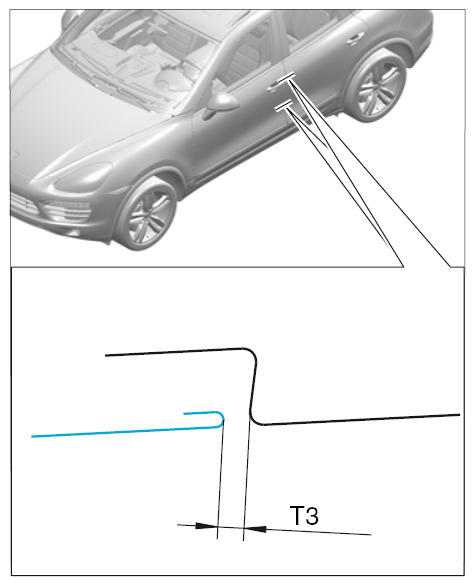

Front door to rear door (T3)   Gap dimension 4.2 mm +/-0.8 mm
G09937915

Front door to rear door
Front door to rear door (T3b) Rear door recessed Gap dimension 0 mm -1 mm
G09937916

Front door to rear door
Door panel to door entry guard (T4)   Gap dimension 4.8 mm +/-1.5 mm
G09937917

Door panel to door entry guard

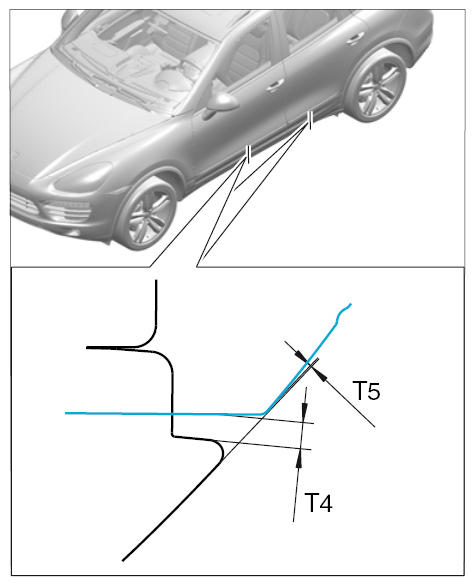

Door panel to door entry guard (T5)   Gap dimension 0.3 mm +0.5 mm -1.5 mm
G09937918

Door panel to door entry guard
Front door panel to rear door panel (T6)   Gap dimension 5.7 mm +1.2 mm -1 mm
G09937919

Front door panel to rear door panel
Front door panel to rear door panel (T6b) Flush Gap dimension 0 mm +0.5 mm -1.5 mm
G09937920

Front door panel to rear door panel

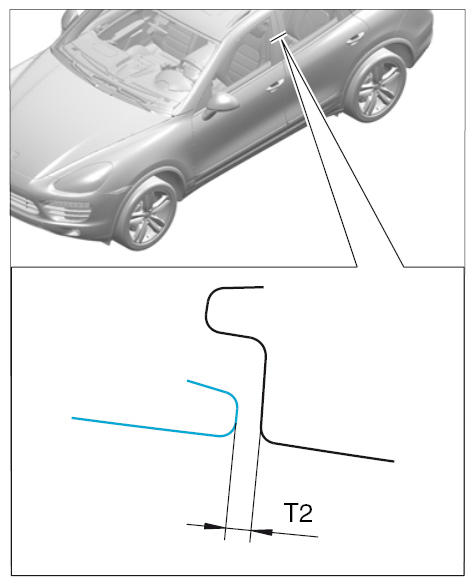

B-pillar trim on front door to B-pillar trim on rear door (T2)   Gap dimension 4.2 mm +/-1 mm
G09937921

B-pillar trim on front door to B-pillar trim on rear door
B-pillar trim on front door to B-pillar trim on rear door (T2b) Flush Gap dimension 0 mm +0.5 mm -1.5 mm
G09937922

B-pillar trim on front door to B-pillar trim on rear door
Front door to rear door (T3)   Gap dimension 4.2 mm +/-0.8 mm
G09937923

Front door to rear door
Front door to rear door (T3b) Rear door recessed Gap dimension 0 mm -1 mm
G09937924

Front door to rear door
Front door panel to rear door panel (T6)   Gap dimension 5.7 mm +1.2 mm -1 mm
G09937925

Front door panel to rear door panel

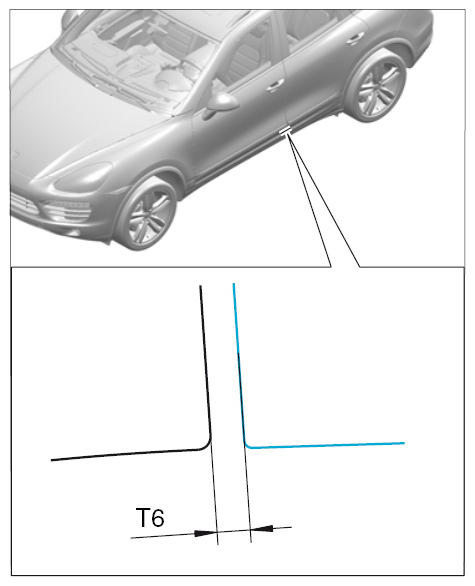

Front door panel to rear door panel (T6b) Flush Gap dimension 0 mm +0.5 mm -1.5 mm
G09937926

Front door panel to rear door panel
Door panel to door entry guard (T4)   Gap dimension 4.8 mm +/-1.5 mm
G09937927

Door panel to door entry guard
Door panel to door entry guard (T5)   Gap dimension 0.3 mm +0.5 mm -1.5 mm
G09937928

Door panel to door entry guard

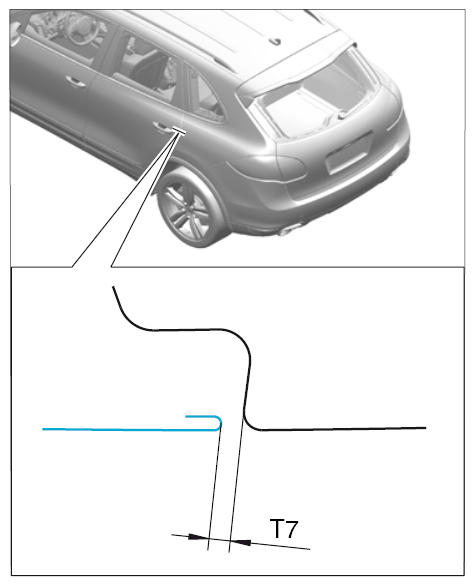

Rear door to side panel (T7)   Gap dimension 3.7 mm +/-0.5 mm
G09937929

Rear door to side panel
Rear door to side panel (T7b) Flush Gap dimension 0 mm -1 mm
G09937930

Rear door to side panel
C-pillar trim on rear door to C-pillar trim on side window (T8)   Gap dimension 3.8 mm +/-1 mm
G09937931

C-pillar trim on rear door to C-pillar trim on side window

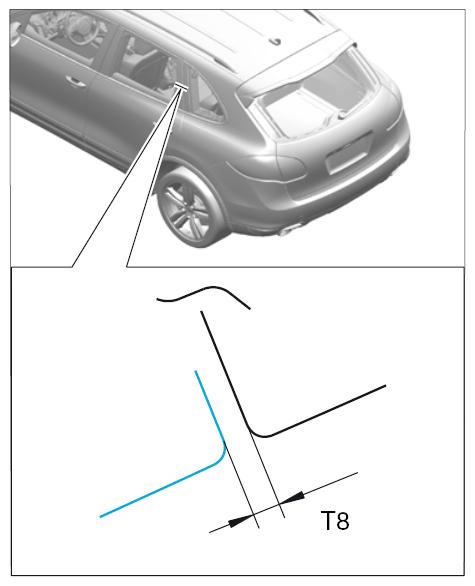

C-pillar trim on rear door to C-pillar trim on side window (T8b) Flush Gap dimension 0 mm +0.5 mm -1.5 mm
G09937932

C-pillar trim on rear door to C-pillar trim on side window
Door molding to side panel (T9)   Gap dimension 5.6 mm +/-2 mm
G09937933

Door moulding to side panel

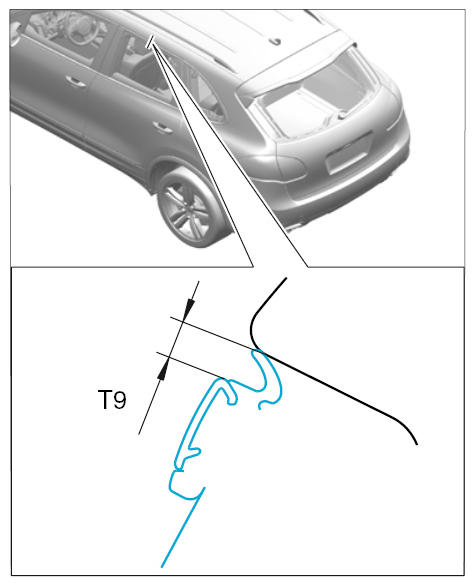

Door moulding to side panel (T9b) Flush Gap dimension 0 mm +2 mm
G09937934

Door moulding to side panel

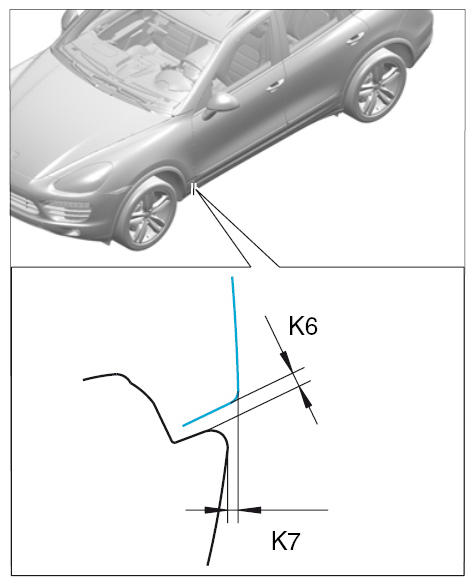

Wing trim panel to door entry guard (K6)   Gap dimension 2.3 mm +/-1 mm
G09937935

Wing trim panel to door entry guard
Wing trim panel to door entry guard (K7)   Gap dimension 1.6 mm +/-0.7 mm
G09937936

Wing trim panel to door entry guard
Door panel to door entry guard (T4)   Gap dimension 4.8 mm +/-1.5 mm
G09937937

Door panel to door entry guard
Door panel to door entry guard (T5)   Gap dimension 0.3 mm +0.5 mm -1.5 mm
G09937938

Door panel to door entry guard

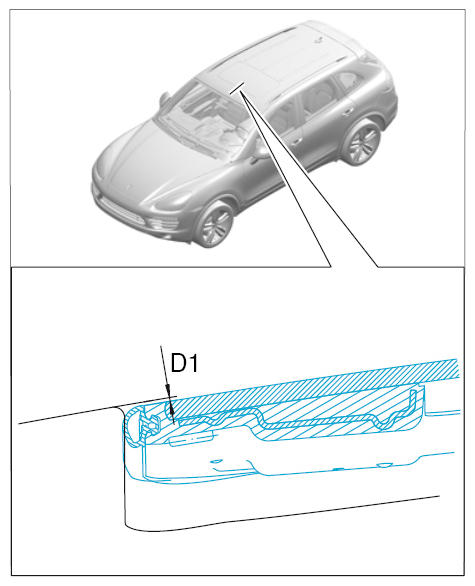

Roof to sliding-roof panel (D1) Panel only recessed Gap dimension 1 mm -1 mm
G09937939

Roof to sliding-roof panel

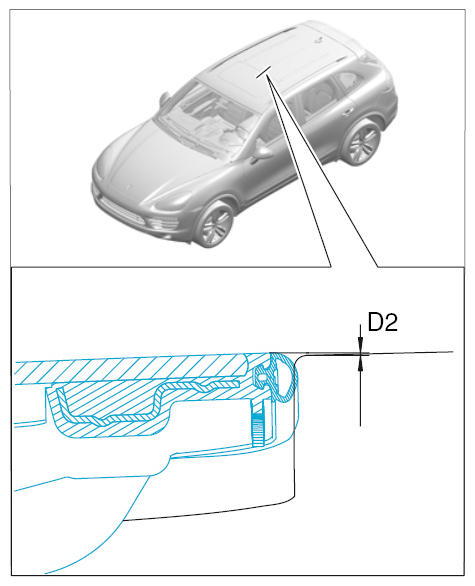

Sliding-roof panel to roof (D2) Panel only raised Gap dimension 0.8 mm +0.2 mm -0.8 mm
G09937940

Sliding-roof panel to roof
Roof to front lid (D3)   Gap dimension 10 mm +/-1.2 mm
G09937941

Roof to front lid

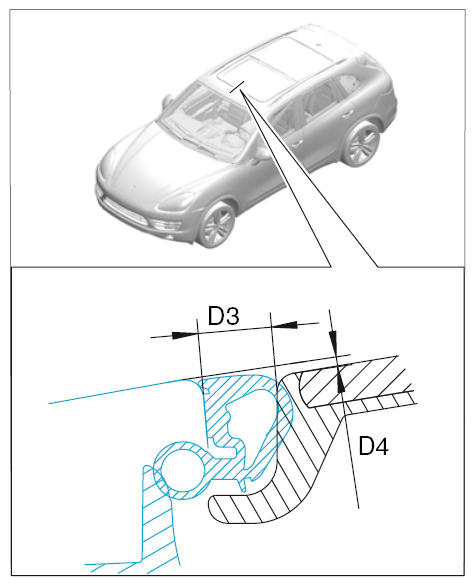

Roof to front lid (D4)   Gap dimension 1.4 mm +/-1 mm
G09937942

Roof to front lid
Front lid to rear lid (D5)   Gap dimension 2 mm +/-0.5 mm
G09937943

Front lid to rear lid

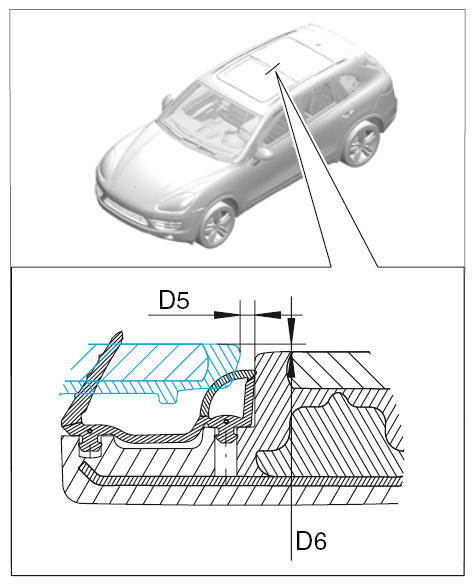

Front lid to rear lid (D6)   Gap dimension 1 mm +1.2 mm -0.6 mm
G09937944

Front lid to rear lid

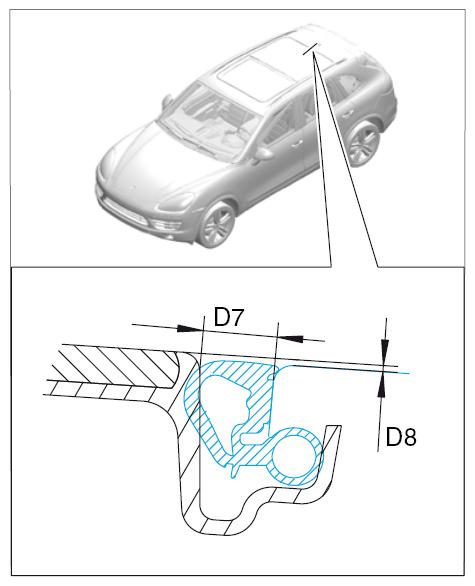

Rear lid to roof (D7)   Gap dimension 10 mm +/-1.2 mm
G09937945

Rear lid to roof
Rear lid to roof (D8)   Gap dimension 0.8 mm +/-1 mm
G09937946

Rear lid to roof

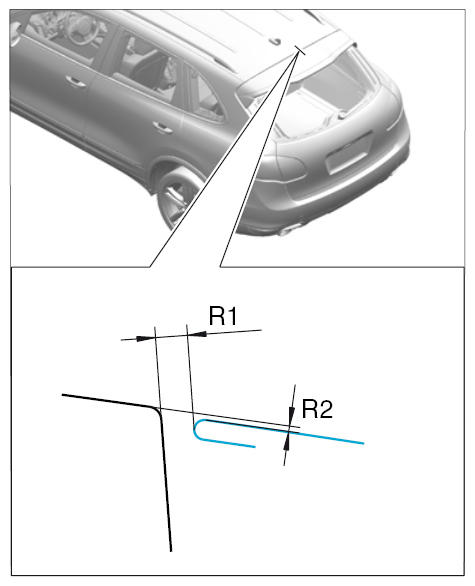

Rear lid to roof (R1)   Gap dimension 6 mm +/-1 mm
G09937947

Rear lid to roof
Rear lid to roof (R2)   Gap dimension 1 mm +/-1 mm
G09937948

Rear lid to roof

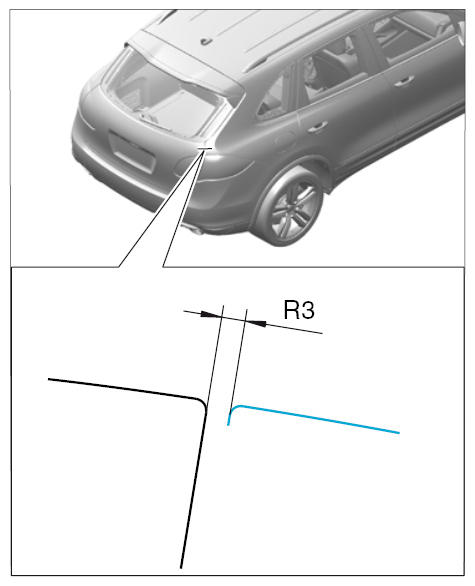

Rear lid to side panel (R3)   Gap dimension 4 mm +/-0.8 mm
G09937949

Rear lid to side panel
Rear lid to side panel (R3b) Flush Gap dimension 0 mm +/-0.8 mm
G09937950

Rear lid to side panel

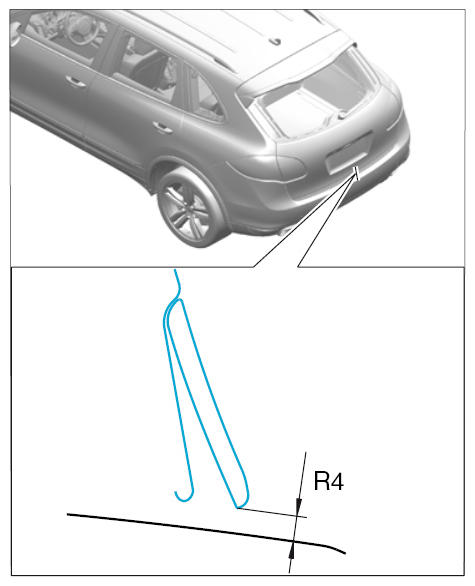

Rear lid to rear apron (R4)   Gap dimension 5 mm +/-1 mm
G09937951

Rear lid to rear apron
Rear door to side panel (T7)   Gap dimension 3.7 mm +/-0.5 mm
G09937952

Rear door to side panel
Rear door to side panel (T7b) Flush Gap dimension 0 mm -1 mm
G09937953

Rear door to side panel
Rear window to side panel (H1)   Gap dimension 4.5 mm +/-0.8 mm
G09937954

Rear window to side panel
Rear window to side panel (H2), single-glazed safety glass   Gap dimension 2 mm +/-0.8 mm
G09937955

Rear window to side panel
Rear window to side panel (H2), laminated safety glass   Gap dimension 1 mm +/-0.8 mm
G09937956

Rear window to side panel
Rear lid to side panel (R3)   Gap dimension 4 mm +/-0.8 mm
G09937957

Rear lid to side panel
Rear lid to side panel (R3b) Flush Gap dimension 0 mm +/-0.8 mm
G09937958

Rear lid to side panel

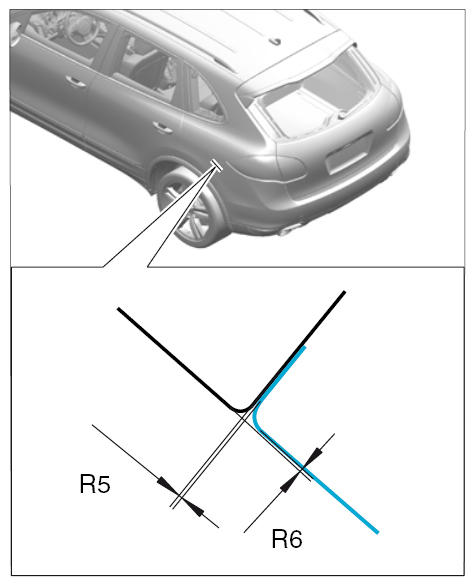

Rear apron to side panel (R5)   Gap dimension 0.5 mm +/-0.5 mm
G09937959

Rear apron to side panel
Rear apron to side panel (R6)   Gap dimension 0.5 mm +/-0.8 mm
G09937960

Rear apron to side panel

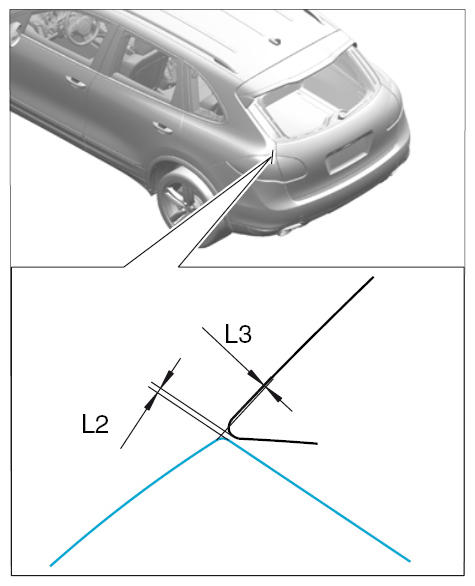

Tail light to side panel (L2)   Gap dimension 1 mm +/-0.5 mm
G09937961

Tail light to side panel
Tail light to side panel (L3)   Gap dimension 0.5 mm +/-0.5 mm
G09937962

Tail light to side panel
Tail light to tail light on rear lid (L4)   Gap dimension 4 mm +/-0.8 mm
G09937963

Tail light to tail light on rear lid
Tail light to tail light on rear lid (L5)   Gap dimension 0.1 mm +/-0.8 mm
G09937964

Tail light to tail light on rear lid

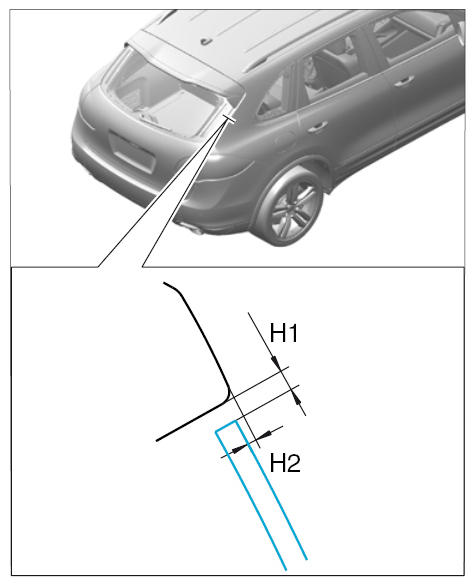

Rear window to side panel (H1)   Gap dimension 4.5 mm +/-0.8 mm
G09937965

Rear window to side panel
Rear window to side panel (H2) Heat-insulating glass (single-glazed safety glass) Gap dimension 2 mm +/-0.8 mm
G09937966

Rear window to side panel
Rear window to side panel (H2) Insulating glass (laminated safety glass) Gap dimension 1 mm +/-0.8 mm
G09937967

Rear window to side panel

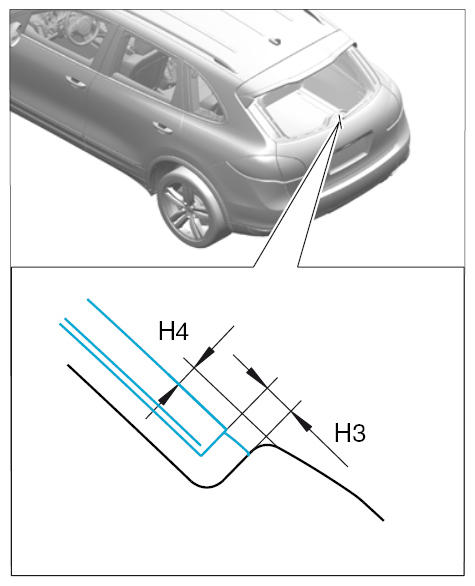

Rear window to rear lid (H3)   Gap dimension 4.5 mm +/-0.8 mm
G09937968

Rear window to rear lid
Rear window to rear lid (H4) Heat-insulating glass (single-glazed safety glass) Gap dimension 3 mm +/-0.5 mm
G09937969

Rear window to rear lid
Rear window to rear lid (H4) Insulating glass (laminated safety glass) Gap dimension 2 mm +/-0.5 mm
G09937970

Rear window to rear lid
Tank cap to side panel (D9)   Gap dimension 2.5 mm +/-0.3 mm
G09937971

Tank cap to side panel

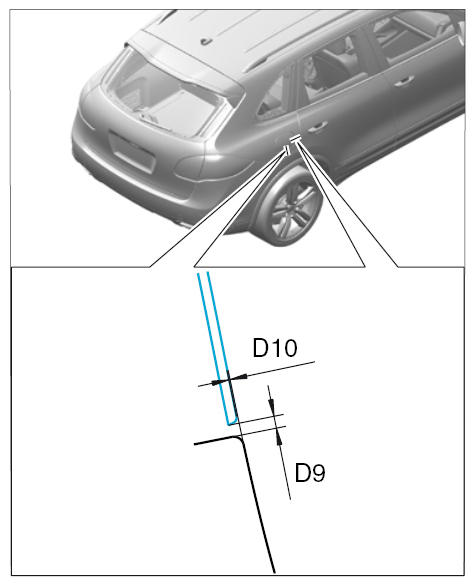

Tank cap to side panel (D10) Tank cap only recessed slightly Gap dimension 0.25 mm
G09937972

Tank cap to side panel
Rear lid to rear apron (R4)   Gap dimension 5 mm +/-1 mm
G09937973

Rear lid to rear apron
Rear apron to side panel (R5)   Gap dimension 0.5 mm +/-0.5 mm
G09937974

Rear apron to side panel
Rear apron to side panel (R6)   Gap dimension 0.5 mm +/-0.8 mm
G09937975

Rear apron to side panel
Tail light to rear apron (L1)   Gap dimension 2.3 mm +/-1 mm
G09937976

Tail light to rear apron
Rear spoiler to rear lid (H5)   Gap dimension 0.8 mm +/-0.5 mm
G09937977

Rear spoiler to rear lid

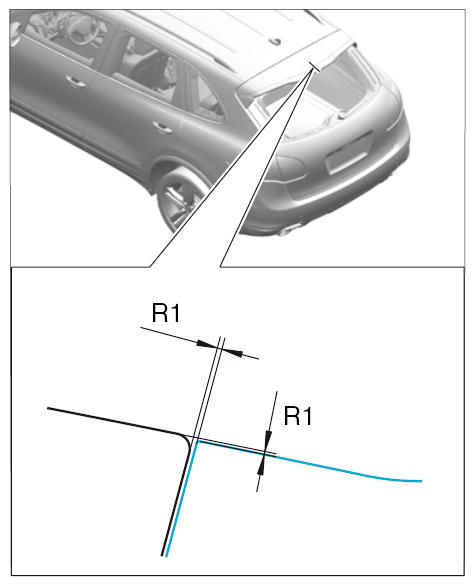

Rear spoiler to rear lid (H6)   Gap dimension 0.5 mm +/-0.5 mm
G09937978

Rear spoiler to rear lid
Rear spoiler to side panel (H7)   Gap dimension 4 mm +/-1 mm
G09937979

Rear spoiler to side panel

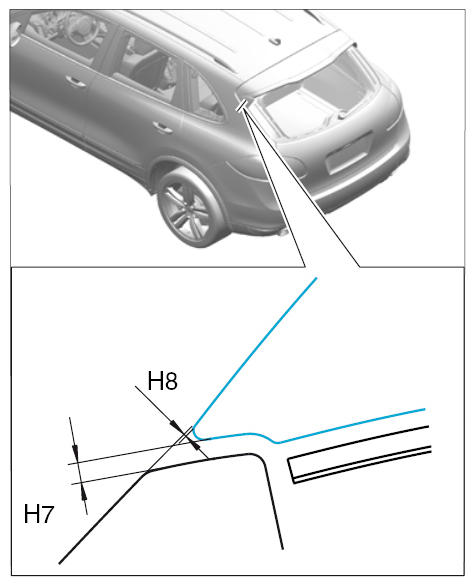

Rear spoiler to side panel (H8)   Gap dimension 0.5 mm +/-1 mm
G09937980

Rear spoiler to side panel

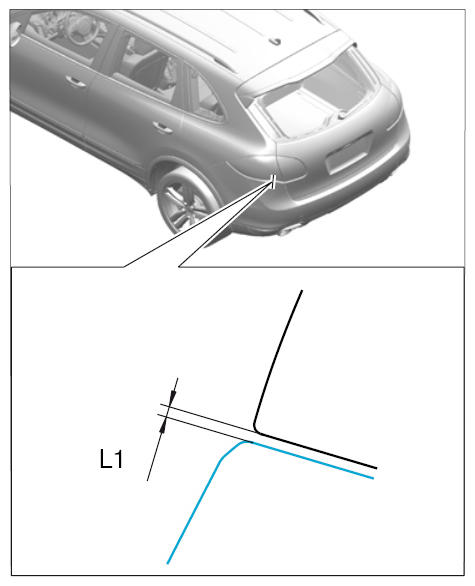

Tail light to rear apron (L1)   Gap dimension 2.3 mm +/-1 mm
G09937981

Tail light to rear apron
Tail light to side panel (L2)   Gap dimension 1 mm +/-0.5 mm
G09937982

Tail light to side panel
Tail light to side panel (L3)   Gap dimension 0.5 mm +/-0.5 mm
G09937983

Tail light to side panel

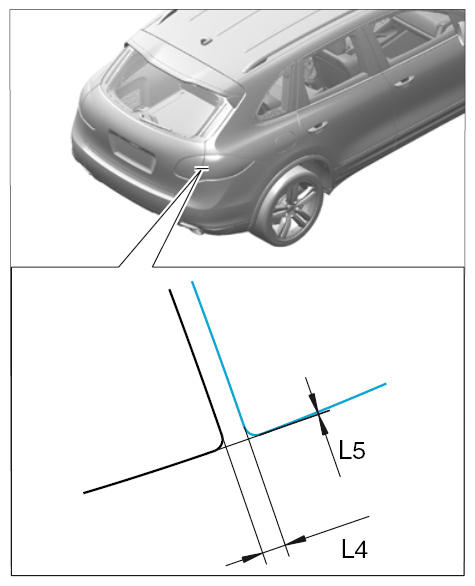

Tail light to tail light on rear lid (L4)   Gap dimension 4 mm +/-0.8 mm
G09937984

Tail light to tail light on rear lid
Tail light to tail light on rear lid (L5)   Gap dimension 0.1 mm +/-0.8 mm
G09937985

Tail light to tail light on rear lid

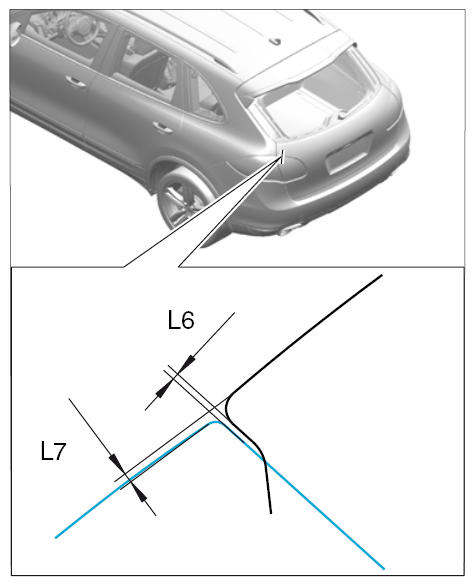

Tail light to top of rear lid (L6)   Gap dimension 1 mm +/-0.5 mm
G09937986

Tail light to top of rear lid
Tail light to top of rear lid (L7)   Gap dimension 1.5 mm +/-0.5 mm
G09937987

Tail light to top of rear lid

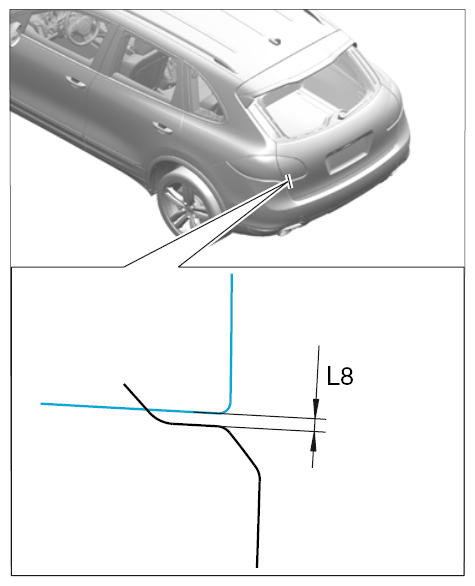

Tail light to bottom of rear lid (L8)   Gap dimension 2.3 mm +/-1 mm
G09937988

Tail light to bottom of rear lid
scientia non olet · About LEMON Manuals
