Gap Dimensions Of Rear Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 6 mm+/-1 mm

Fig 1: Identifying Rear Lid To Roof Dimension

G09938054

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+/-1 mm

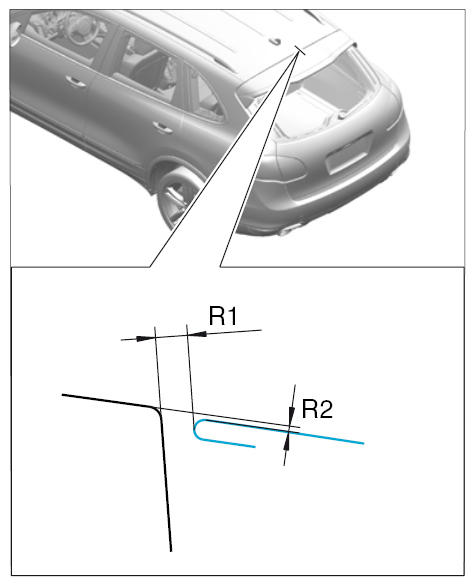

Fig 2: Identifying Rear Lid To Roof Dimension

G09938055

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4 mm+/-0.8 mm

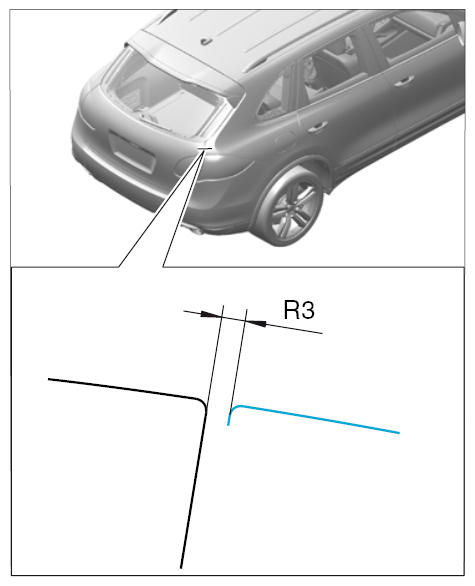

Fig 3: Identifying Rear Lid To Side Panel Dimension

G09938056

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+/-0.8 mm

Fig 4: Identifying Rear Lid To Side Panel Dimension

G09938057

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 5 mm+/-1 mm

Fig 5: Identifying Rear Lid To Rear Apron Dimension

G09938058

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
