Gap Dimensions Of Front Door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 3.7 mm+/-0.5 mm

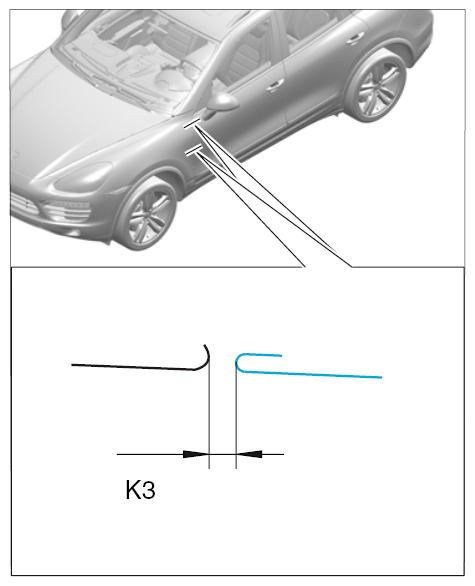

Fig 1: Identifying Wing To Door Dimensions

G09938016

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm-1 mm

Fig 2: Identifying Wing To Door Dimensions

G09938017

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 5.9 mm+/-2 mm

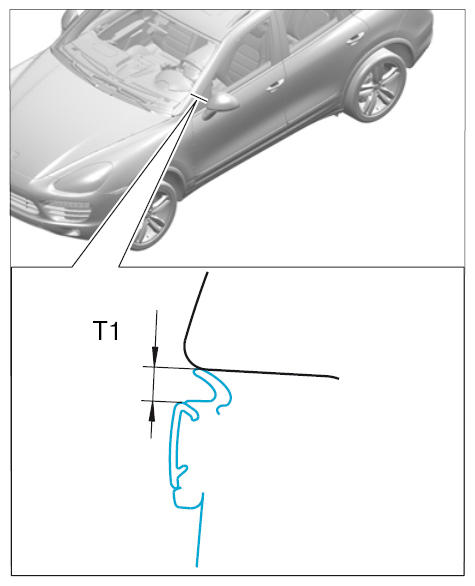

Fig 3: Identifying Door Frame To Side Panel Dimensions

G09938018

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+2 mm

Fig 4: Identifying Door Frame To Side Panel Dimensions

G09938019

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.2 mm+/-1 mm

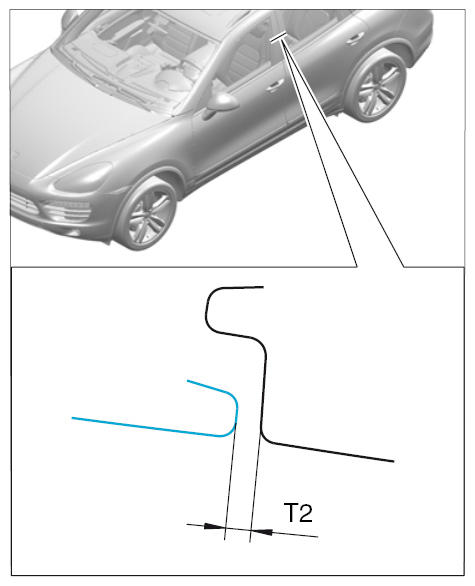

Fig 5: Identifying B-Pillar Trim Dimensions (Front To Rear Door)

G09938020

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

Fig 6: Identifying B-Pillar Trim Dimensions (Front To Rear Door)

G09938021

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.2 mm+/-0.8 mm

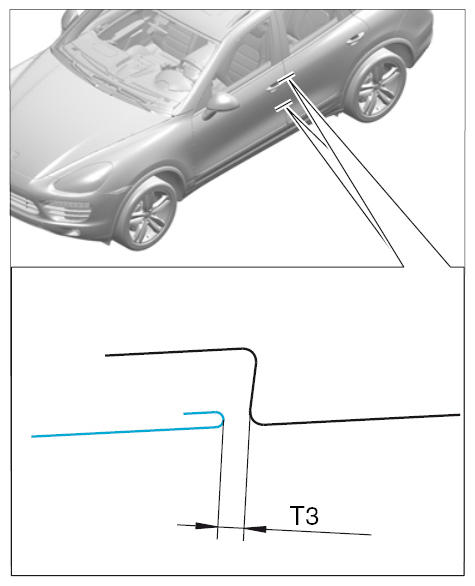

Fig 7: Identifying Front Door To Rear Door Dimensions

G09938022

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm-1 mm

Fig 8: Identifying Front Door To Rear Door Dimensions

G09938023

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.8 mm+/-1.5 mm

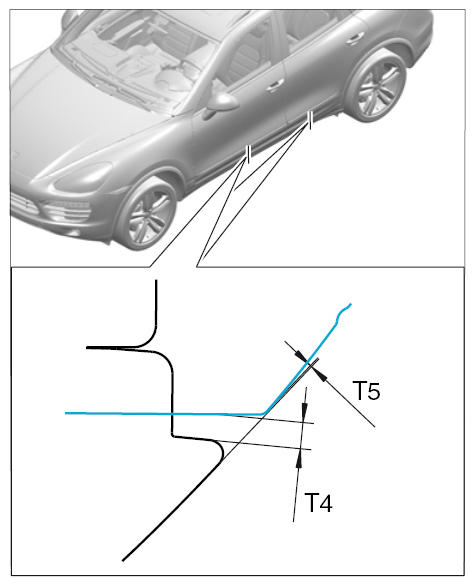

Fig 9: Identifying Door Panel To Door Entry Guard Dimensions

G09938024

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.3 mm+0.5 mm-1.5 mm

Fig 10: Identifying Door Panel To Door Entry Guard Dimensions

G09938025

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 5.7 mm+1.2 mm-1 mm

Fig 11: Identifying Front Door Panel To Rear Door Panel Identifying Door Panel To Door Entry Guard Dimensions

G09938026

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

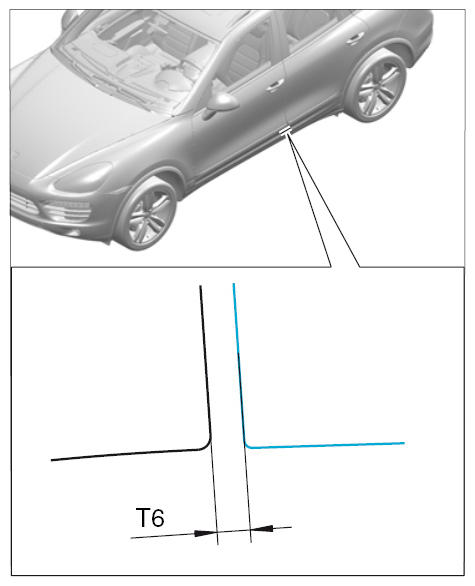

Fig 12: Identifying Front Door Panel To Rear Door Panel Dimensions

G09938027

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
