Gap Dimensions Of Windscreen

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 2.6 mm+/-0.5 mm

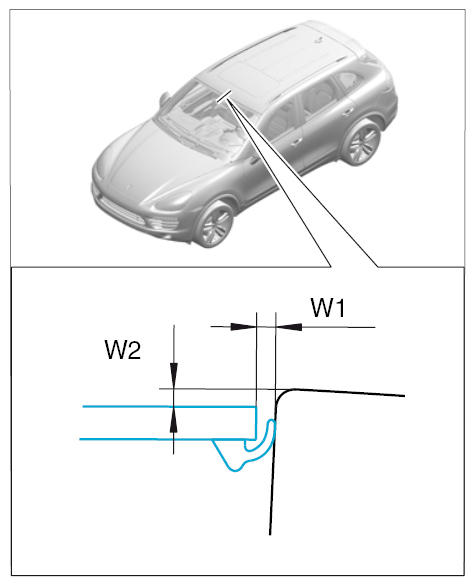

Fig 1: Identifying Windscreen To Roof Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2.4 mm+1 mm

Fig 2: Identifying Windscreen To Roof Dimensions

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
