Gap Dimensions Of Tail Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 2.3 mm+/-1 mm

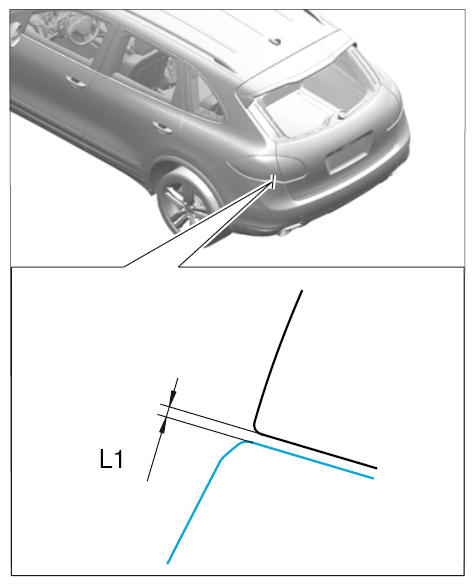

Fig 1: Identifying Tail Light To Rear Apron Dimension

G09938088

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+/-0.5 mm

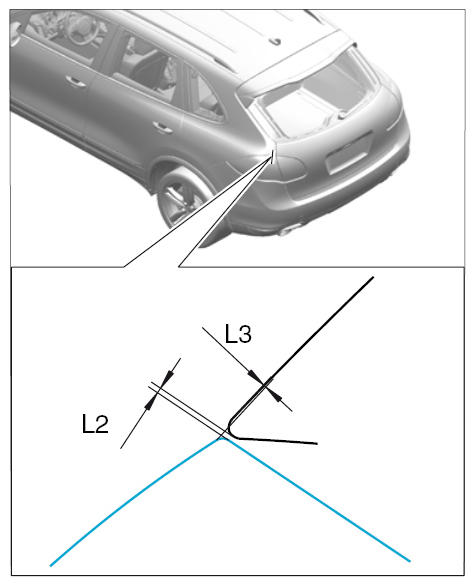

Fig 2: Identifying Tail Light To Side Panel Dimension

G09938089

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.5 mm+/-0.5 mm

Fig 3: Identifying Tail Light To Side Panel Dimension

G09938090

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4 mm+/-0.8 mm

Fig 4: Identifying Tail Light To Rear Lid Dimension

G09938091

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.1 mm+/-0.8 mm

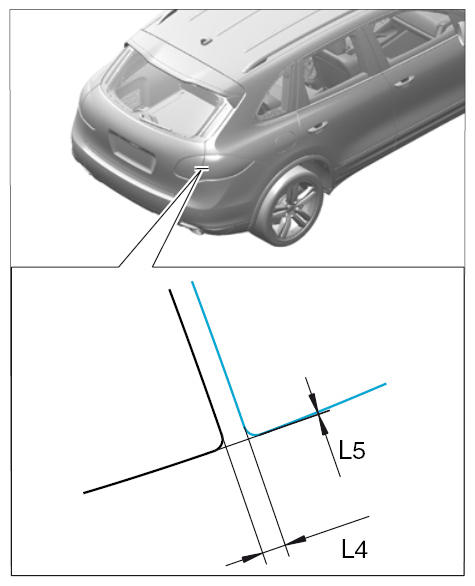

Fig 5: Identifying Tail Light To Rear Lid Dimension

G09938092

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+/-0.5 mm

Fig 6: Identifying Tail Light To Top Of Rear Lid Dimension

G09938093

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1.5 mm+/-0.5 mm

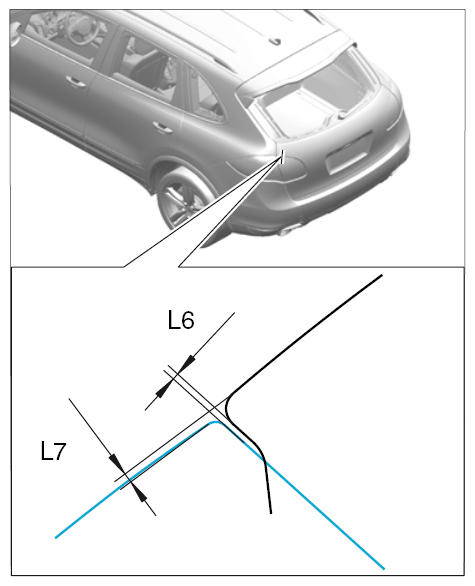

Fig 7: Identifying Tail Light To Top Of Rear Lid Dimension

G09938094

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2.3 mm+/-1 mm

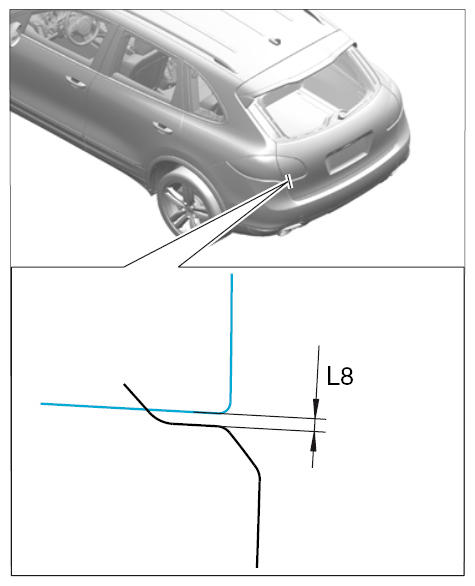

Fig 8: Identifying Tail Light To Bottom Of Rear Lid Dimension

G09938095

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
