Gap Dimensions Of Side Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 3.7 mm+/-0.5 mm

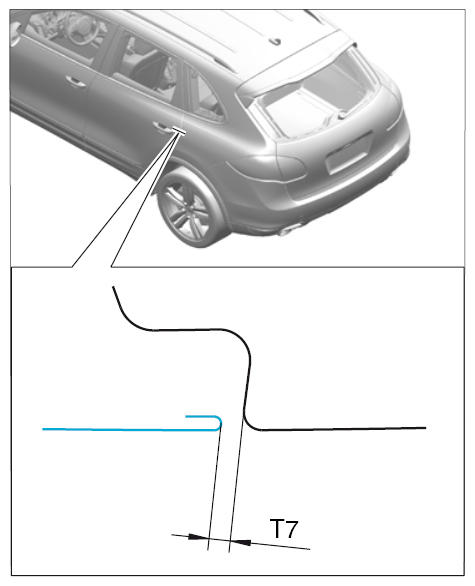

Fig 1: Identifying Rear Door To Side Panel Dimension

G09938059

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm-1 mm

Fig 2: Identifying Rear Door To Side Panel Dimension

G09938060

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.5 mm+/-0.8 mm

Fig 3: Identifying Rear Window To Side Panel Dimension

G09938061

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2 mm+/-0.8 mm

Fig 4: Identifying Rear Window To Side Panel Dimension

G09938062

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+/-0.8 mm

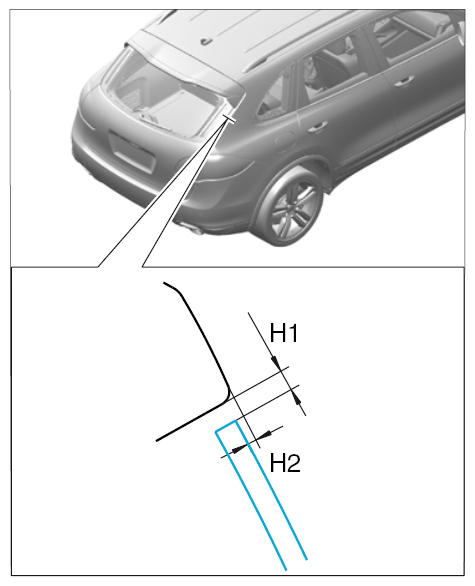

Fig 5: Identifying Rear Window To Side Panel Dimension

G09938063

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4 mm+/-0.8 mm

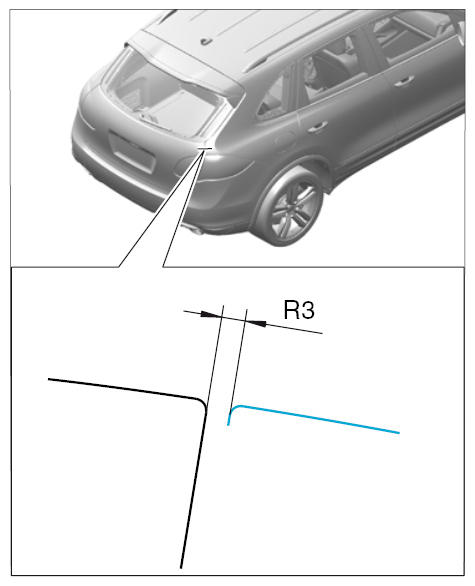

Fig 6: Identifying Rear Lid To Side Panel Dimension

G09938064

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+/-0.8 mm

Fig 7: Identifying Rear Lid To Side Panel Dimension

G09938065

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.5 mm+/-0.5 mm

Fig 8: Identifying Rear Apron To Side Panel Dimension

G09938066

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.5 mm+/-0.8 mm

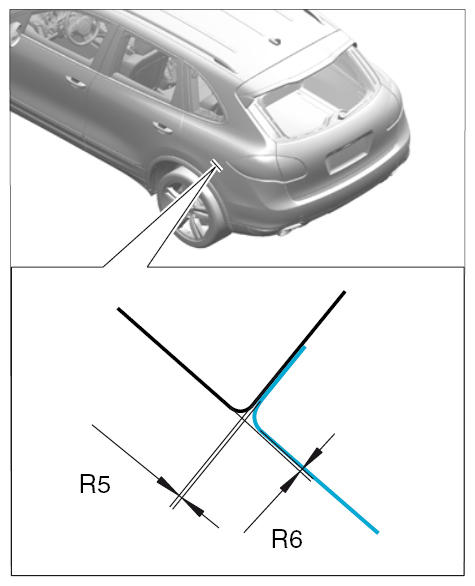

Fig 9: Identifying Rear Apron To Side Panel Dimension

G09938067

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+/-0.5 mm

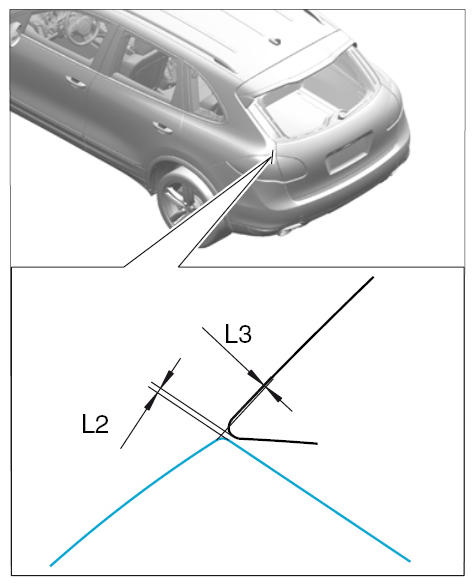

Fig 10: Identifying Tail Light To Side Panel Dimension

G09938068

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.5 mm+/-0.5 mm

Fig 11: Identifying Tail Light To Side Panel Dimension

G09938069

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4 mm+/-0.8 mm

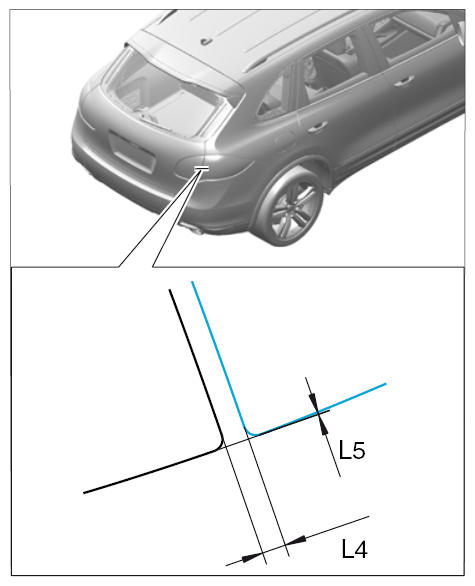

Fig 12: Identifying Tail Light To Rear Lid Dimension

G09938070

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.1 mm+/-0.8 mm

Fig 13: Identifying Tail Light To Rear Lid Dimension

G09938071

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
