Gap Dimensions Of Rear Window

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 4.5 mm+/-0.8 mm

Fig 1: Identifying Rear Window To Side Panel Dimension

G09938072

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2 mm+/-0.8 mm

Fig 2: Identifying Rear Window To Side Panel Dimension

G09938073

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+/-0.8 mm

Fig 3: Identifying Rear Window To Side Panel Dimension

G09938074

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.5 mm+/-0.8 mm

Fig 4: Identifying Rear Window To Rear Lid Dimension

G09938075

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3 mm+/-0.5 mm

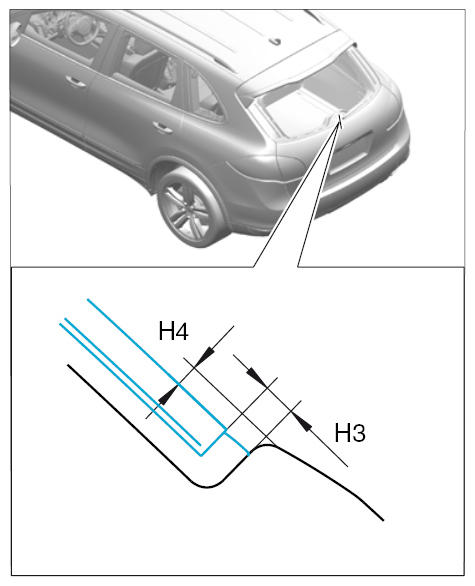

Fig 5: Identifying Rear Window To Rear Lid Dimension

G09938076

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2 mm+/-0.5 mm

Fig 6: Identifying Rear Window To Rear Lid Dimension

G09938077

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
