Gap Dimensions Of Rear Door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 4.2 mm+/-1 mm

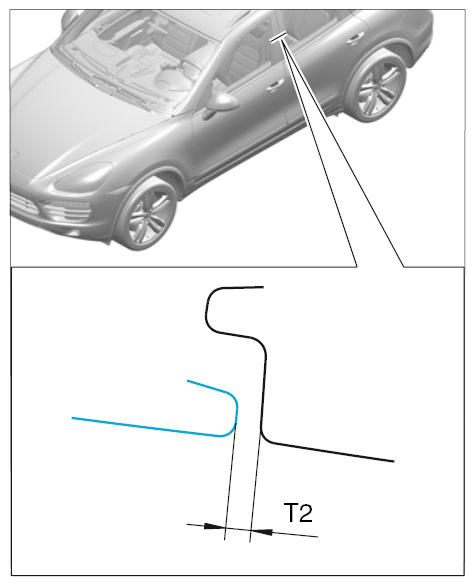

Fig 1: Identifying B-Pillar Trim Dimension (Front To Rear Door)

G09938028

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

Fig 2: Identifying B-Pillar Trim Dimension (Front To Rear Door)

G09938029

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.2 mm+/-0.8 mm

Fig 3: Identifying Front Door To Rear Door Dimension

G09938030

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm-1 mm

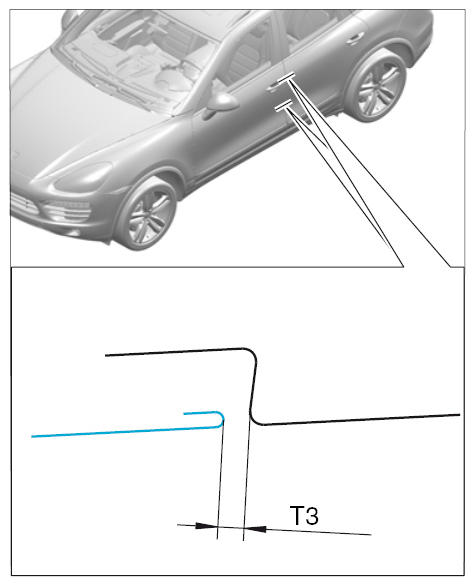

Fig 4: Identifying Front Door To Rear Door Dimension

G09938031

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 5.7 mm+1.2 mm-1 mm

Fig 5: Identifying Front Door Panel To Rear Door Panel Dimension

G09938032

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

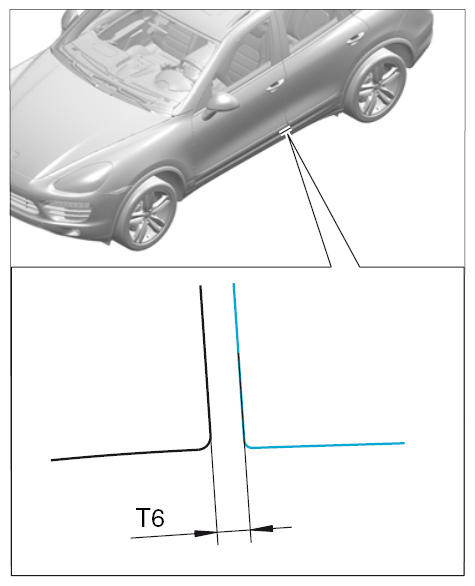

Fig 6: Identifying Front Door Panel To Rear Door Panel Dimension

G09938033

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.8 mm+/-1.5 mm

Fig 7: Identifying Door Panel To Door Entry Guard Dimension

G09938034

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.3 mm+0.5 mm-1.5 mm

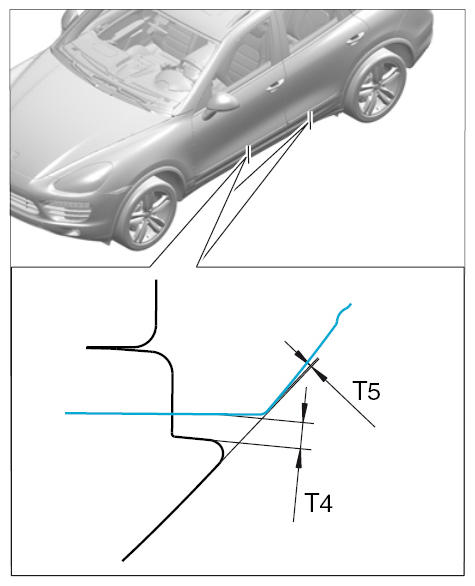

Fig 8: Identifying Door Panel To Door Entry Guard Dimension

G09938035

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3.7 mm+/-0.5 mm

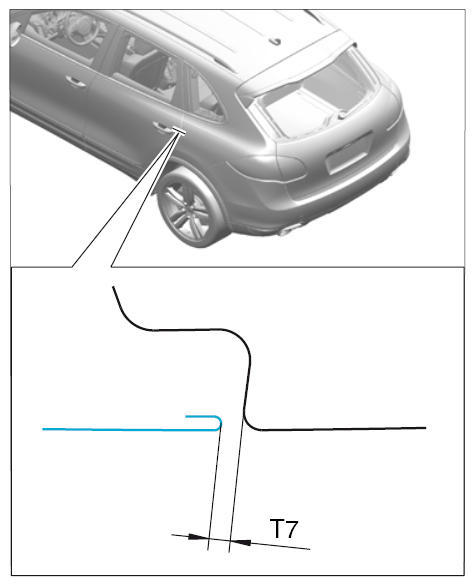

Fig 9: Identifying Rear Door To Side Panel Dimension

G09938036

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm-1 mm

Fig 10: Identifying Rear Door To Side Panel Dimension

G09938037

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3.8 mm+/-1 mm

Fig 11: Identifying C-Pillar Trim Dimension (Rear Door To Side Window)

G09938038

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

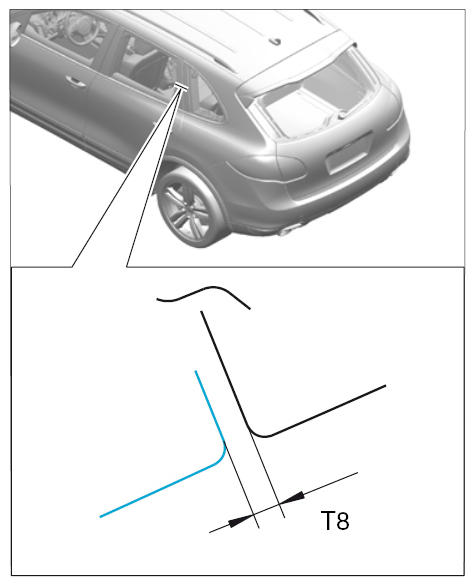

Fig 12: Identifying C-Pillar Trim Dimension (Rear Door To Side Window)

G09938039

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 5.6 mm+/-2 mm

Fig 13: Identifying Door Moulding To Side Panel Dimension

G09938040

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+2 mm

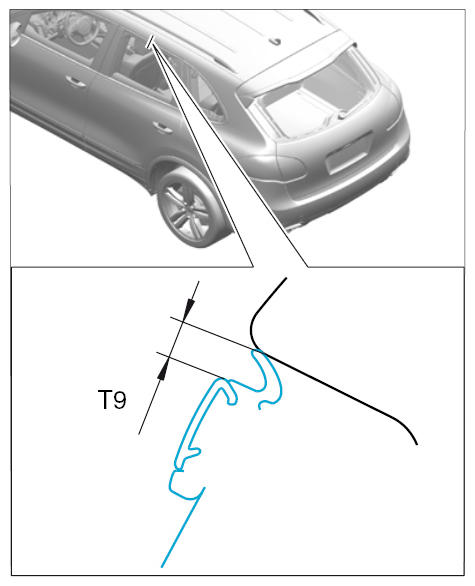

Fig 14: Identifying Door Moulding To Side Panel Dimension

G09938041

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
