Gap Dimensions Of Panorama Roof

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 10 mm+/-1.2 mm

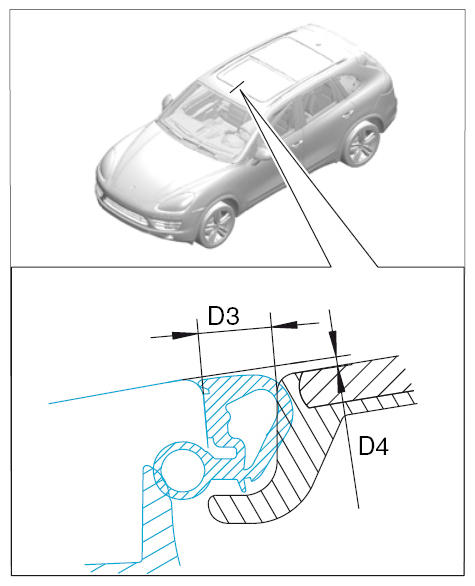

Fig 1: Identifying Roof To Front Lid Dimension

G09938048

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1.4 mm+/-1 mm

Fig 2: Identifying Roof To Front Lid Dimension

G09938049

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2 mm+/-0.5 mm

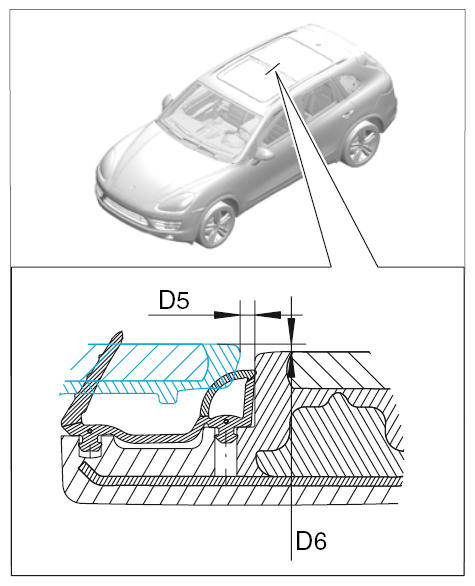

Fig 3: Identifying Front To Rear Lid Dimension

G09938050

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+1.2 mm-0.6 mm

Fig 4: Identifying Front To Rear Lid Dimension

G09938051

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 10 mm+/-1.2 mm

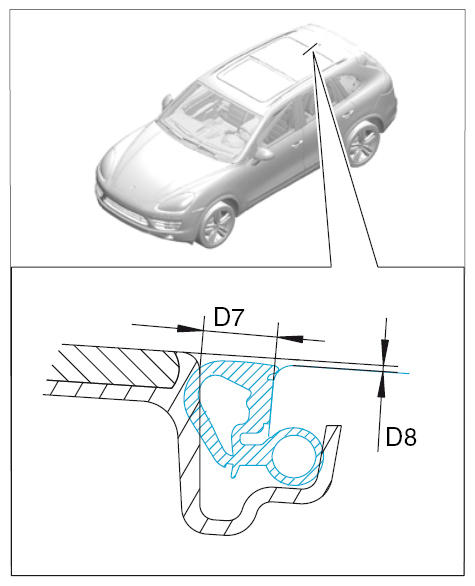

Fig 5: Identifying Rear Lid To Roof Dimension

G09938052

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.8 mm+/-1 mm

Fig 6: Identifying Rear Lid To Roof Dimension

G09938053

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
