Gap Dimensions Of Headlights

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 4 mm+/-1 mm

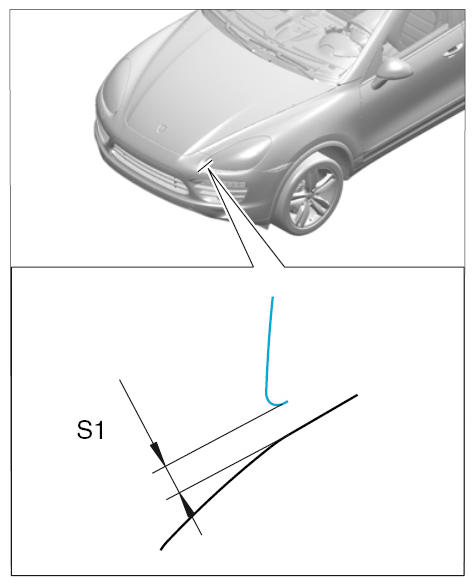

Fig 1: Identifying Headlight To Front Apron Dimension

G09937993

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3.6 mm+/-0.5 mm

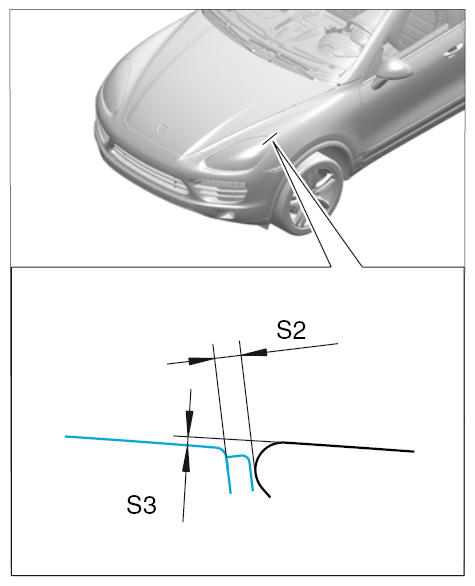

Fig 2: Identifying Headlight To Top Of Wing Dimension

G09937994

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1.2 mm+/-0.5 mm

Fig 3: Identifying Headlight To Top Of Wing Dimension

G09937995

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3.2 mm+/-0.5 mm

Fig 4: Identifying Headlight To Inner Wing Dimension

G09937996

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.7 mm+/-0.5 mm

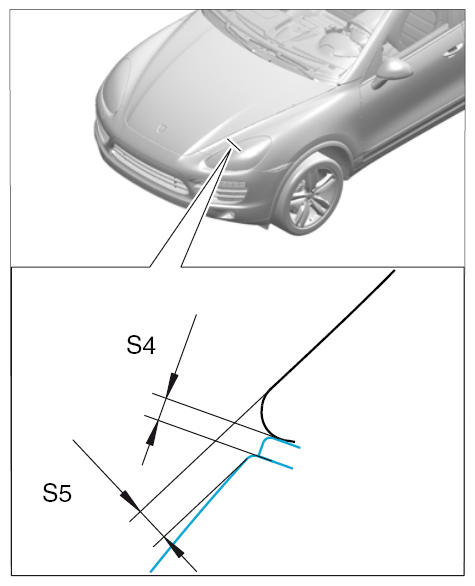

Fig 5: Identifying Headlight To Inner Wing Dimension

G09937997

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3.2 mm+/-0.5 mm

Fig 6: Identifying Headlight To Outer Wing Dimension

G09937998

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3 mm+/-0.5 mm

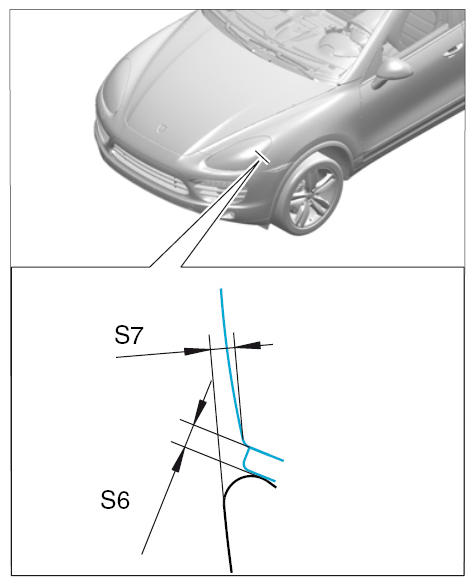

Fig 7: Identifying Headlight To Outer Wing Dimension

G09937999

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
