Gap Dimensions Of Front Wing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 4 mm+/-1 mm

Fig 1: Identifying Lid To Wing Dimension

G09938000

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+/-0.5 mm

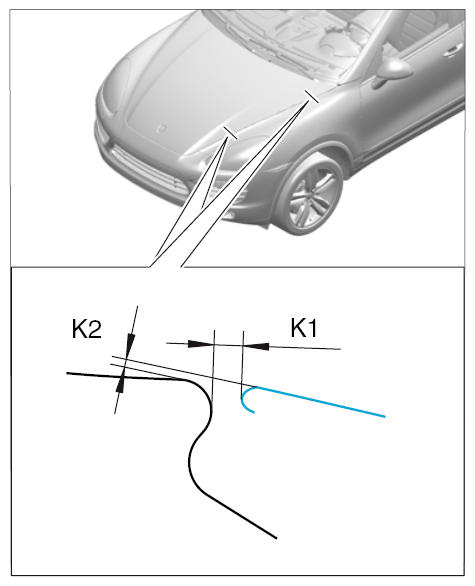

Fig 2: Identifying Lid To Wing Dimension

G09938001

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 3.7 mm+/-0.5 mm

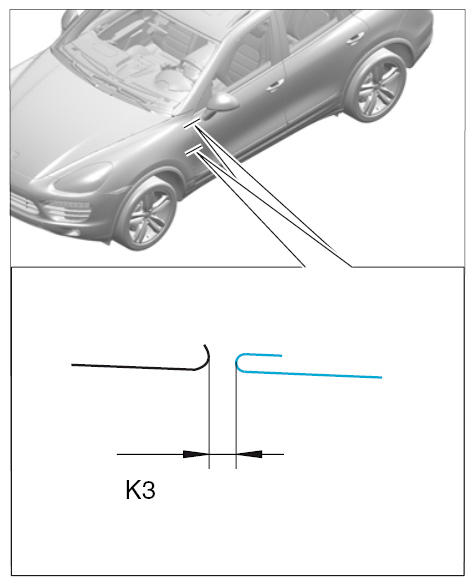

Fig 3: Identifying Wing To Door Dimension

G09938002

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+1 mm

Fig 4: Identifying Wing To Door Dimension

G09938003

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2.4 mm+/-1 mm

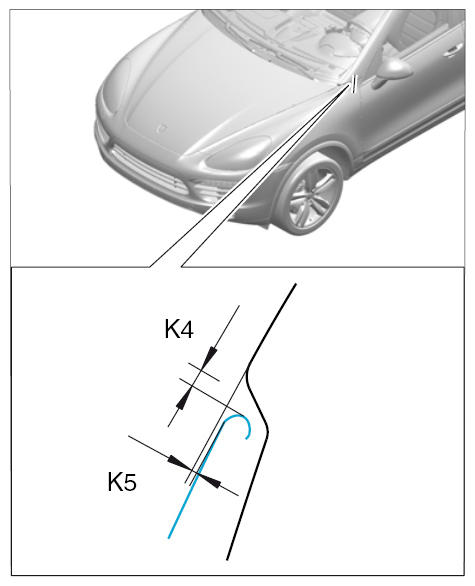

Fig 5: Identifying Wing To A-Pillar Dimension

G09938004

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1 mm+/-1 mm

Fig 6: Identifying Wing To A-Pillar Dimension

G09938005

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 2.3 mm+/-1 mm

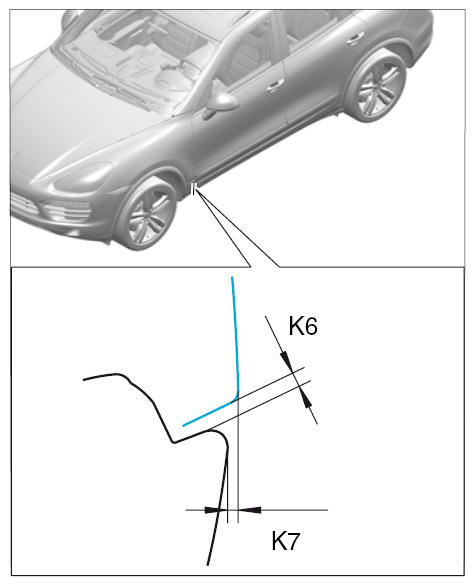

Fig 7: Identifying Wing Trim Panel To Door Entry Guard Dimension

G09938006

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1.6 mm+/-0.7 mm

Fig 8: Identifying Wing Trim Panel To Door Entry Guard Dimension

G09938007

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 5.2 mm+/-0.8 mm

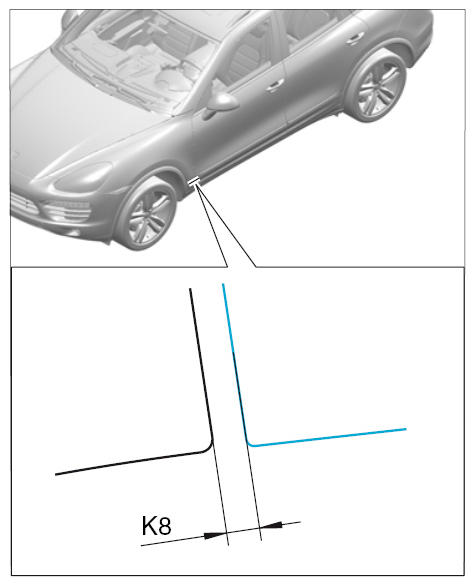

Fig 9: Identifying Wing Trim Panel To Door Panel Dimension

G09938008

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0 mm+0.5 mm-1.5 mm

Fig 10: Identifying Wing Trim Panel To Door Panel Dimension

G09938009

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
