Gap Dimensions Of Door Entry Guard

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

→ Gap dimension: 2.3 mm+/-1 mm

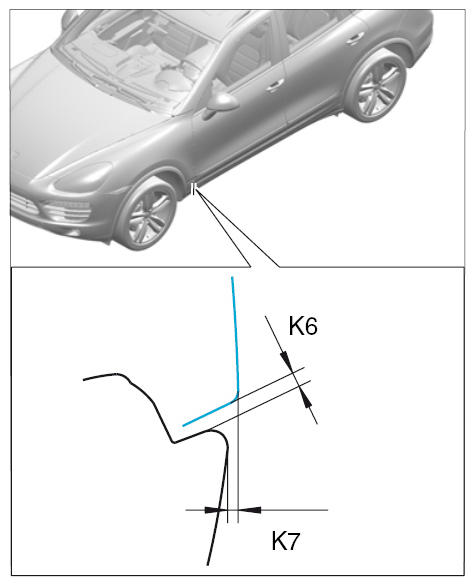

Fig 1: Identifying Wing Trim Panel To Door Entry Guard Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 1.6 mm+/-0.7 mm

Fig 2: Identifying Wing Trim Panel To Door Entry Guard Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 4.8 mm+/-1.5 mm

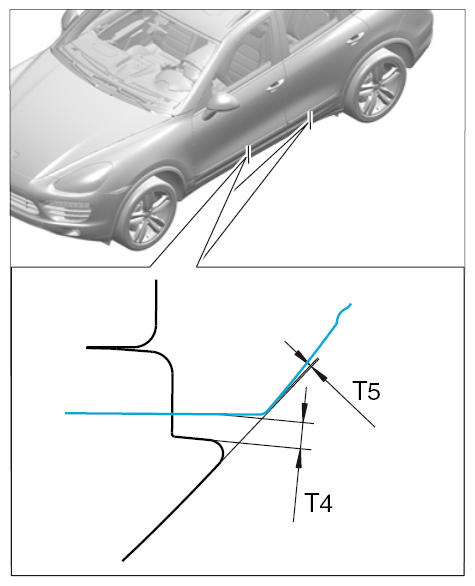

Fig 3: Identifying Door Panel To Door Entry Guard Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Gap dimension: 0.3 mm+0.5 mm-1.5 mm

Fig 4: Identifying Door Panel To Door Entry Guard Dimension

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
