Installation Position Of Head Airbag Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

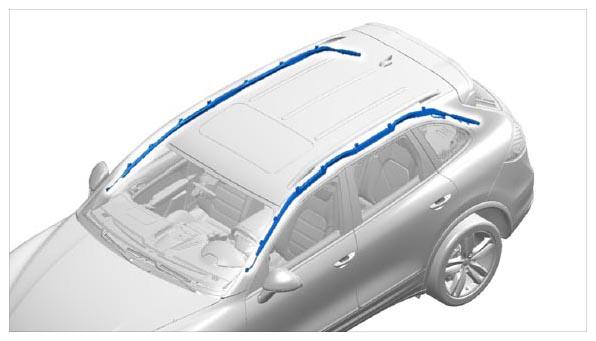

Fig 1: Identifying Head Airbag Unit Installation Position
G09940578Courtesy of PORSCHE CARS NORTH AMERICA, INC.
