Removing Side Airbag

→ Switch off ignition and remove ignition key or remote control (hand-held transmitter).

→ A power supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

→ Wait 1 minute after disconnecting the battery.

→ Only pull off connector on the triggering unit after the waiting time has elapsed.

→ Make sure that no foreign objects are located in front of the airbag unit during installation.

→ Replace damaged parts during removal.

→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

→ Do not position anything on the airbag units.

→ If removed for an extended period, the airbag units must be stored in a safe place.

→ Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.

→ Do not expose airbag units to temperatures above 90°.

→ Do not remove the short-circuit spring on the plug-in contacts.

→ Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.

→ Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

Information

If a new component (e.g. sensor, airbag control unit, airbag unit) of the airbag system has to be installed, the new component will be supplied with a barcode sticker (tear-off label).

Fig 1: Locating Tear-Off Label On Airbag Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• Tear off the tear-off label -2- on the new component -1- and stick it under the heading Proof of airbag system check/component replacement in the Guarantee and Maintenance booklet.

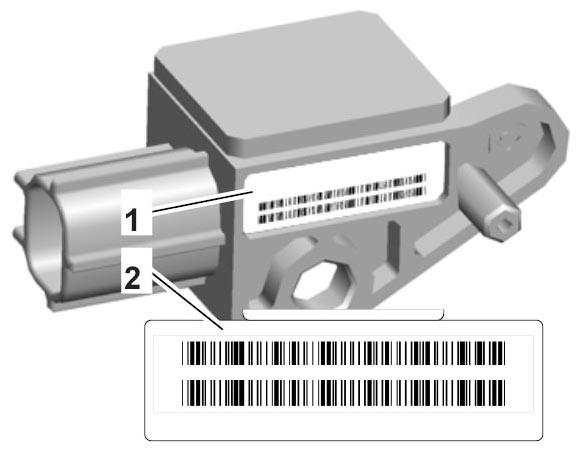

  Fig 2: Identifying Tear-Off Label On Airbag Control Unit

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• The replacement date and current mileage must be documented and the booklet must be stamped with the Center's stamp.

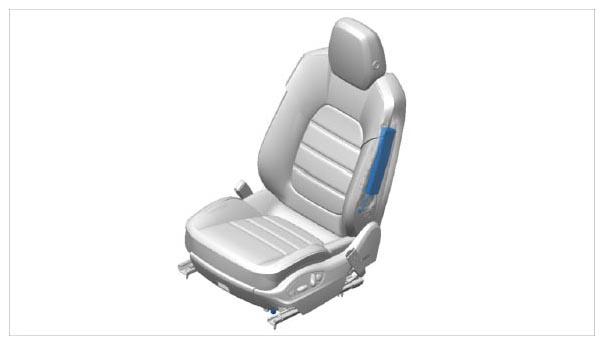

Fig 3: Identifying Side Airbag Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Fold away padding for front backrest at the outer side bolster. → REMOVING PADDING FOR FRONT BACKREST - section on "Removing"
2. Unscrew fastening screw -2-  on side airbag -1-  .

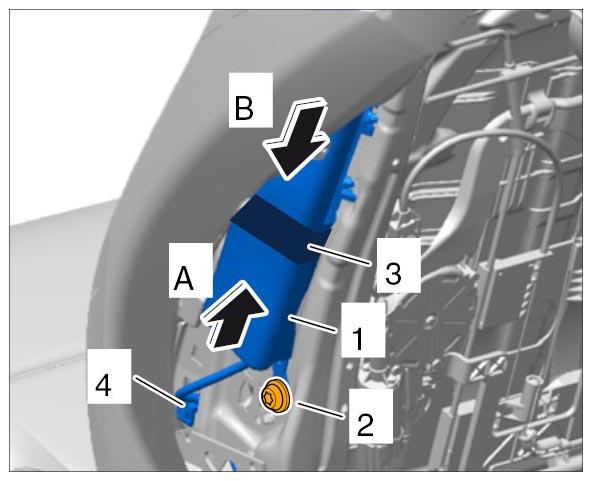

   Fig 4: Removing Side Airbag

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Slide the side airbag -1-  up out of the bracket -A-  and remove it from the loop -3-  (-B-  ).
   1. 3.1. On vehicles from model year 2011 to 2014, there is a possibility that the backrest padding will no longer have a loop -3-  .

      If a new backrest padding is installed, it will no longer have a loop -3-  .

4. Loosen the fixing clip -4-  .
5. Loosen tie-wrap -1-  on the seat wire harness and pull the line through the protective sleeve.

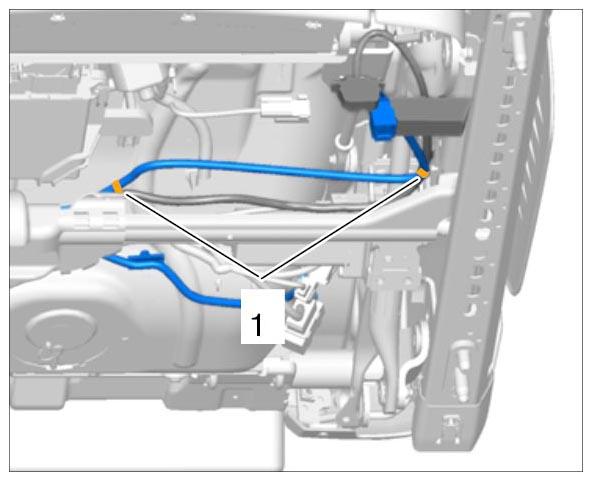

   Fig 5: Identifying Line From Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Loosen fixing clips -1-  under the seat.

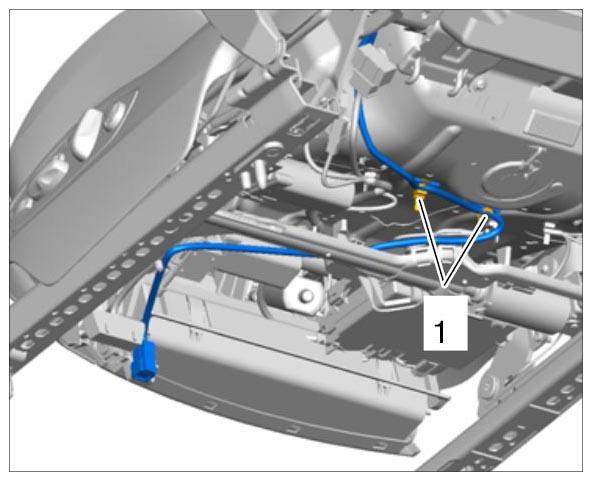

   Fig 6: Identifying Fixing Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Pull line for side airbag through to the backrest.
